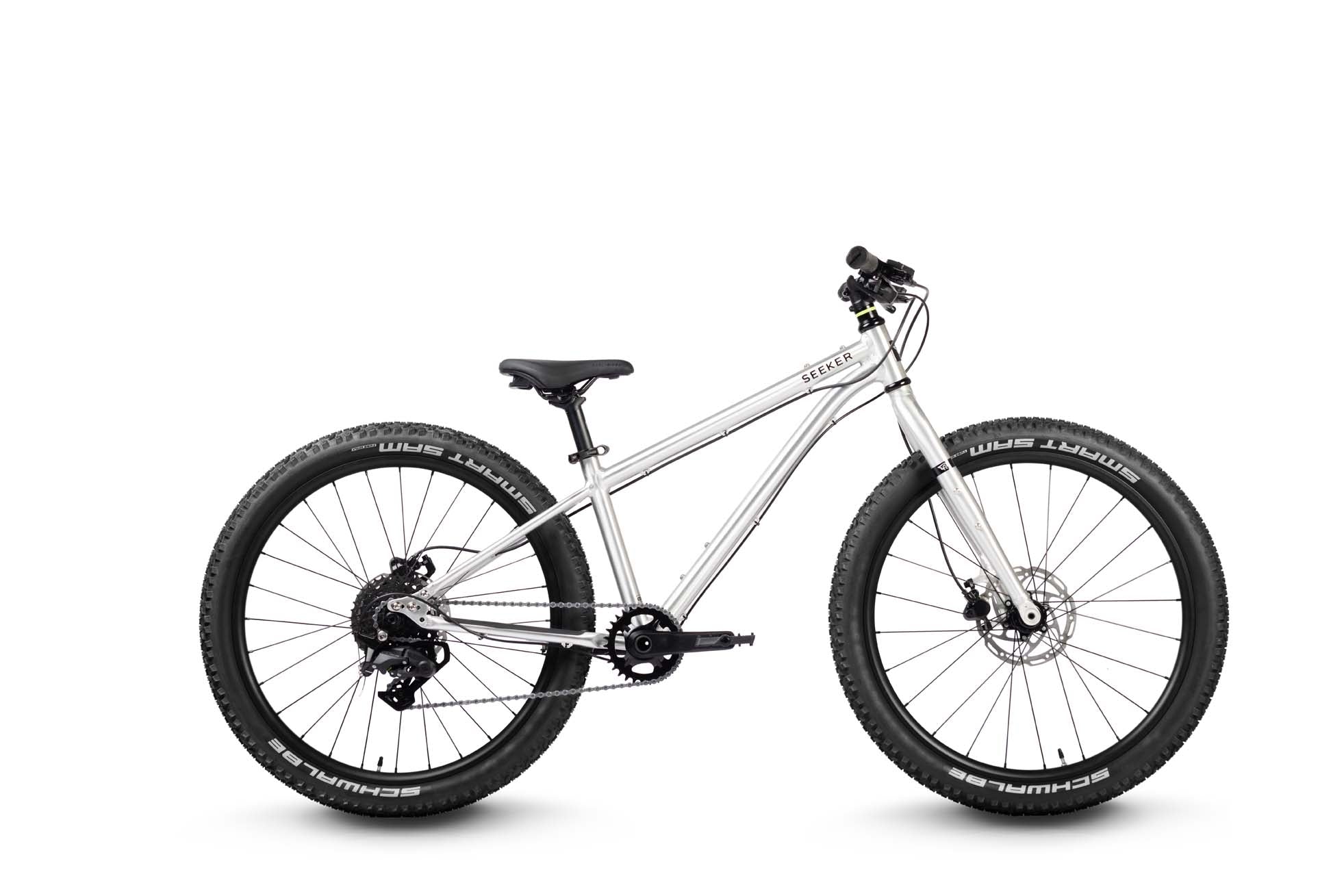

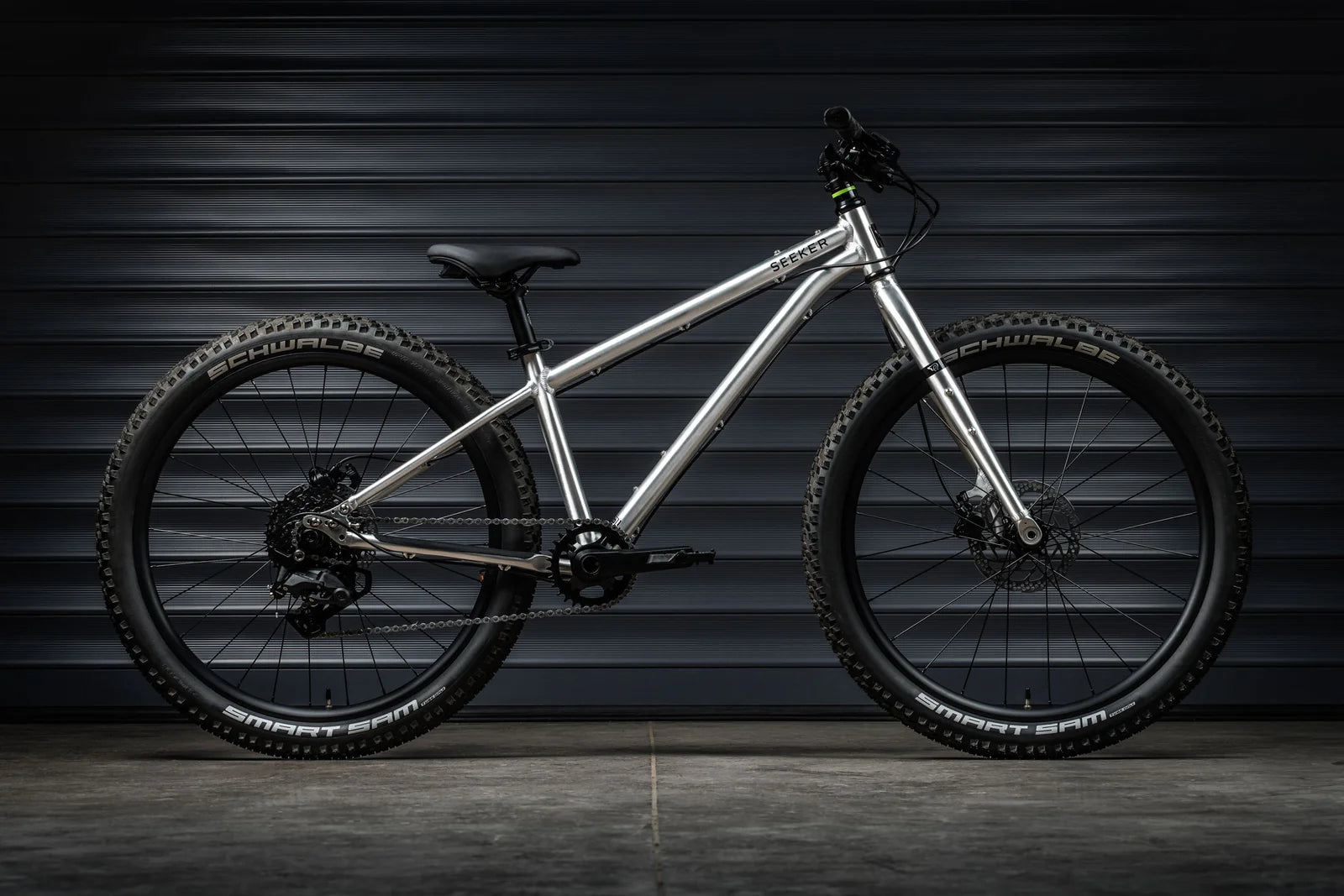

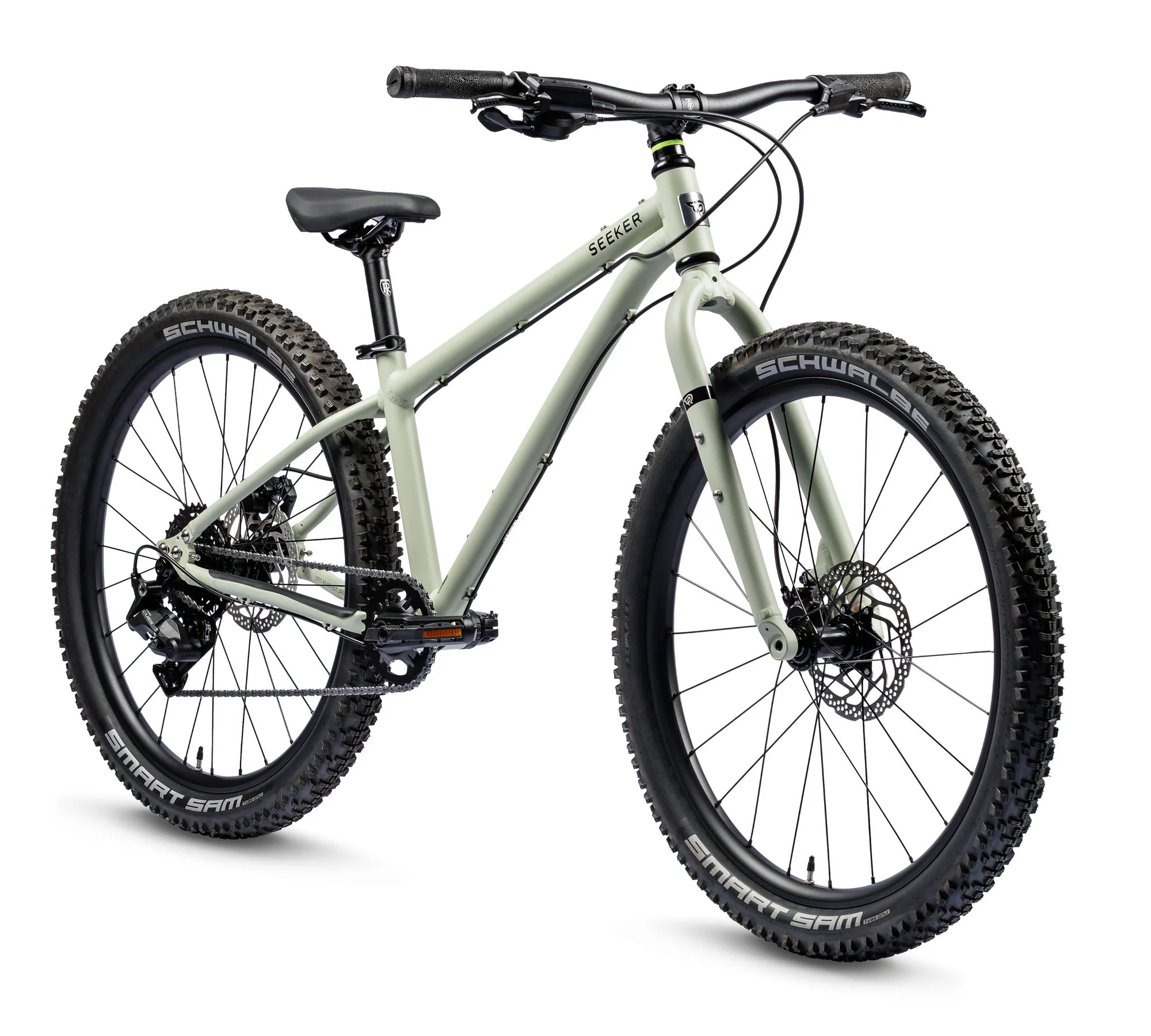

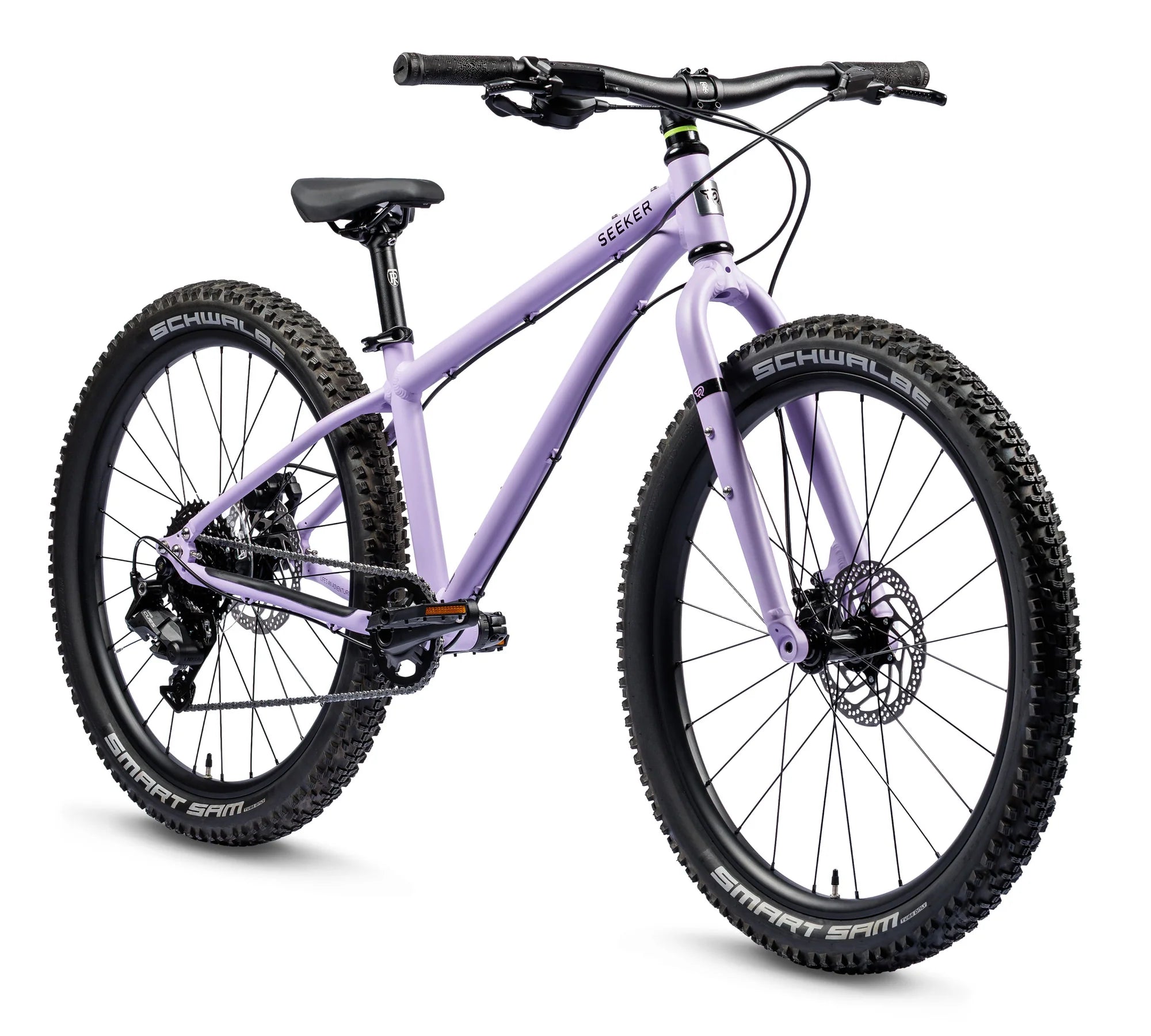

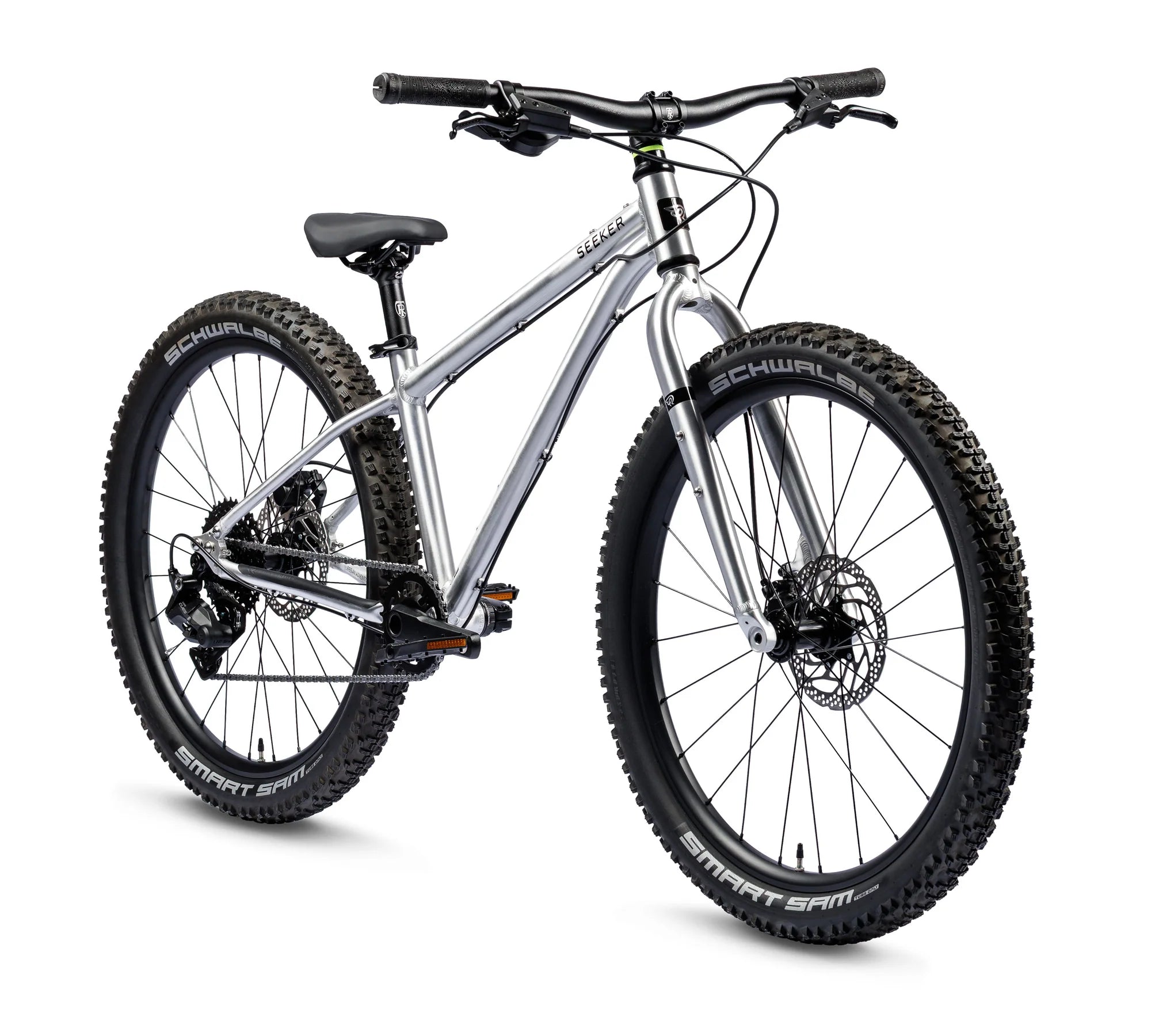

Early Rider Seeker 24" Kids Mountain Bike

Adventuring.

Built to handle off-road adventures with ease and a confident ride on varied terrain. The Seeker 24 comes equipped with a Shimano CUES 1x9 drivetrain with a light-action thumb shifter ensures smooth, responsive shifting, while the 130mm crankarms offer efficient pedalling. Setup with powerful Tektro hydraulic disc brakes, sealed bearing wheels with bolt-thru axles and Schwalbe Smart Sam 2.3" tires, this bike is ready for anything from light trails to full on off-road adventures.

Assembly instructions

Your bike will arrive carefully packaged and boxed with the front and rear wheel detached. Attach both wheels using the skewers supplied and install the gearing mechanism. The handlebar will be zip tied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.

Key features

Frame: Hand brushed AL6061, forged sliding drop outs
Fork: Hand brushed AL6061, forged drop outs

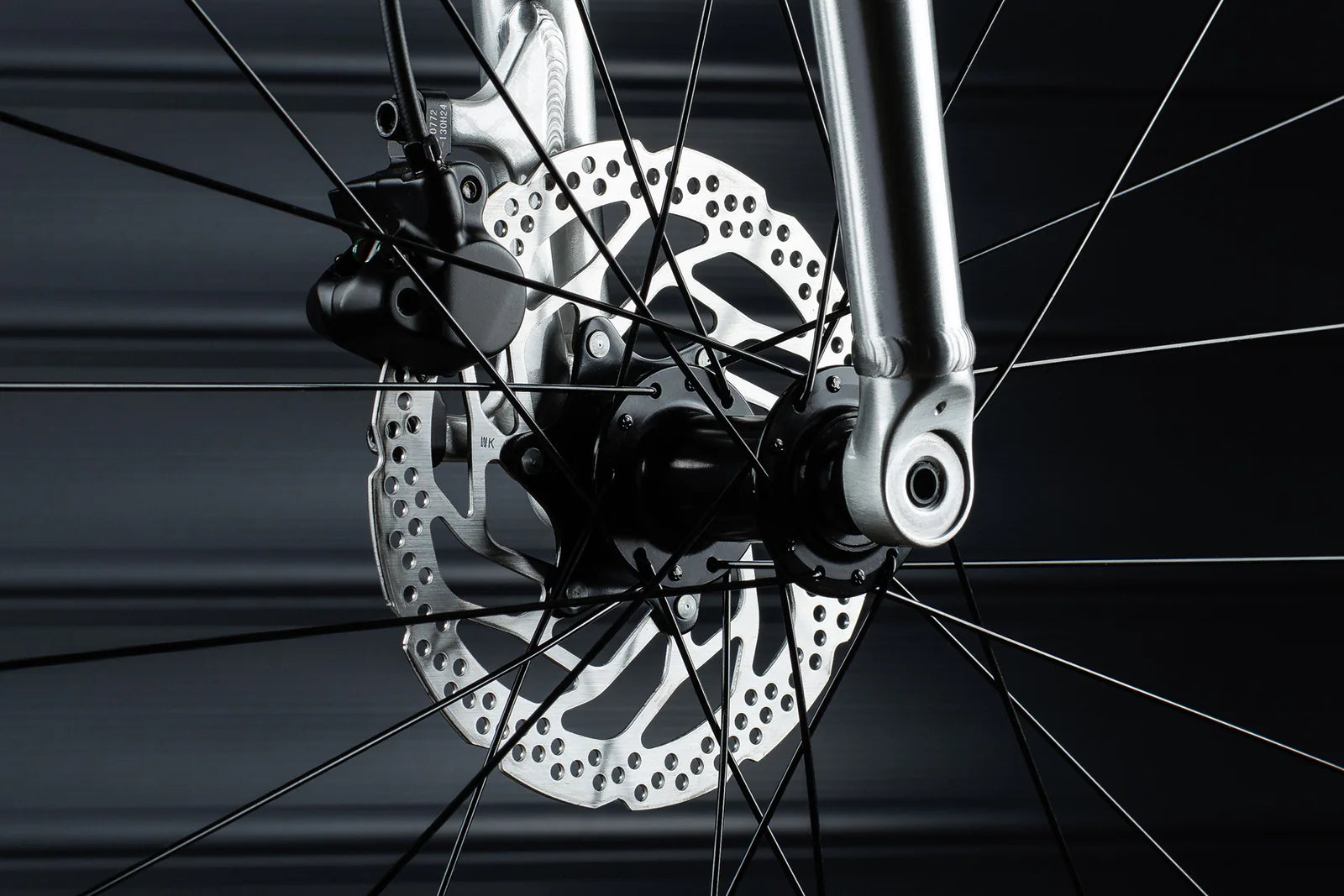

Brakes: Tektro hydraulic jr, 160mm rotors
Tyres: Schwalbe Smart Sam 24 x 2.35", 67TPI WB
Weight: 10.3kg w/o pedals

Specifications

Frame: Hand brushed AL6061, forged sliding drop outs
Fork: Hand brushed AL6061, forged drop outs
Steerer: Tube AL6061
Cranks: Samox 150mm direct mount, nqf
Pedals: ER works platform, CNC'd AL6061, studded, cartridge bearing
Bottom bracket: Samox 24mm external cup, sealed cartridge
Rims: 24 X 28H, double walled AL6061, tubeless compatible
Rear hub: ER 4 bearing cassette freehub, CNC'd AL6061
Front hub: CNC'd 6 bolt disc, AL6061, QR skewer
Axles: AL6061
Chain: KMC eGLIDE
Chainring: Direct mount, narrow wide 30T, steel
Weight: 10.3kg w/o pedals
Rear cassette: Shimano 9-speed 11-36T
Brakes: Tektro hydraulic jr, 160mm rotors
Levers: Tektro short reach

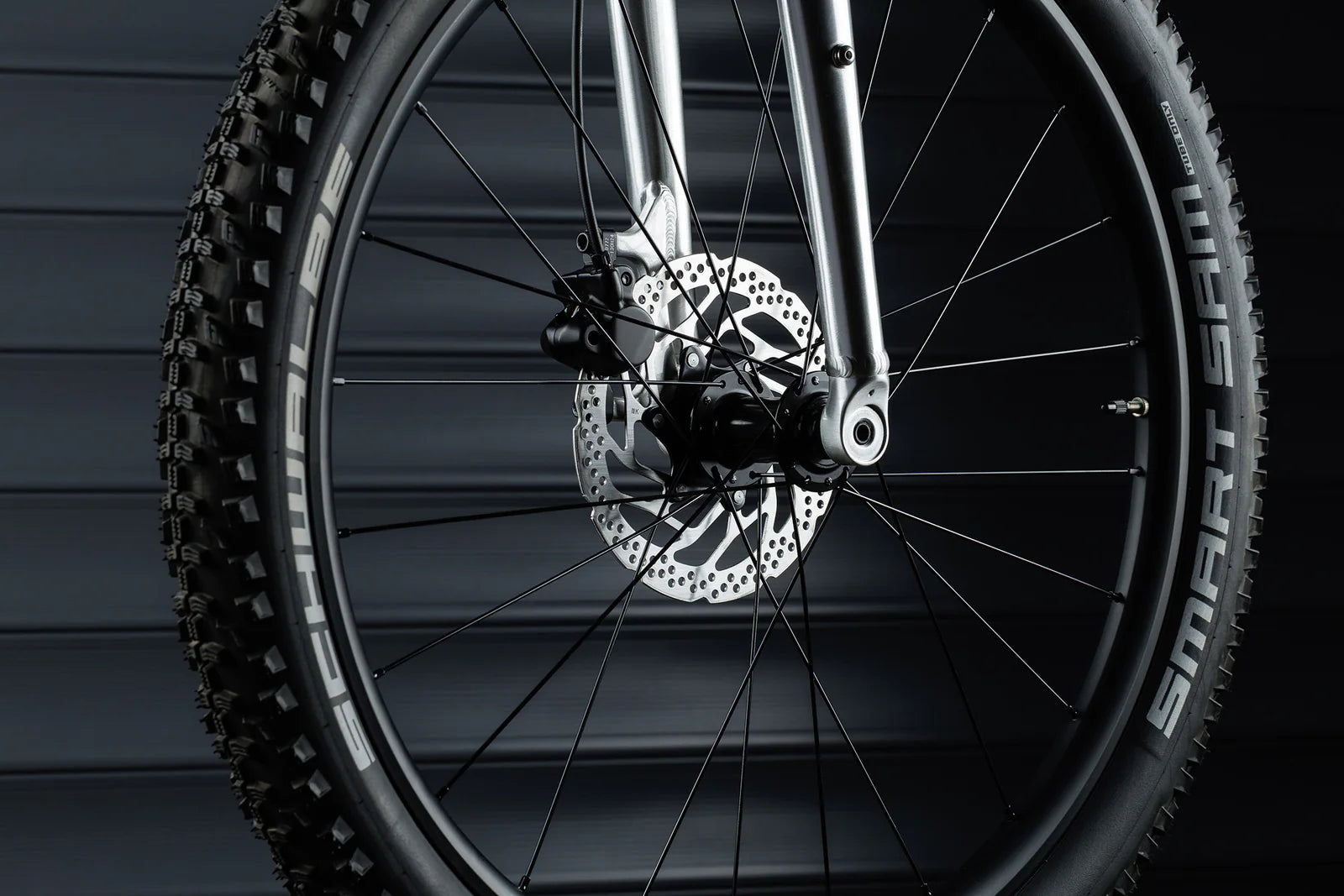

Front tyre: Schwalbe Smart Sam 24 x 2.35", 67TPI WB
Rear tyre: Schwalbe Smart Sam 24 x 2.35", 67TPI WB
Headset: 1 1/8” cartridge bearing, conventional
Stem: Forged AL6061, 35mm reach
Bars: 640mm double butted AL6061, 18mm rise
Grips: ER lock on kraton 115mm
Seat post: AL6061, 27.2mm x 350mm
Saddle: ER wing 2, black
Seat clamp: ER QR, 31.8mm

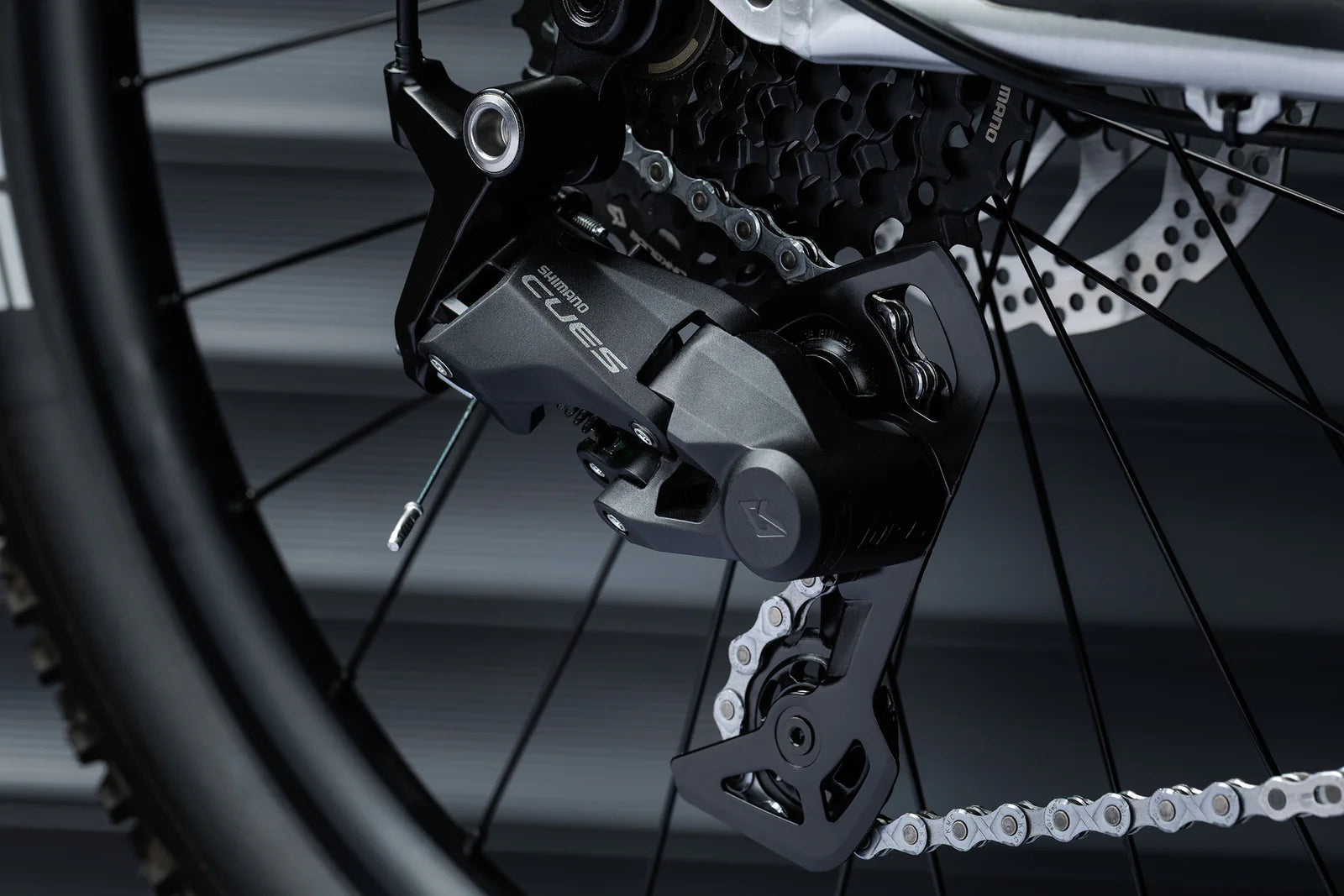

Derailleur: Shimano cues 9-speed mech

Geometry

Wheelbase: 992.2mm
Head Angle: 67°
Seat Tube Length: 320mm
Chainstay Length: 392mm
Seat Tube Angle: 73°
Standover Height: 600mm
Top Tube Length: 513.5mm
Head Tube Length: 92mm
Stack: 497.3mm
Reach: 361.5mm
Fork Length: 410mm

View the user manual (PDF)
