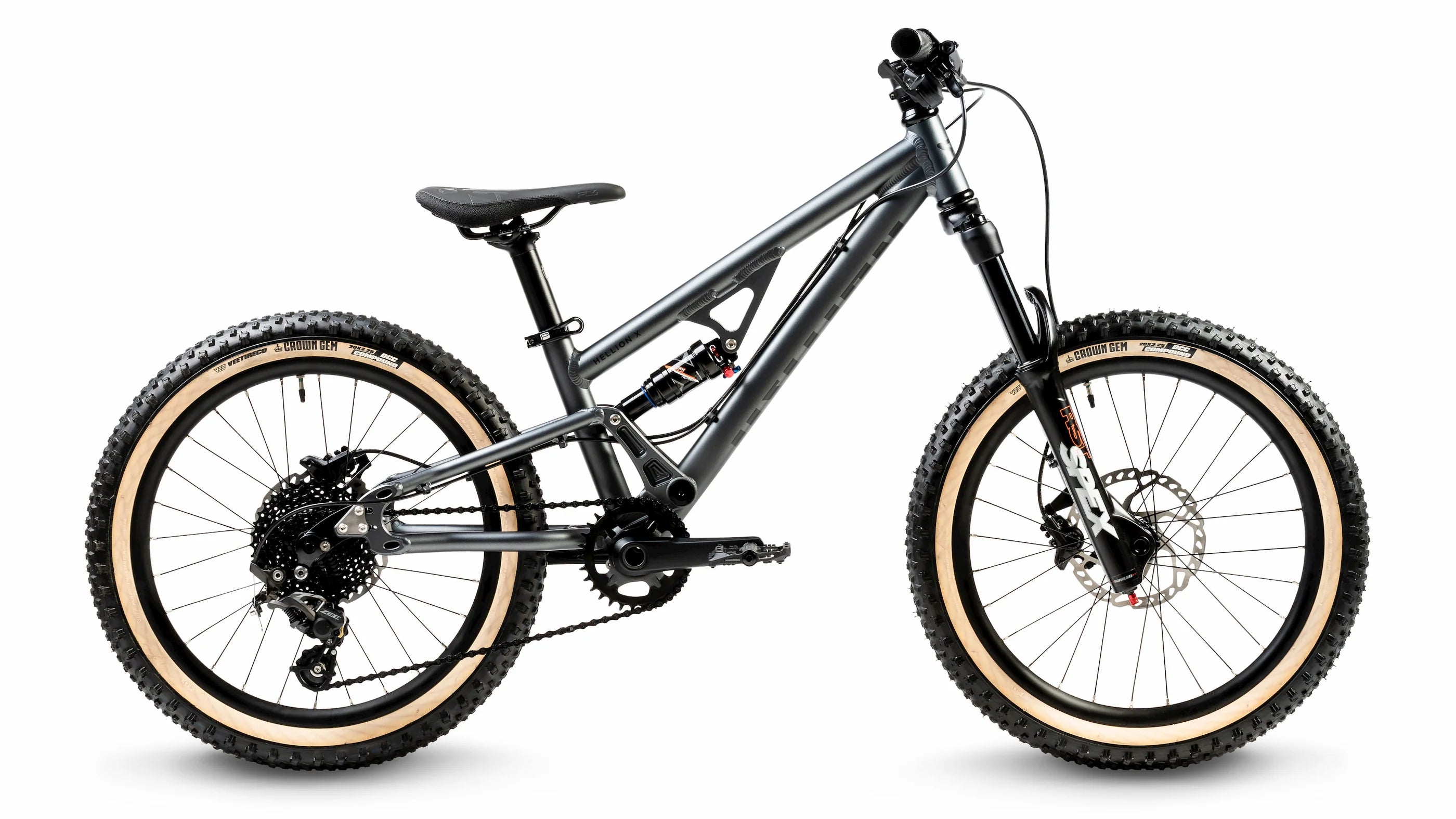

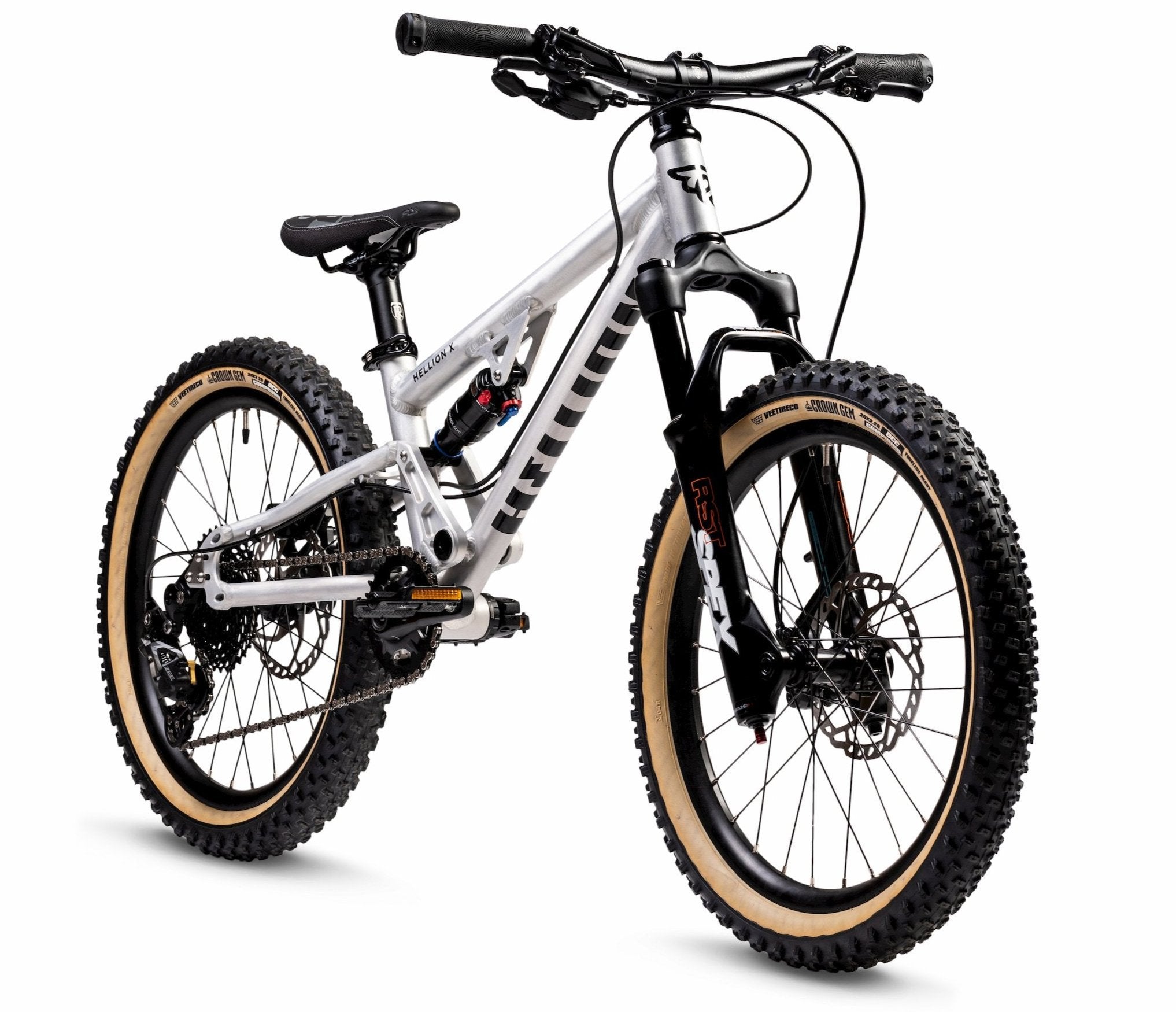

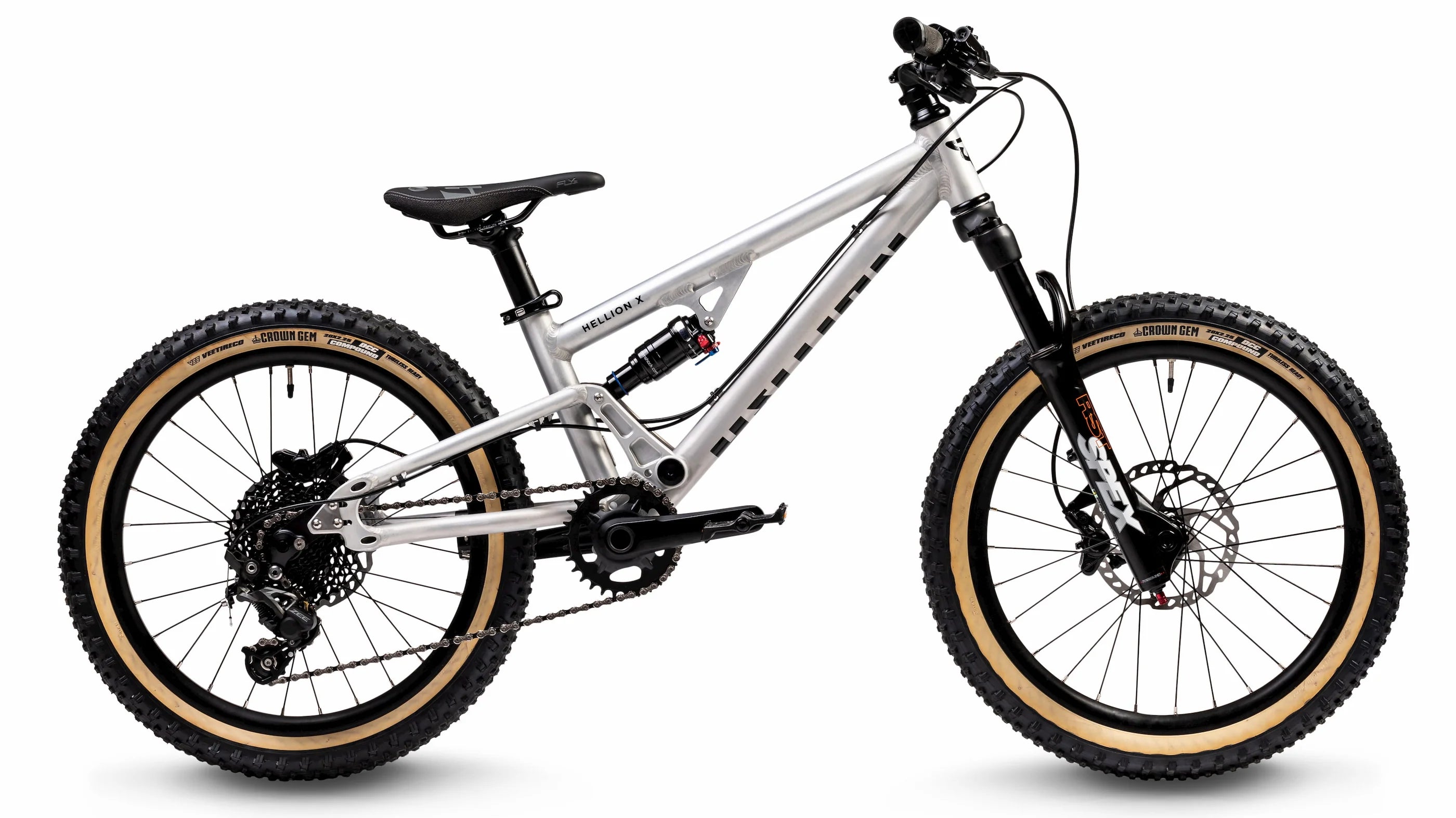

Early Rider Hellion X20 Kids Full Suspension Mountain Bike (MY24/25)

Hellion X Lil Shredder

If you're introducing your young prodigy to the bike park, look no further. Developed in collaboration with Lil Shredder, the pioneers of the junior competitive scene, this bikes cashes in on an unrivalled 9 year legacy. Raced and refined by the who's who of the best young riders tearing up the very toughest terrain Whistler has to offer; this bike will see your little shredder progresses faster than you could have imagined

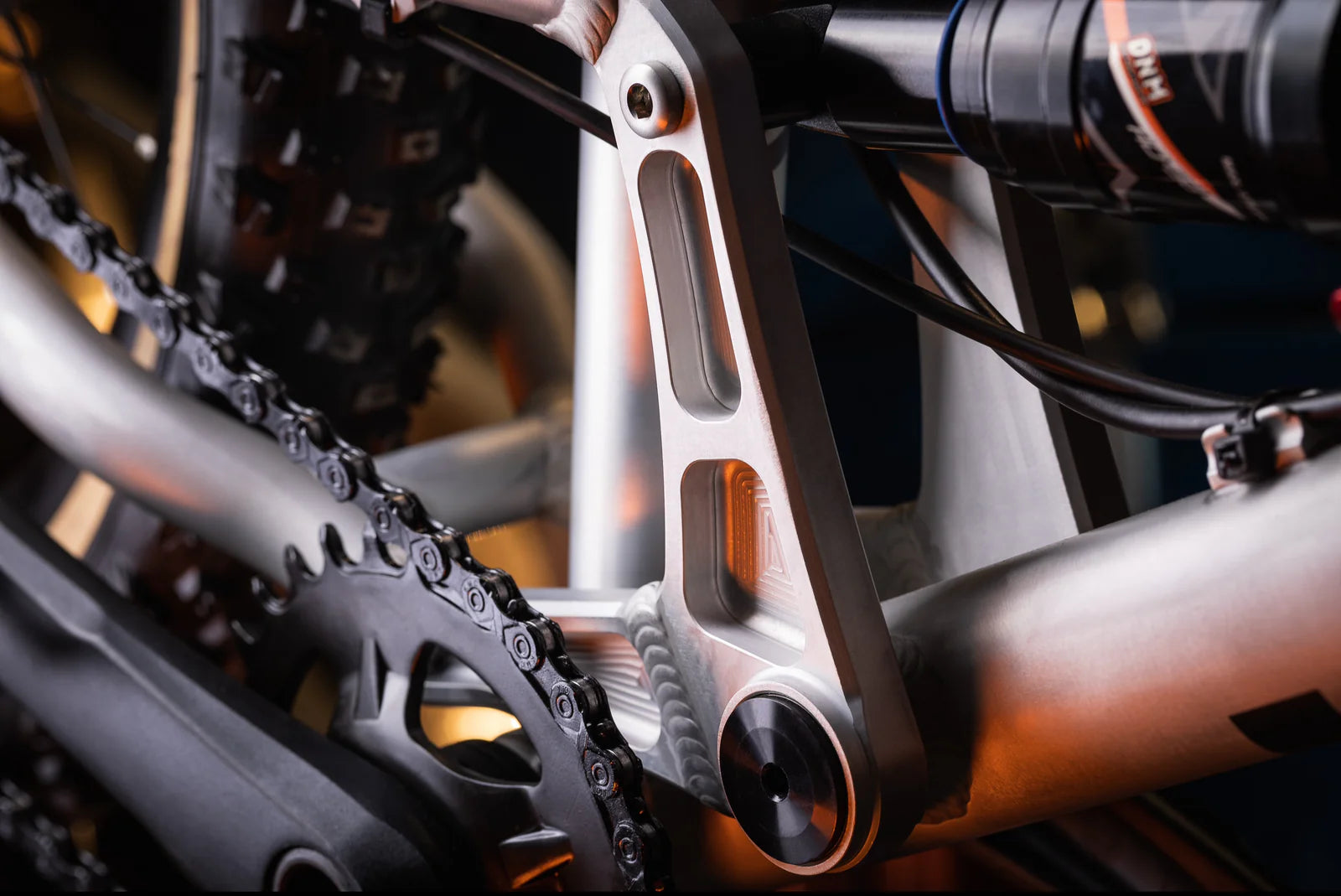

The frameset - built from a combination of 6061 and 6066 tubing and fully CNC’d linkage plates and dropouts ensure incredible build strength and quality. Welded by one of the best frame makers in the business. It features 4” of travel with the 20” setup. Customised RST spex forks give 100mm of plush and reliable front wheel travel. The unique DNM shock boasts all the features you need for a bike like this, rebound adjust and a pedal platform to make pedaling a bit easier on the legs.

The balance of the component choice mimics our hellion 20 trail bikes; tubeless compatible wheelset with folding bead Vee Crown Gem tyres (& space in the frame up to 2.4”). A 10 speed one by drivetrain with a notable 11-36T gear range, short reach stem, butted 560mm riser bars, lock on grips and some of the lightest actuating hydraulic brakes available... a very serious piece of kit.

Key features

Frame: Butted alloy frame, 95mm travel
Fork: RST spex 100mm travel, 15mm bolt thru axle
Shifter: SRAM GX trigger rh 10SPD
Brakes: Shimano Deore BR-MT500, 160mm RT66 rotors
Tyres: Vee Crown Gem skinwall 20 x 2.25", 72TPI folding, tr
Weight: 10.15kg w/o pedals

Specifications

Frame: Butted alloy frame, 95mm travel
Rear shock: Dnm AO-38RC, 152X25.4mm rebound adjust, pedal platform
Fork: RST spex 100mm travel, 15mm bolt thru axle
Steerer: Tube AL6061
Cranks: Samox 127mm direct mount
Pedals: Sdg slater 90 pedals, black
Bottom bracket: Samox external cup, threaded, sealed cartridge bearing
Rims: 20 X 28H double walled AL6061, pinned, tubeless compatible
Rear hub: CNC'd straight pull AL6061, 12 x 142 thru axle
Front hub: CNC'd straight pull AL6061, 15 x 100mm thru axle
Axles: Thru axles AL7075, 15mm front, 12X142mm rear (1.0P)
Chain: KMC X10
Chainring: Samox offset narrow wide, steel, 30T
Weight: 10.15kg w/o pedals
Shifter: SRAM GX trigger rh 10SPD
Rear cassette: SRAM PG1020 11-36T, 10SPD
Brakes: Shimano Deore BR-MT500, 160mm RT66 rotors
Levers: Shimano Deore BL-MT501
Front tyre: Vee Crown Gem skinwall 20 x 2.25", 72TPI folding, tr
Rear tyre: Vee Crown Gem skinwall 20 x 2.25", 72TPI folding, tr
Headset: ER conventional headset, 1 1/8” cartridge bearing
Stem: Ritchey OS forged AL6061, 35mm reach
Bars: 560mm Ritchey OS double butted AL6061, 18mm rise
Grips: ER lock on kraton 92mm
Seat post: Ritchey, 30.9mm x 225mm, AL2014
Saddle: Sdg fly jr, black
Seat clamp: Ritchey QR, 34.9mm
Derailleur: SRAM GX 10SPD short cage

Geometry

Wheelbase: 930mm
Head Angle: 66°
Seat Tube Length: 265mm
Chainstay Length: 355mm
Seat Tube Angle: 68°
Standover Height: 520mm
Top Tube Length: 514mm
Head Tube Length: 90mm
Stack: 442mm
Reach: 317mm
Fork Length: 423mm

View the user manual (PDF)

Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice
