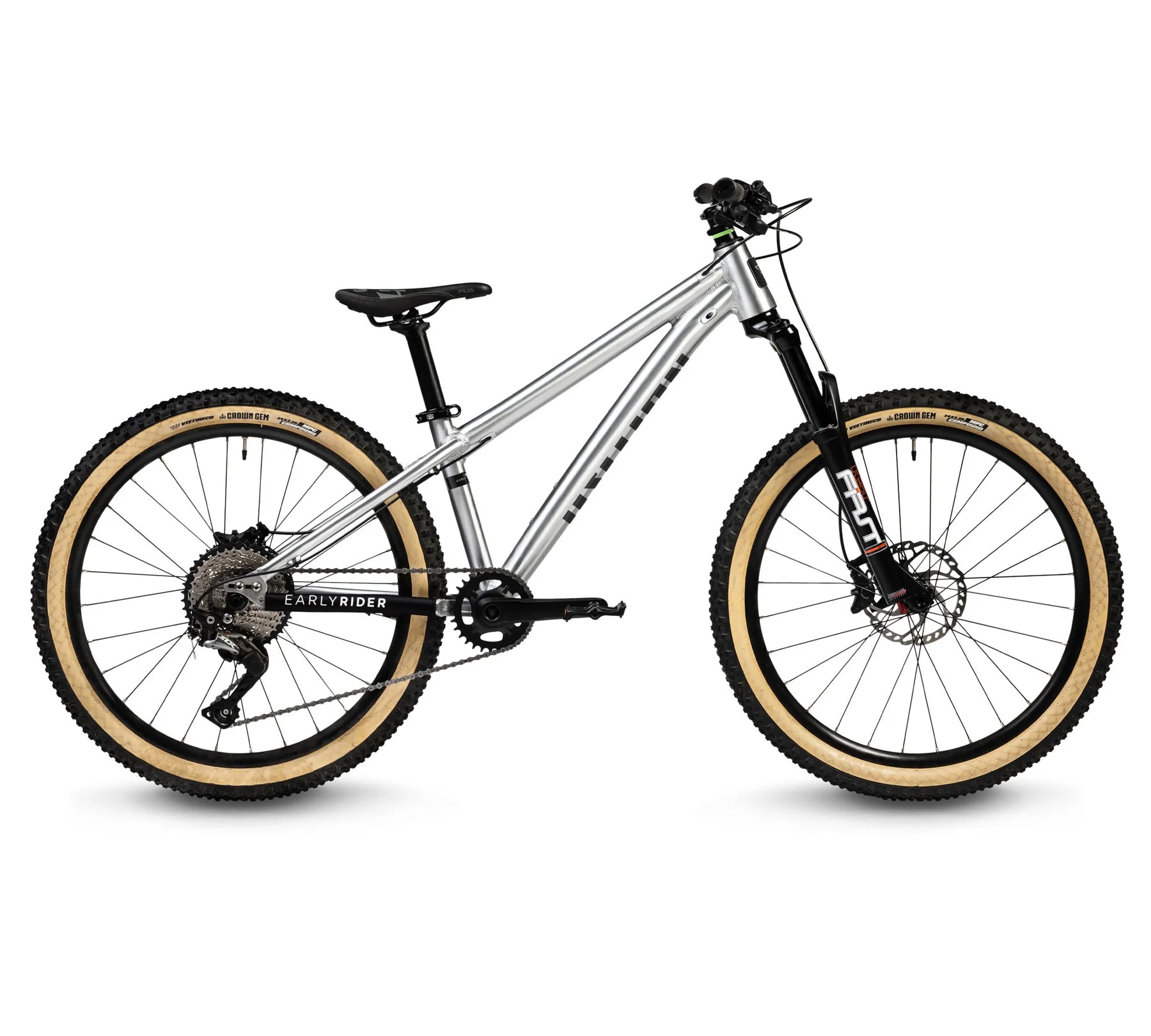

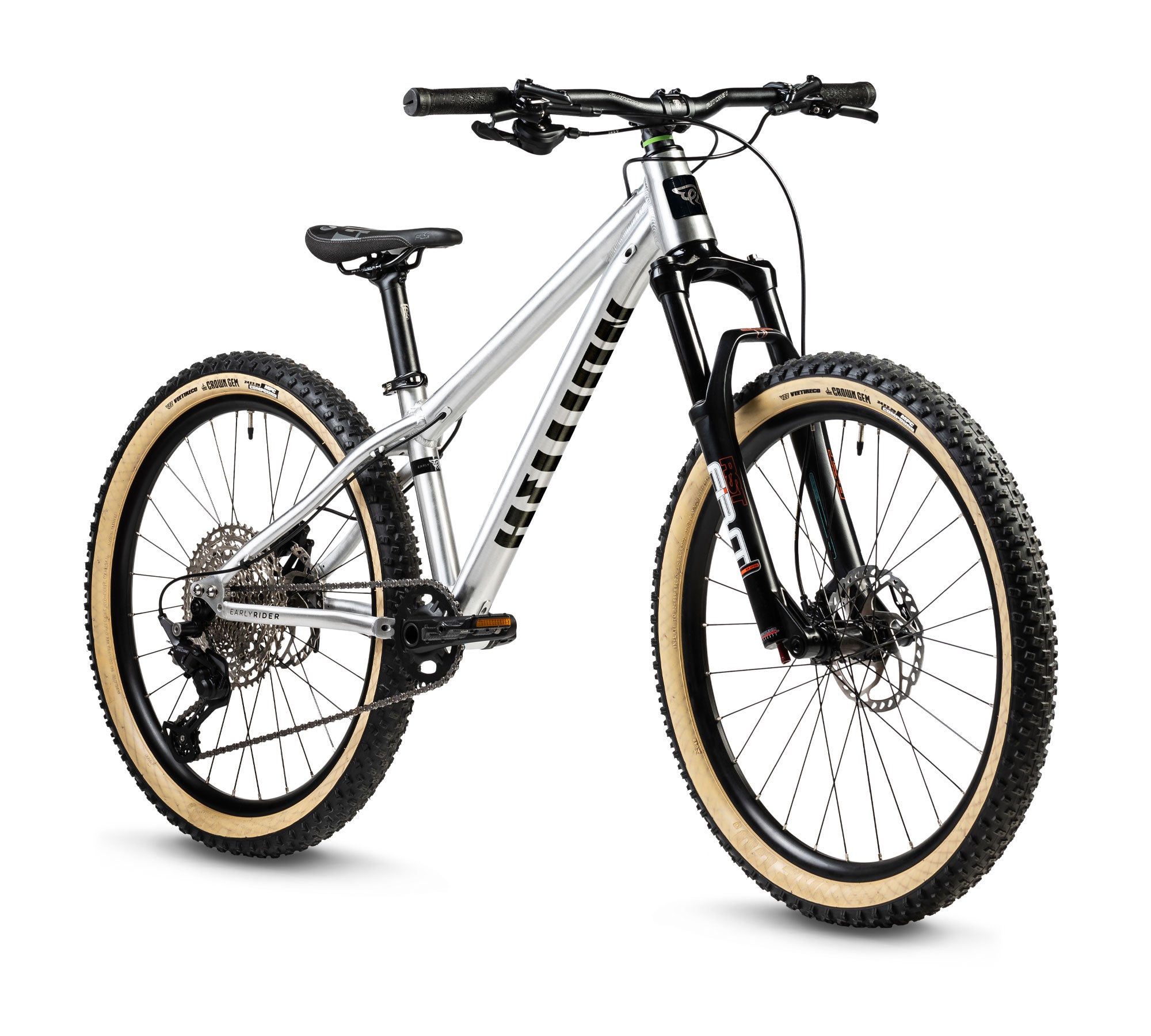

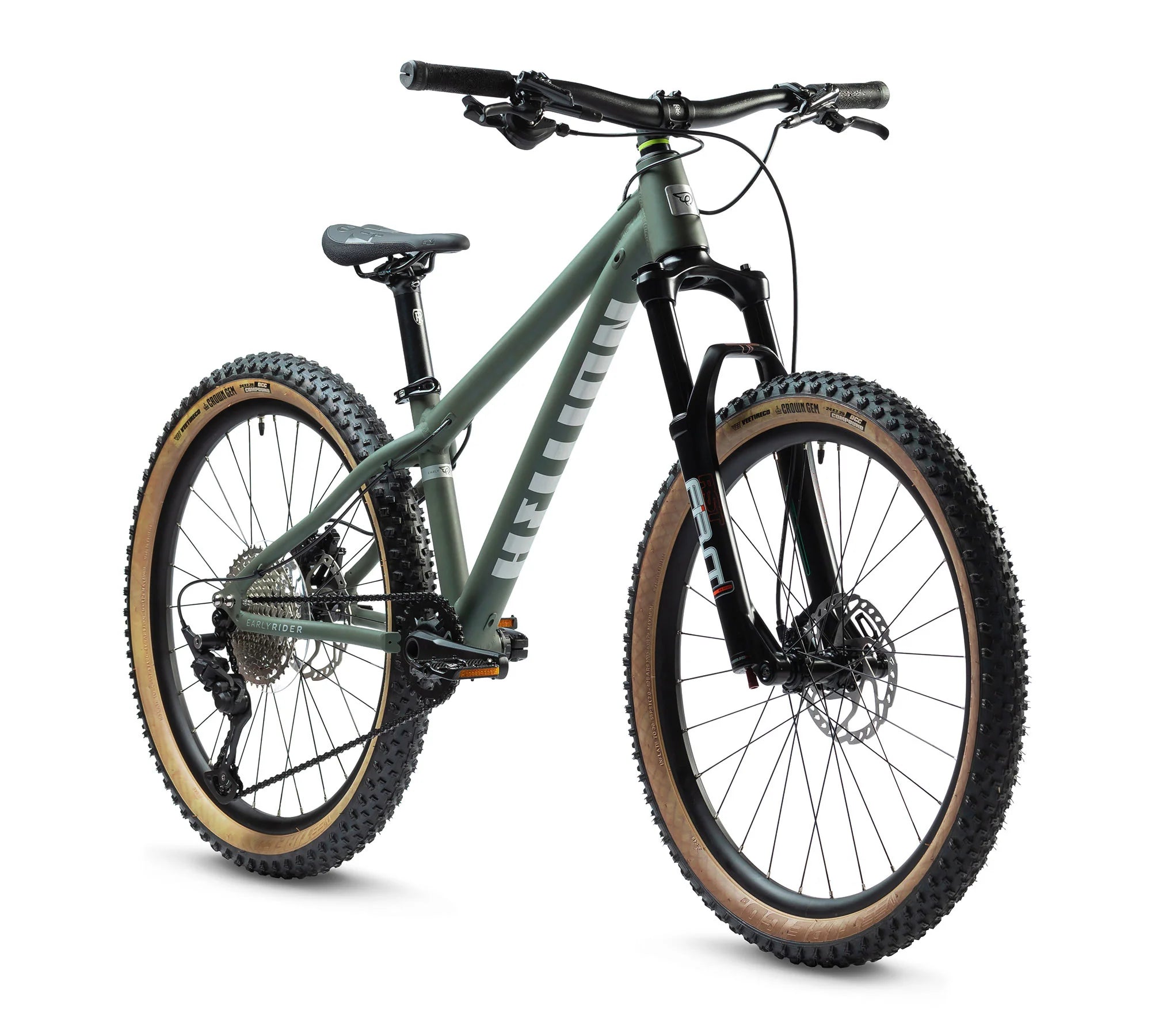

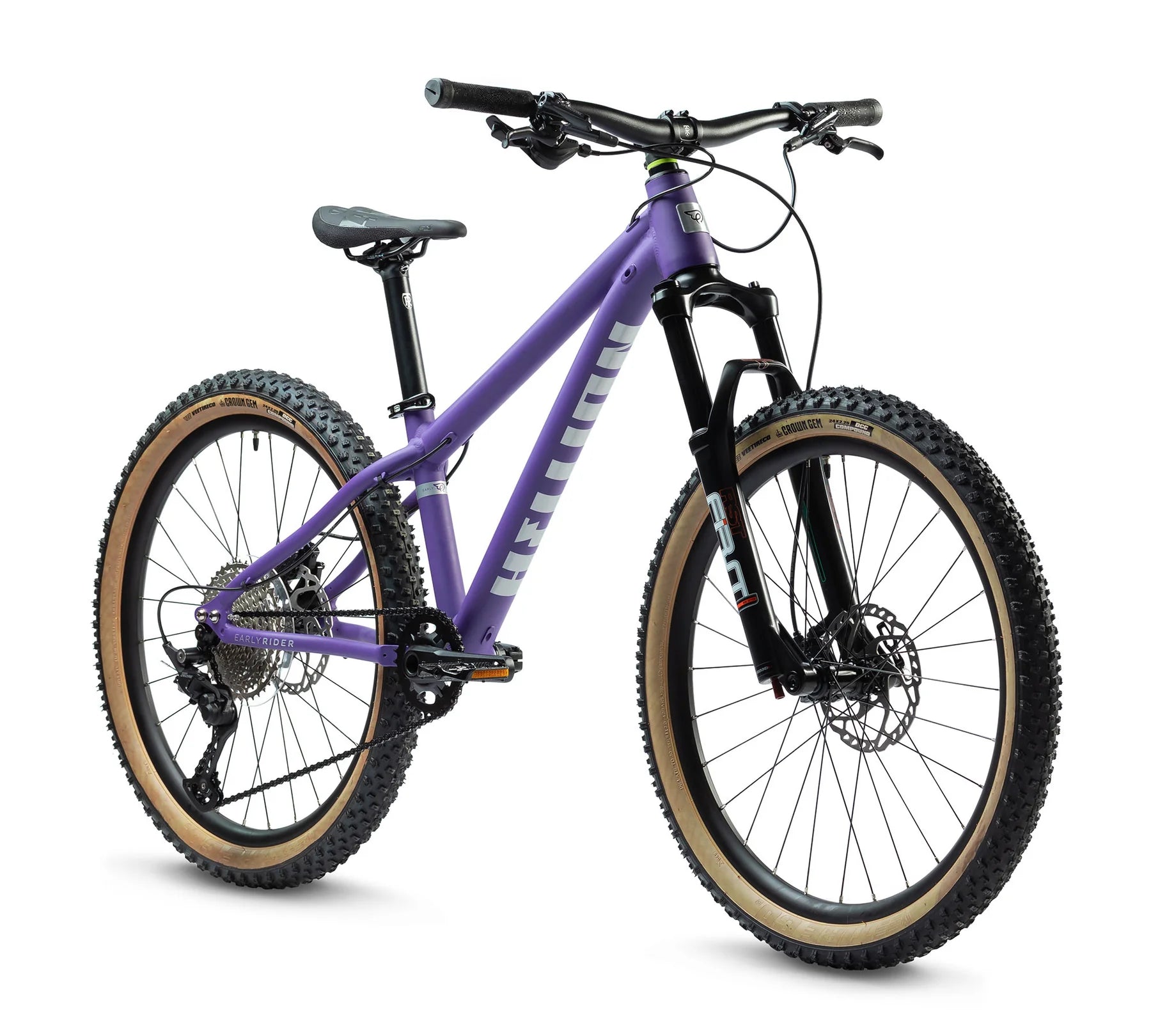

Early Rider Hellion 24" Kids Mountain Bike (MY24/25)

Go all out. All of the time.

For an increasing number of little shredders, high performance bikes are critical to their development. The technicality they are looking to achieve is already far beyond the the realms of normal kids bikes. To give them the performance that matched their capabilities, something special was needed. Our Hellion range is that special something and our 24 is our flagship, race ready hard tail.

Progressive geometry combines with meticulous manufacturing. The Hellion 24 frame is made with triple butted tubing and is mitred by CNC machines. The clean, simple lines belie the detail: internal cabling, dropper ready, sliding drop outs, a tapered headset and a CNC'd yoke that will take an impressive 2.6" tyre.

A market leading 1 x11 Shimano clutch equipped drivetrain with a huge 381% gear range. Rapid fire shifters for immediate transitioning, direct mounts cranks, narrow wide chainrings and external bottom bracket for super smooth drive transfer to an immensely capable wheel set. Tubeless ready, double walled rims, CNCd' straight pull hubs on thru axles and running high thread count folding tyres.

Supported by light actuating Shimano hydraulic brakes that provide immediate, powerful braking no matter the conditions and a proven 100mm travel RST fork specifically chosen to complement the geometry of the bike. Your kid will get from the top to the bottom of the bike park before you can take it all in, let alone catch them up.

Key features

Frame: Triple butted AL6061, internal cabling, dropper ready
Fork: RST first RST, 100mm travel, 15mm thru axle, pm disc mount
Shifter: Shimano SL-M5100-IR Deore right 11-speed Rapidfire
Brakes: Shimano Deore BL-MT6000, 160mm rotors
Tyres: Vee Crown Gem skinwall 24*2.25" 72 TPI, folding
Weight: 10.9kg w/o pedals

Specifications

Frame: Triple butted AL6061, internal cabling, dropper ready
Fork: RST first RST, 100mm travel, 15mm thru axle, pm disc mount
Steerer: Tube AL6061
Cranks: Samox 150mm direct mount, nqf
Pedals: ER CNC'd AL6061, platform, studded, cartridge bearing
Bottom bracket: Samox 24mm external cup, cartridge bearing
Rims: 24 X 28H, double walled AL6061, tubeless compatible
Rear hub: CNC'd straight pull AL6061, 12 x 142 thru axle
Front hub: CNC'd straight pull AL6061, 15mm thru axle
Axles: Thru axles AL7075, 15mm front, 15mm rear
Chain: KMC X11EL
Chainring: Samox direct mount steel 30T
Weight: 10.9kg w/o pedals
Shifter: Shimano SL-M5100-IR Deore right 11-speed Rapidfire
Rear cassette: Shimano CS-M5100-11 Deore 11-speed 11-51T
Brakes: Shimano Deore BL-MT6000, 160mm rotors
Levers: Shimano Deore BL-M6000
Front tyre: Vee Crown Gem skinwall 24*2.25" 72 TPI, folding
Rear tyre: Vee Crown Gem skinwall 24*2.25" 72 TPI, folding
Headset: Semi integrated, tapered 1 1/8” - 1 1/5" cartridge bearing
Stem: Ritchey OS forged AL6061, 35mm reach
Bars: 640mm Ritchey OS double butted AL6061, 18mm rise
Grips: ER lock on kraton 115mm
Seat post: Ritchey, 30.9mm x 350mm, AL2014
Saddle: Sdg fly jr, black
Seat clamp: Ritchey QR, 34.9mm
Derailleur: Shimano RD-M5100 Deore sgs 11-speed

Geometry

Wheelbase: 1000mm
Head Angle: 67°
Seat Tube Length: 307.5mm
Chainstay Length: 390mm
Seat Tube Angle: 73°
Standover Height: 640mm
Top Tube Length: 510mm
Head Tube Length: 100mm
Stack: 547.9mm
Reach: 344mm
Fork Length: 480mm

View the user manual (PDF)

Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice
