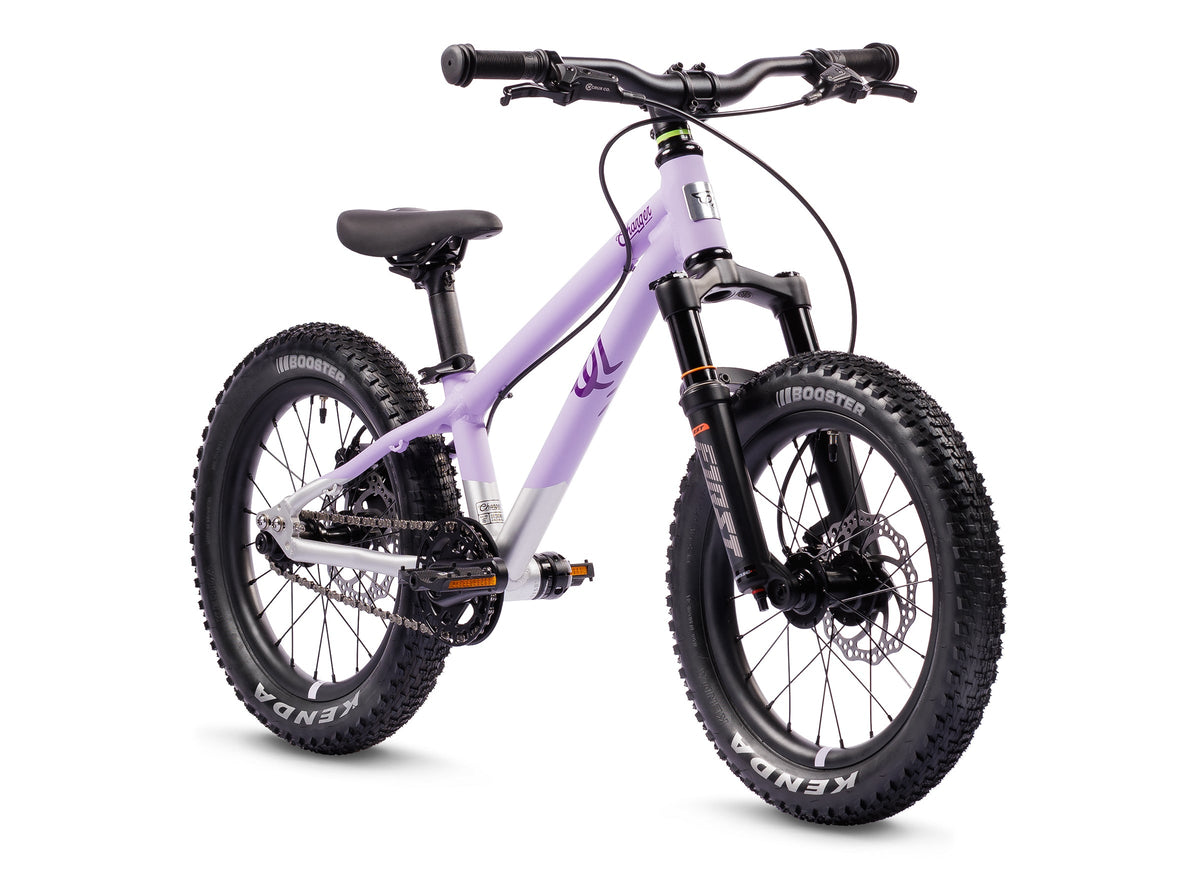

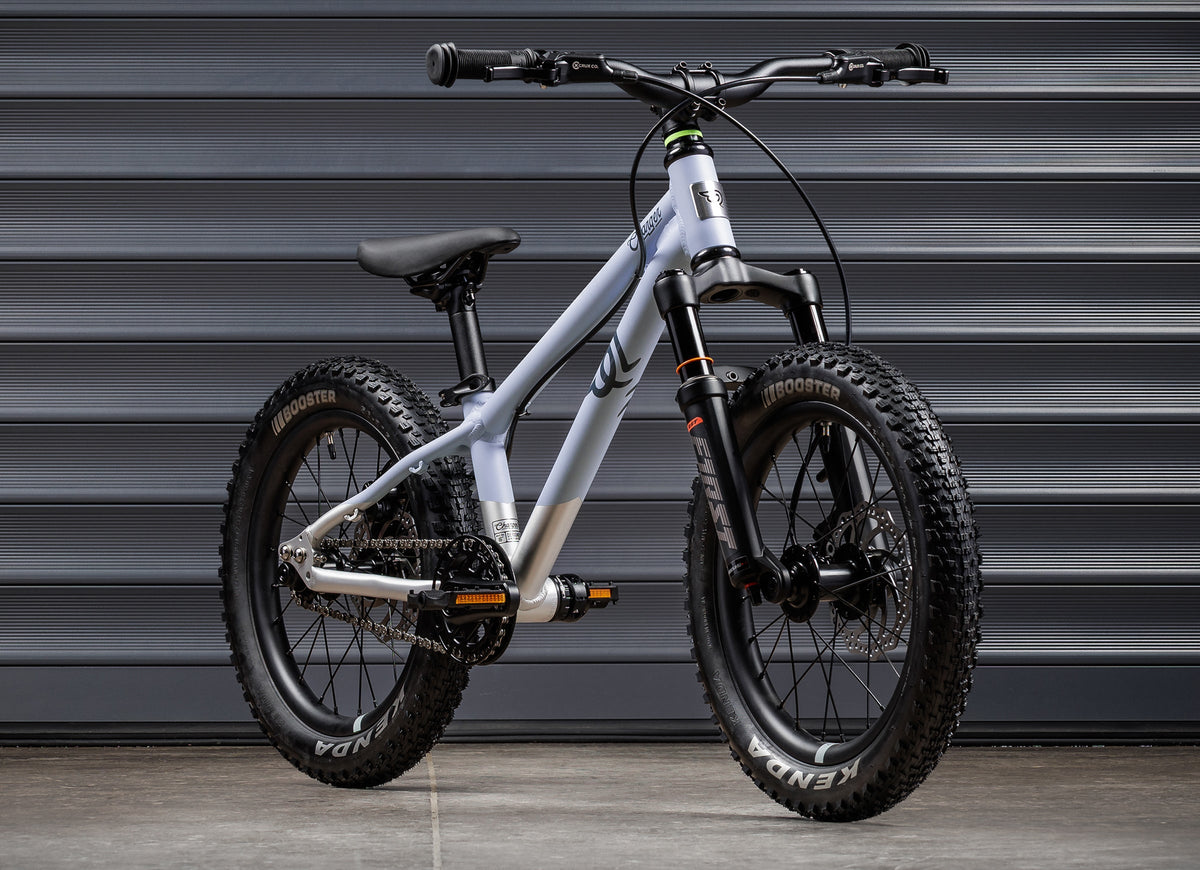

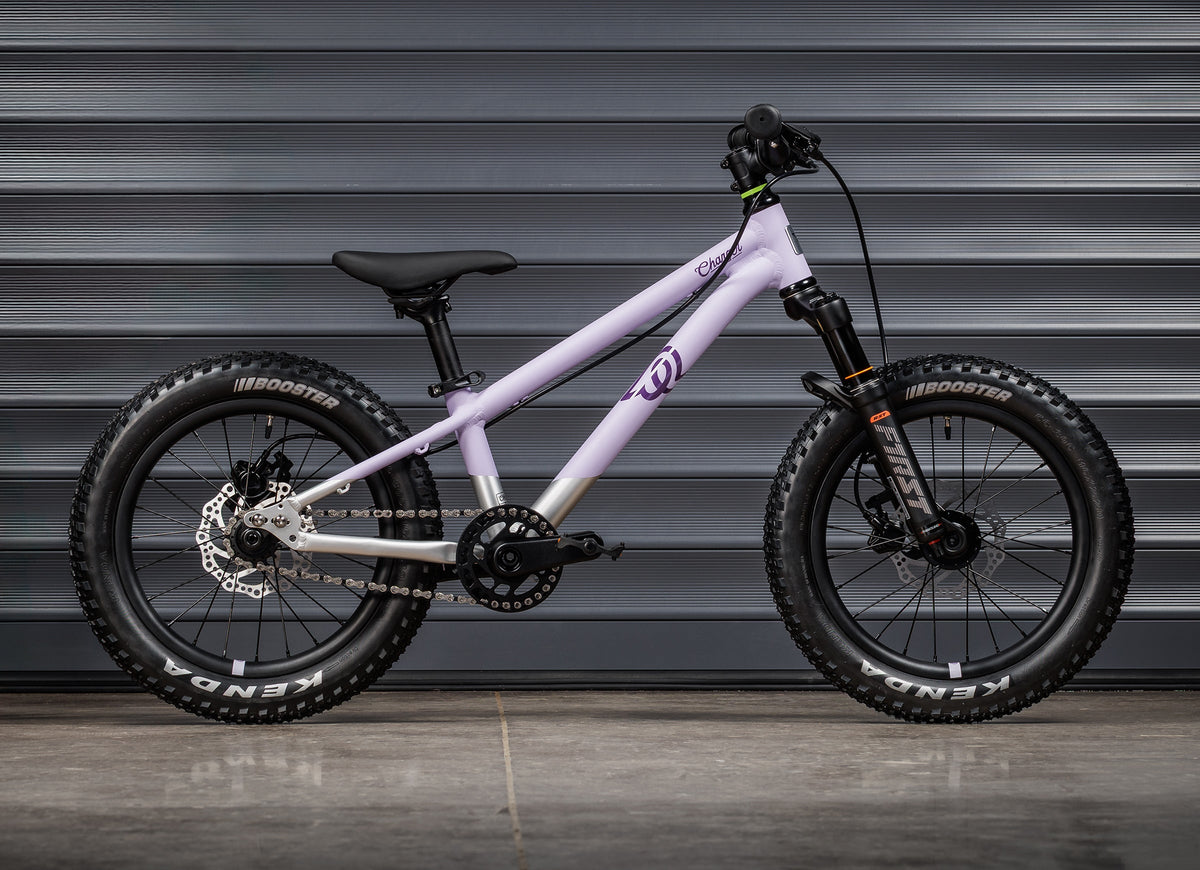

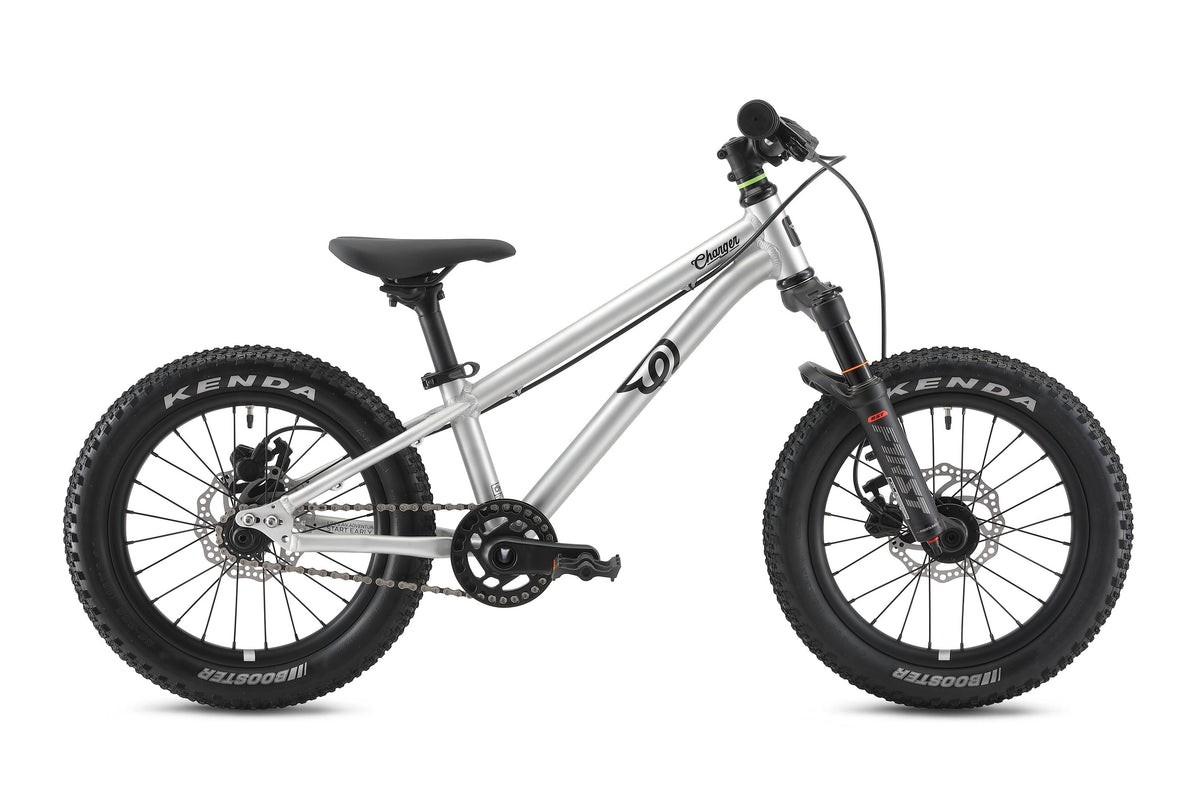

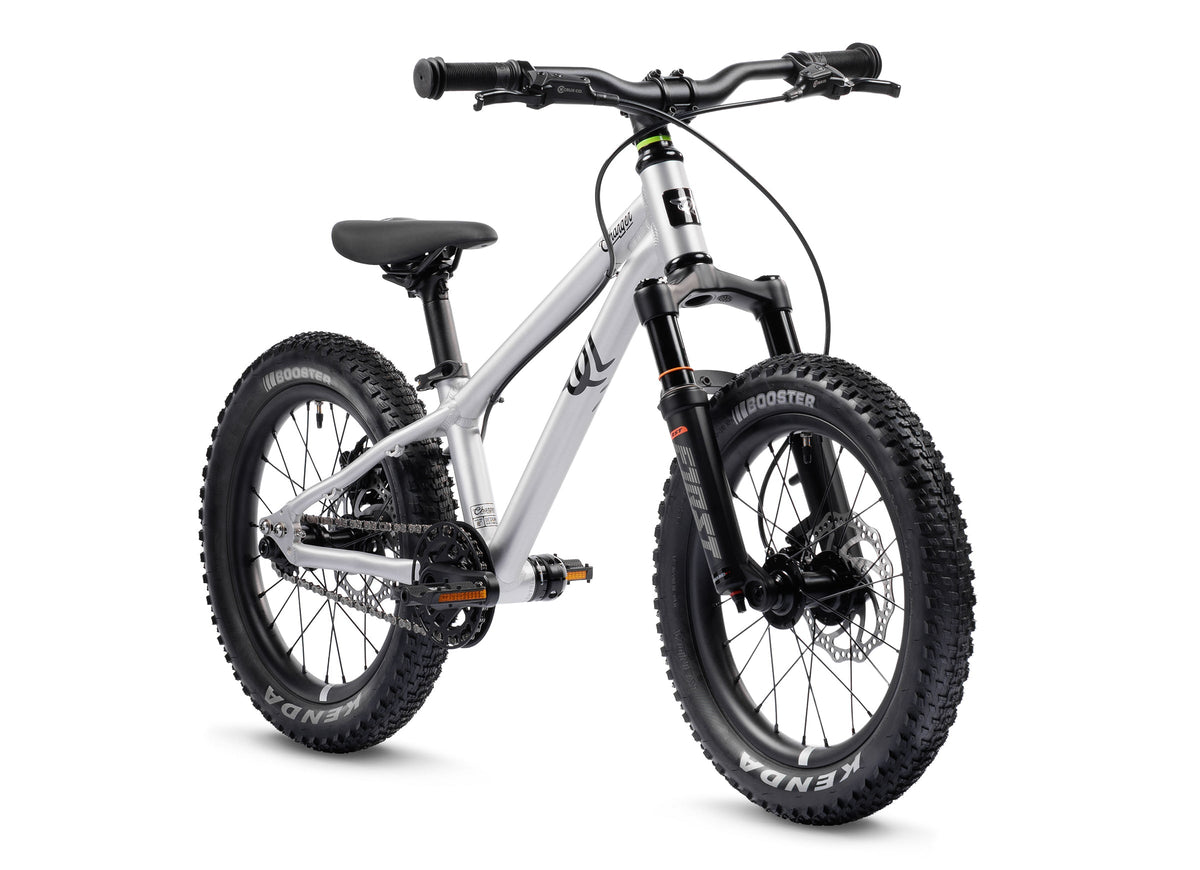

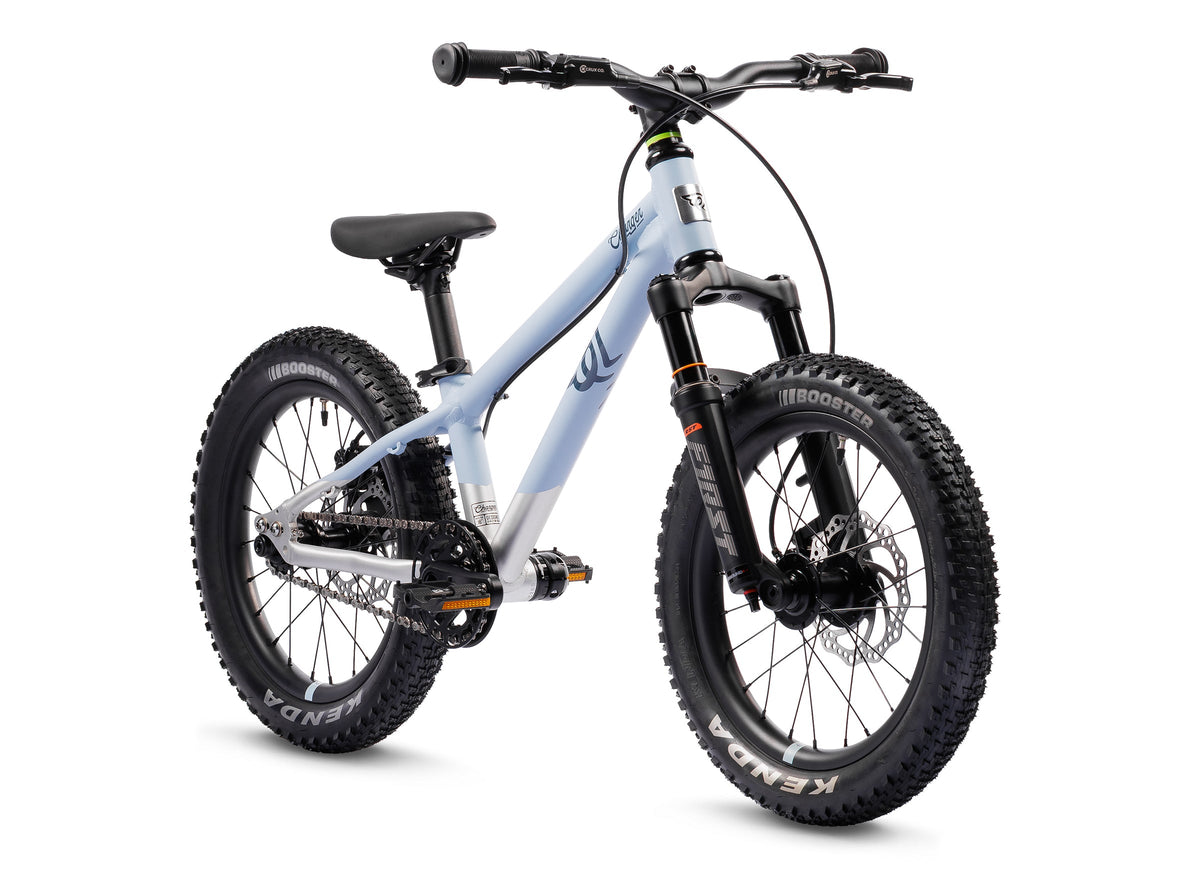

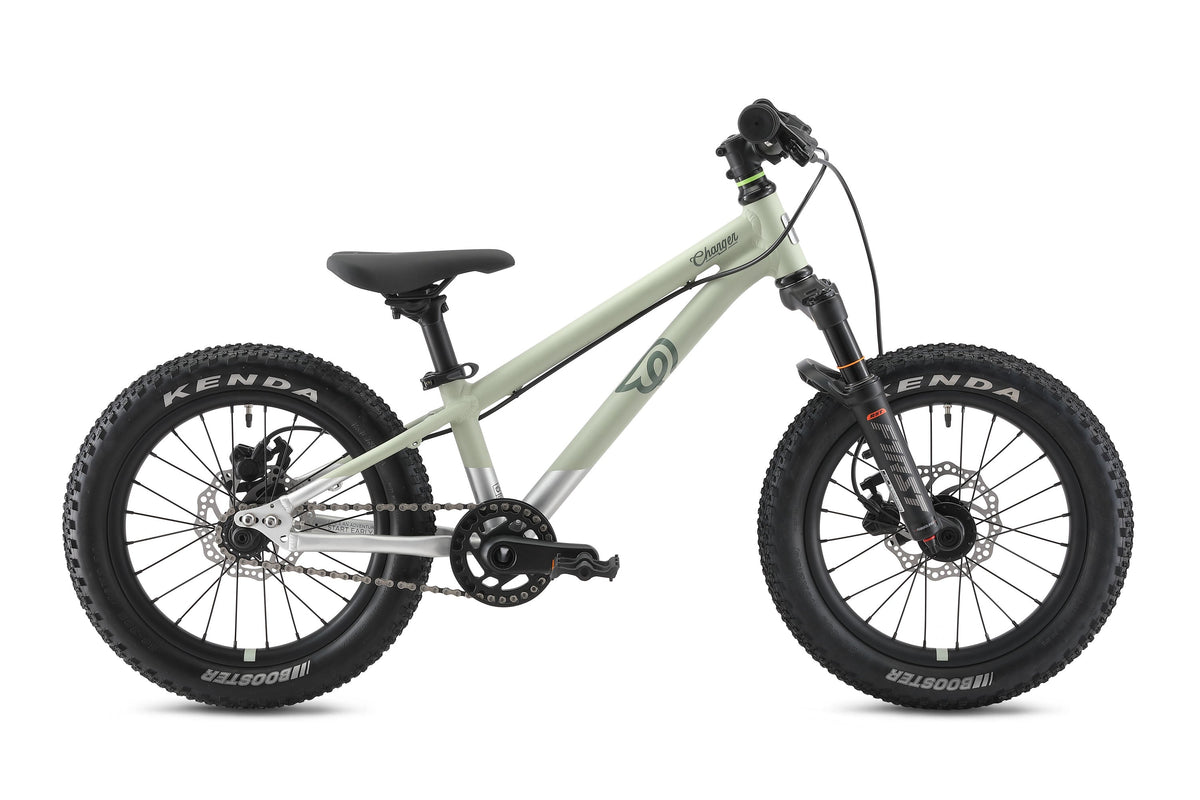

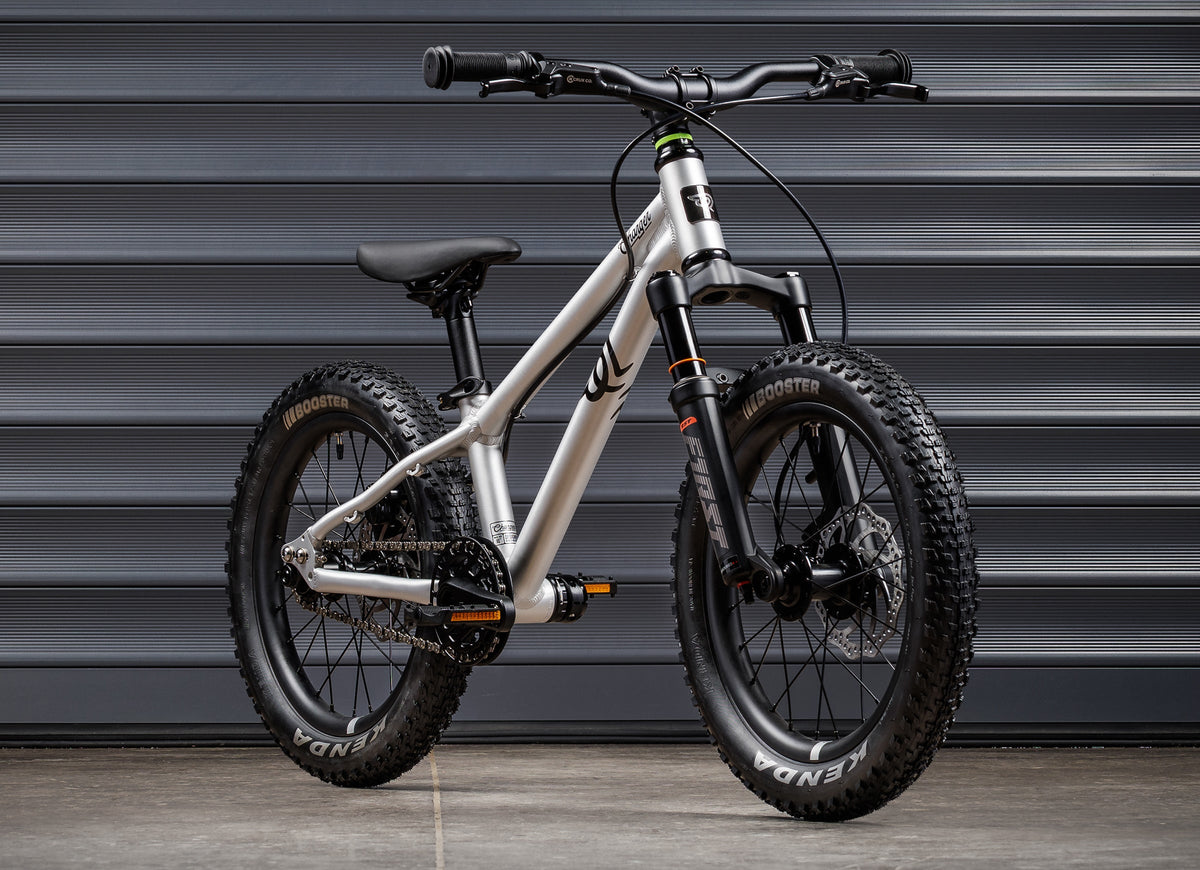

Early Rider Charger 16" Kids Mountain Bike (MY27)

Go faster, handle harder, enjoy more.

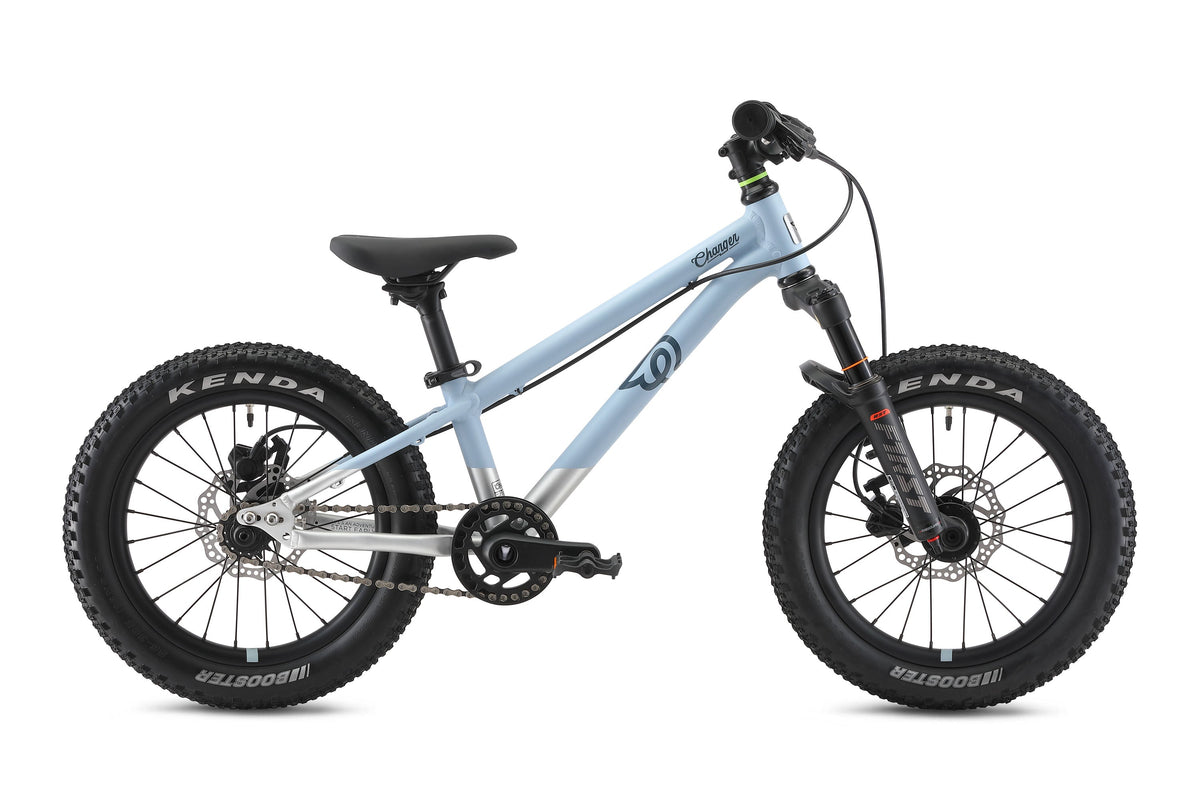

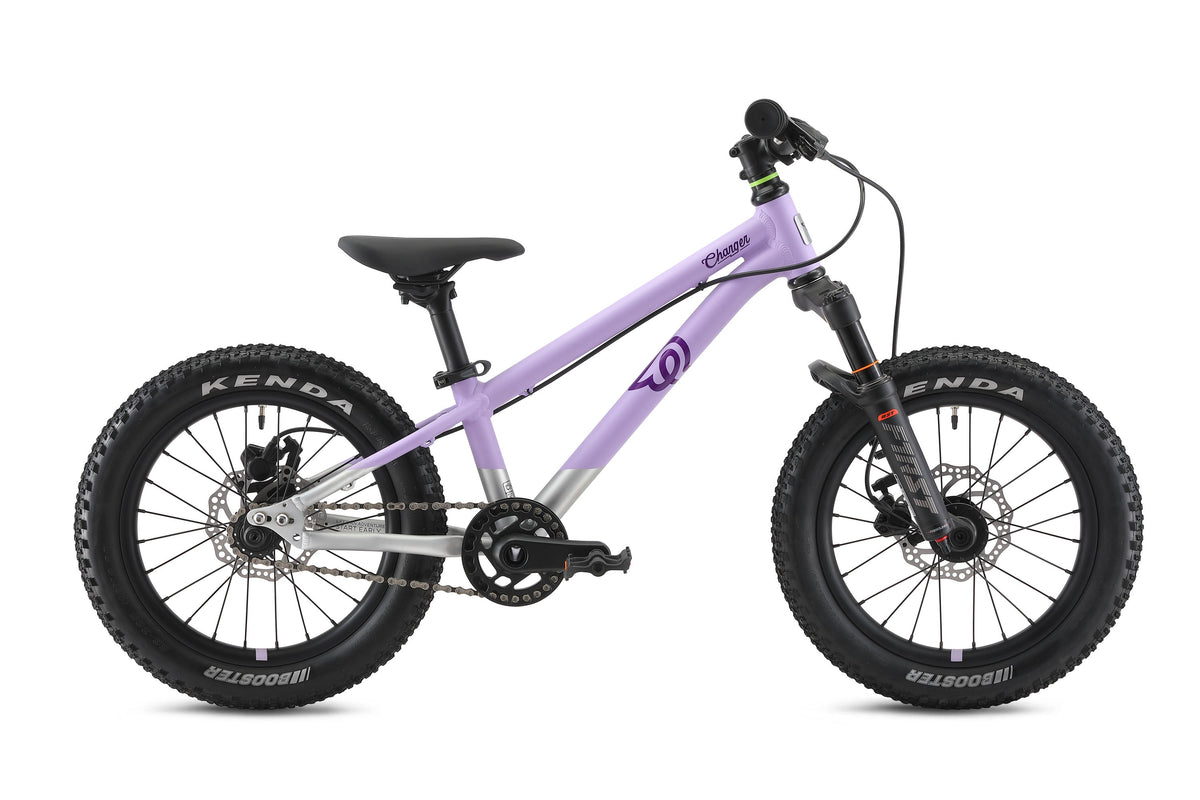

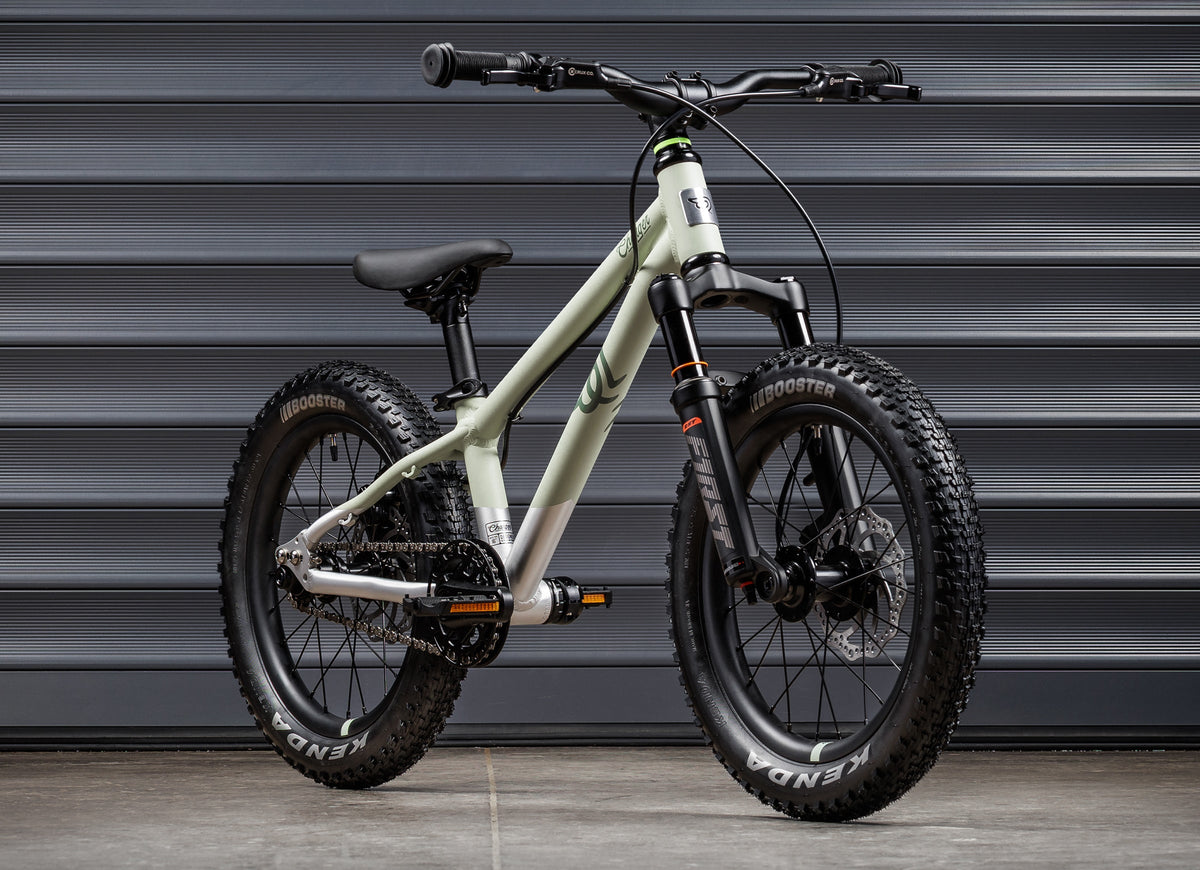

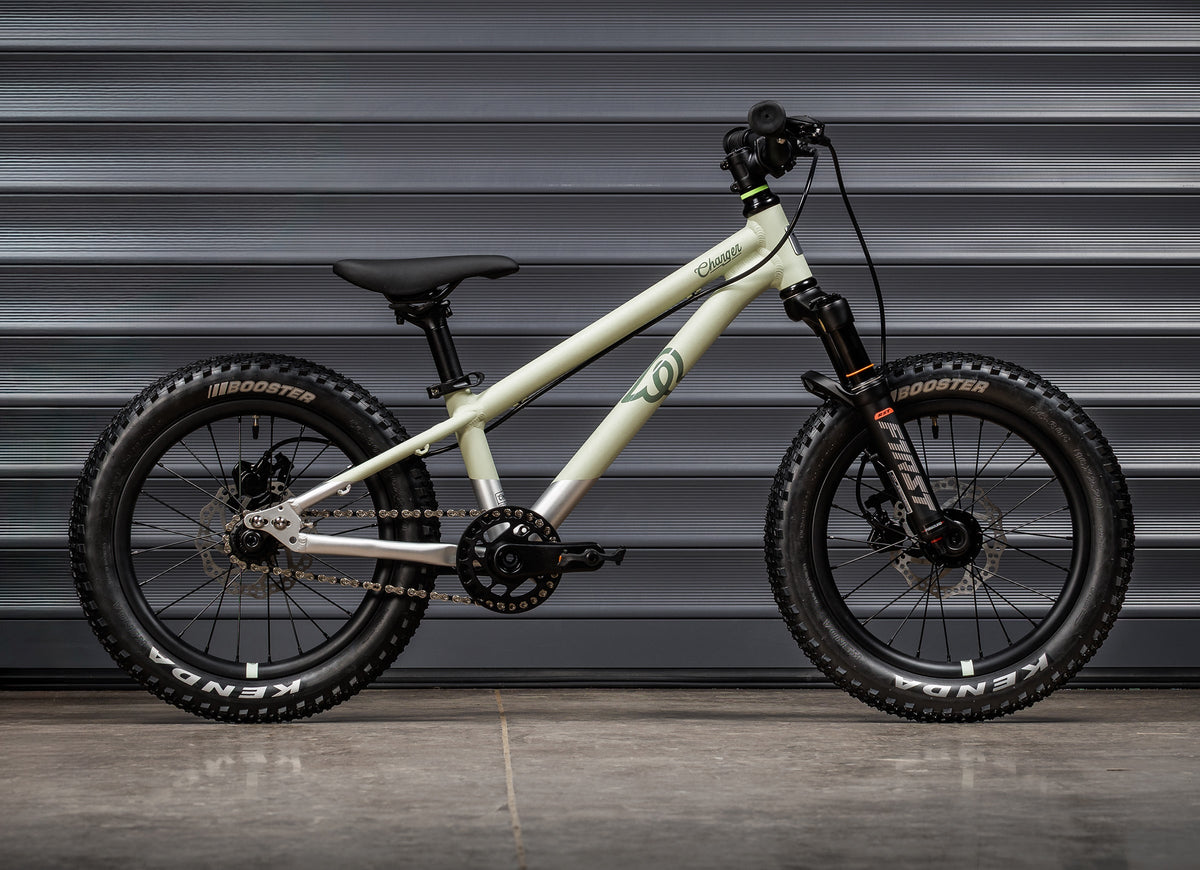

The Charger 16 is a premium 16" hardtail bike designed for young riders ready to take on real trails. Featuring RST F1RST 60mm air suspension forks and a lightweight, trail-optimized frame geometry, the Charger 16 delivers superior control, comfort, and handling. Sealed bearing wheels with bolt-thru axles provide strength and smooth rolling performance, while wide Kenda Booster 2.2" tires offer excellent grip on varied terrain. Reduced-diameter grips ensure a secure, comfortable hold for smaller hands. With gear compatibility for future upgrades and a refined chain-driven drivetrain using a new 90mm chainset, the Charger 16 offers improved pedal efficiency for growing riders who are ready to go further.

Assembly instructions

Your bike will arrive carefully packaged and boxed with both wheels attached. The handlebar will be ziptied to the top tube, simply remove the bars and all packaging and attach to the stem. Then simply add the pedals. Please retain your manual.

Key features

Inside leg: 44.5cm

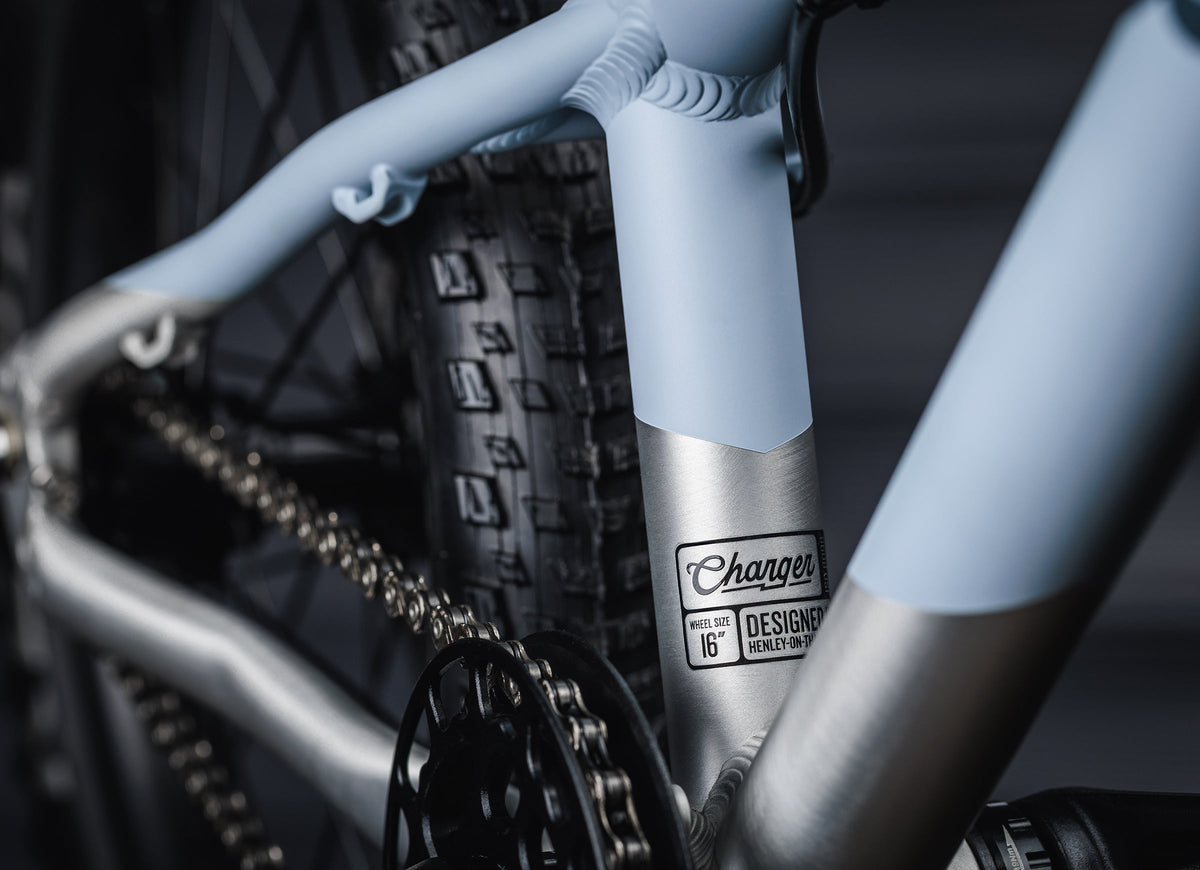

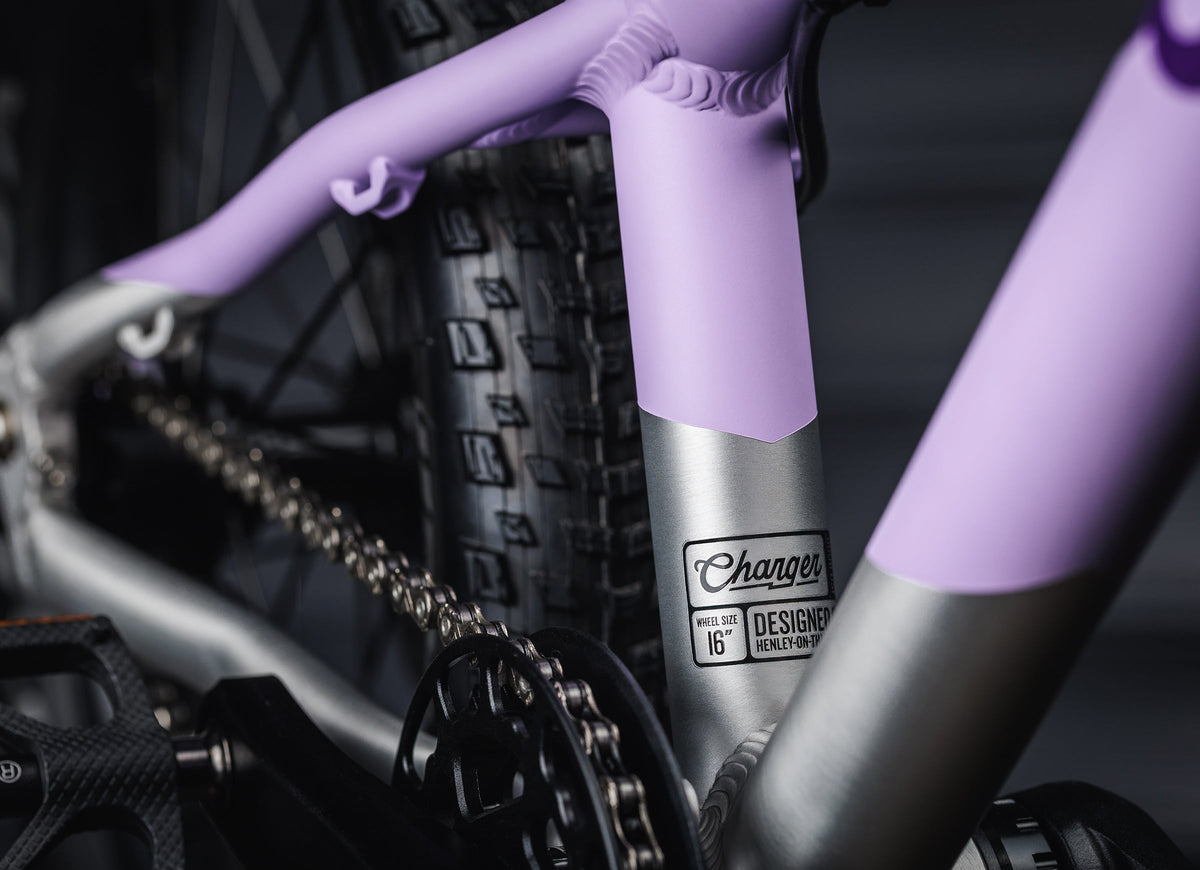

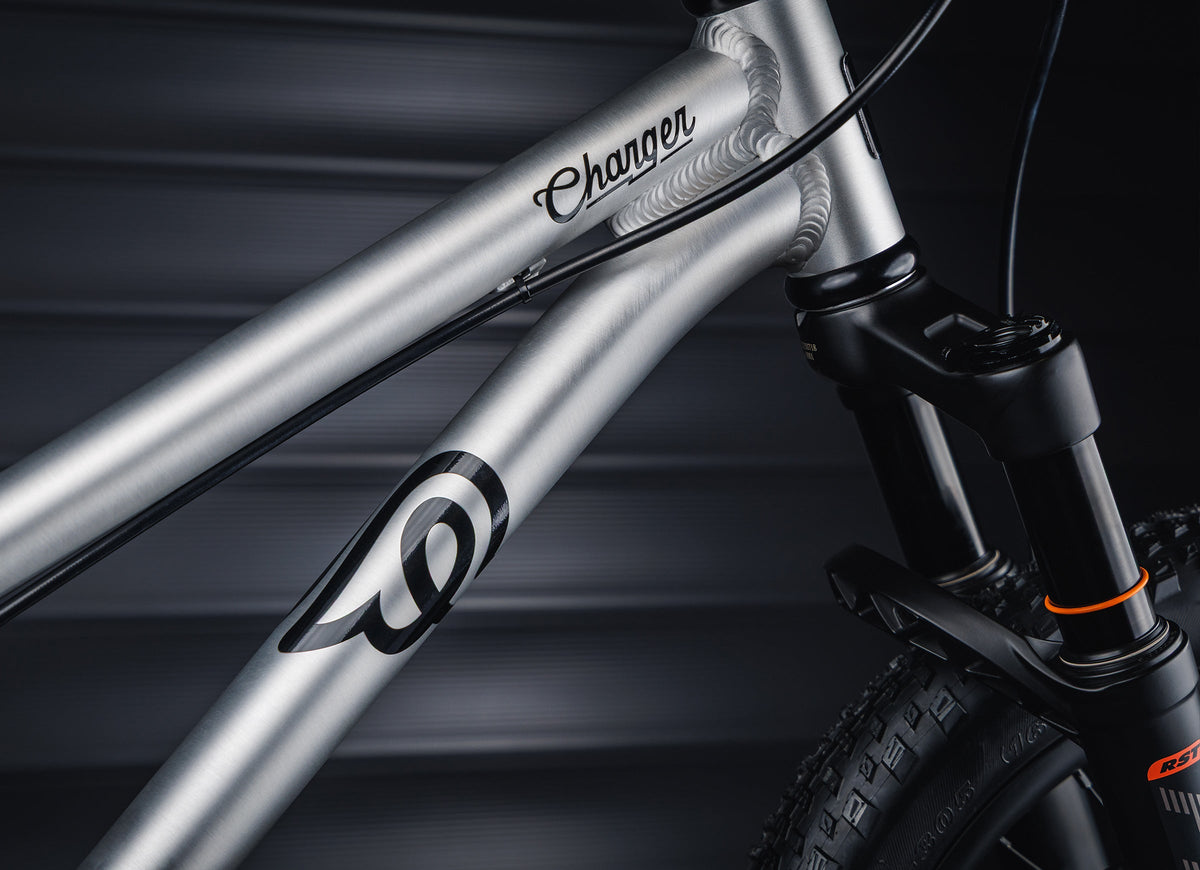

Frame: Hand brushed AL6061, forged sliding drop outs

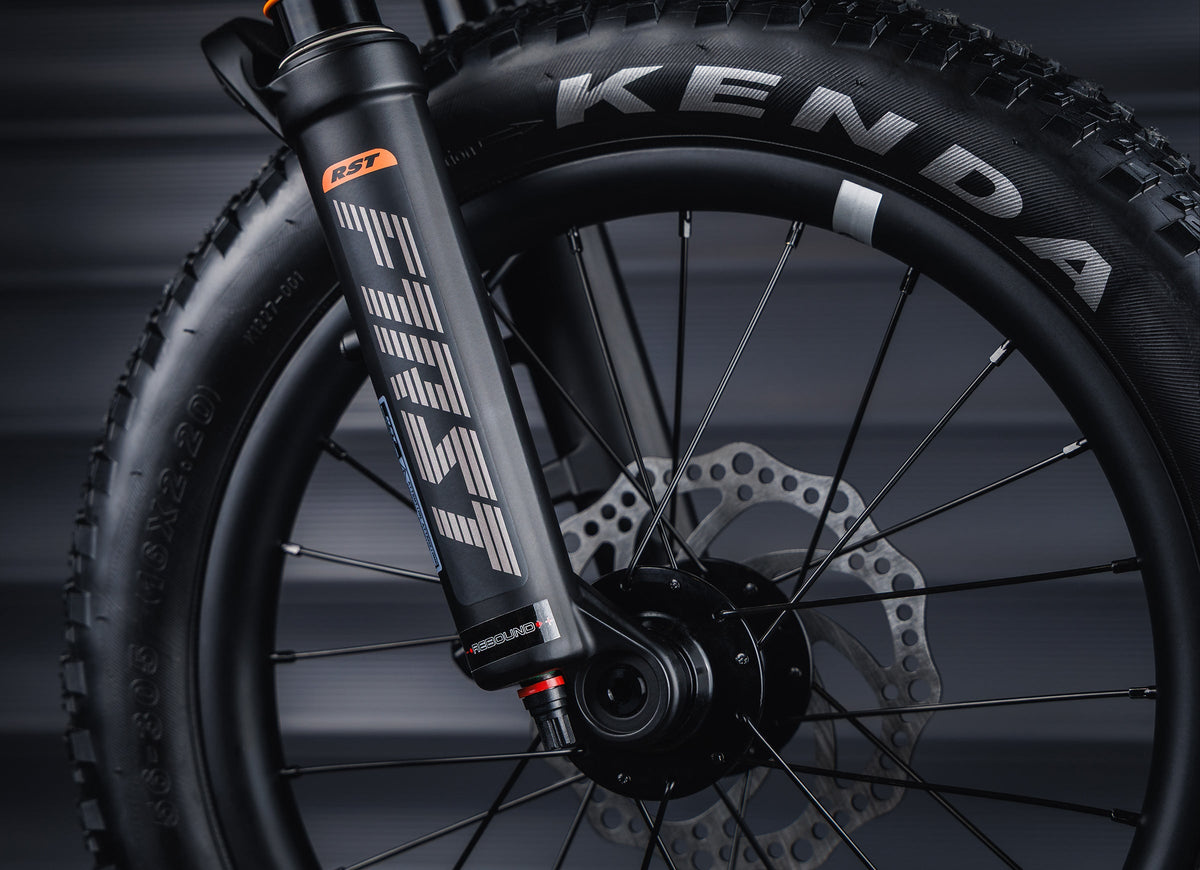

Fork: RST F1RST 60mm travel air suspension forks

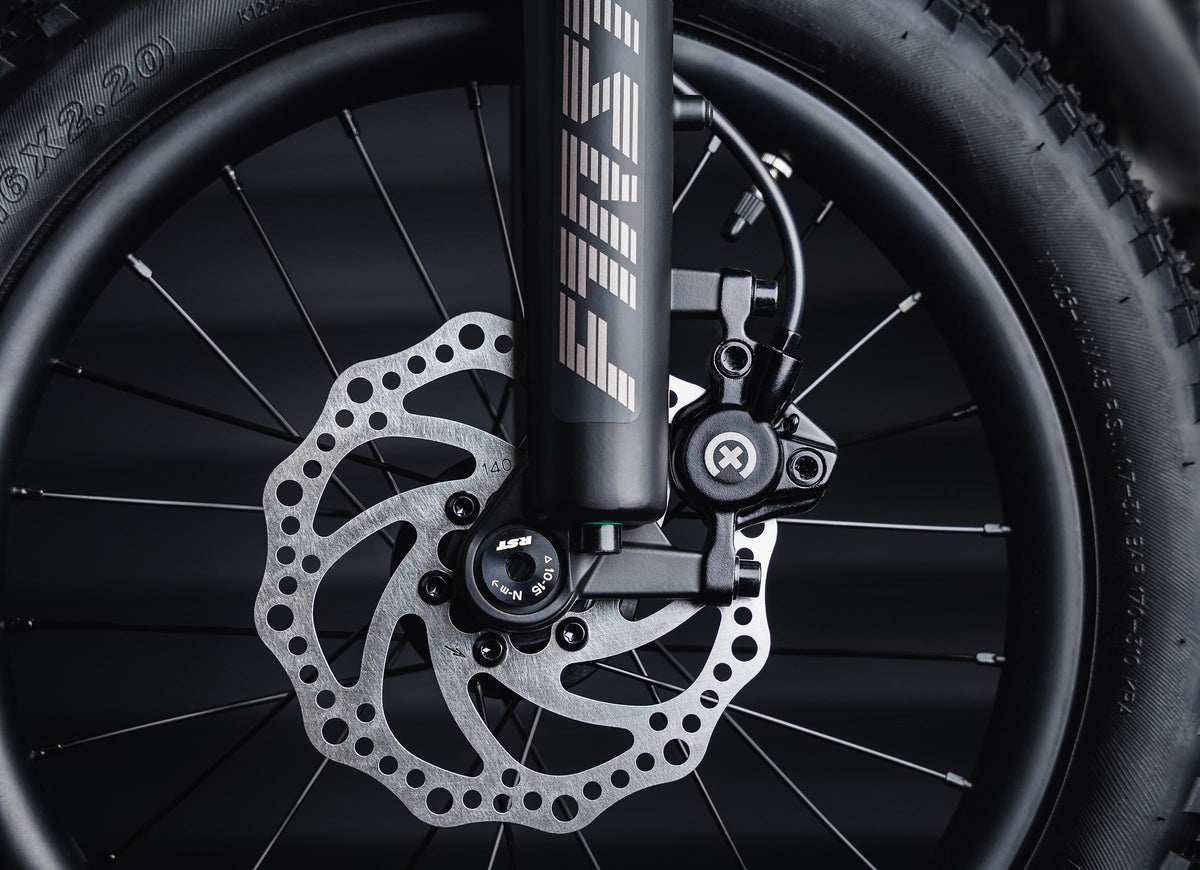

Brakes: Crux hydraulic disc brake with 140mm rotors
Tyres: Kenda Booster 16x2.2", 30TPI WB
Weight: 7kg without pedals

Specifications

Standover height: 41cm
Frame: Hand brushed AL6061, forged sliding drop outs
Fork: RST F1RST 60mm travel air suspension forks
Steerer: Tube AL6061

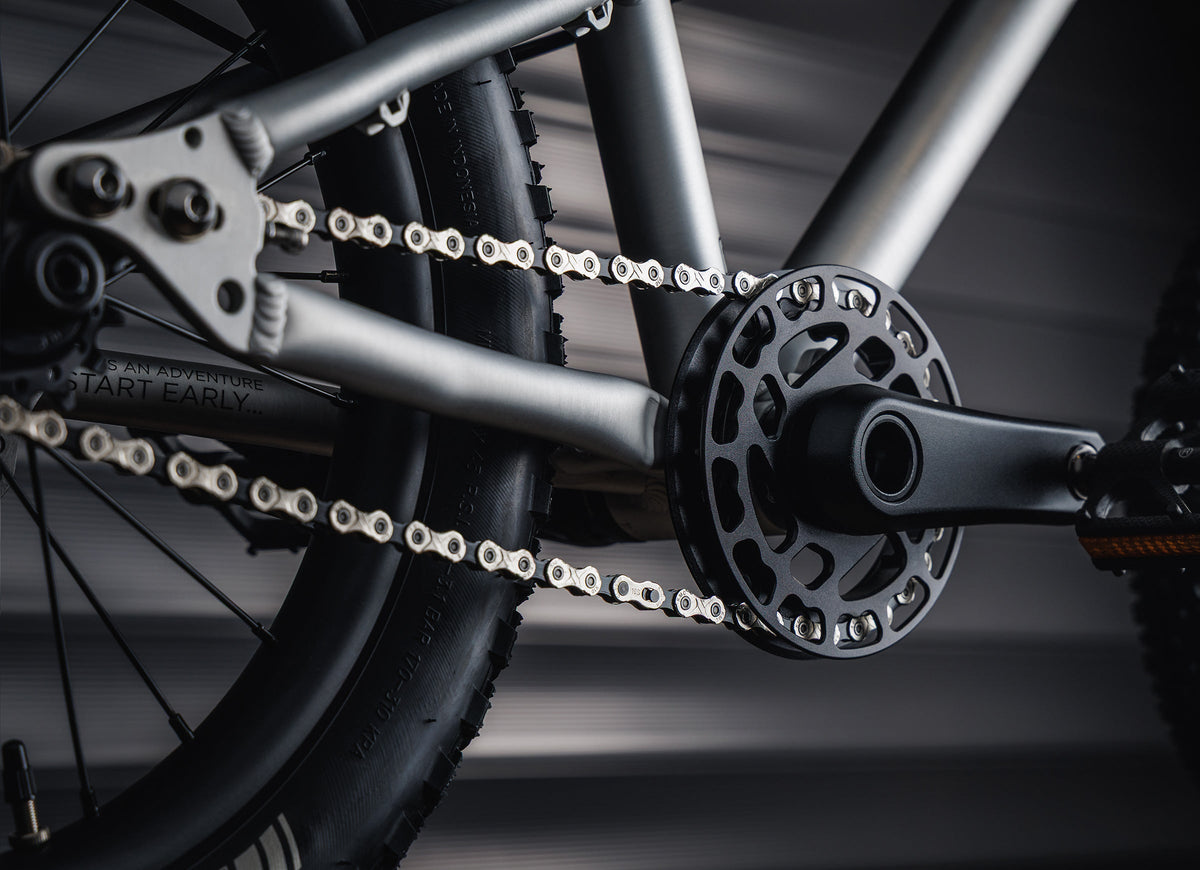

Cranks: Crux CNC'd AL6061, 90mm
Pedals: Resin platform, studded, cartridge bearing
Bottom bracket: Crux external cup, sealed cartridge bearing

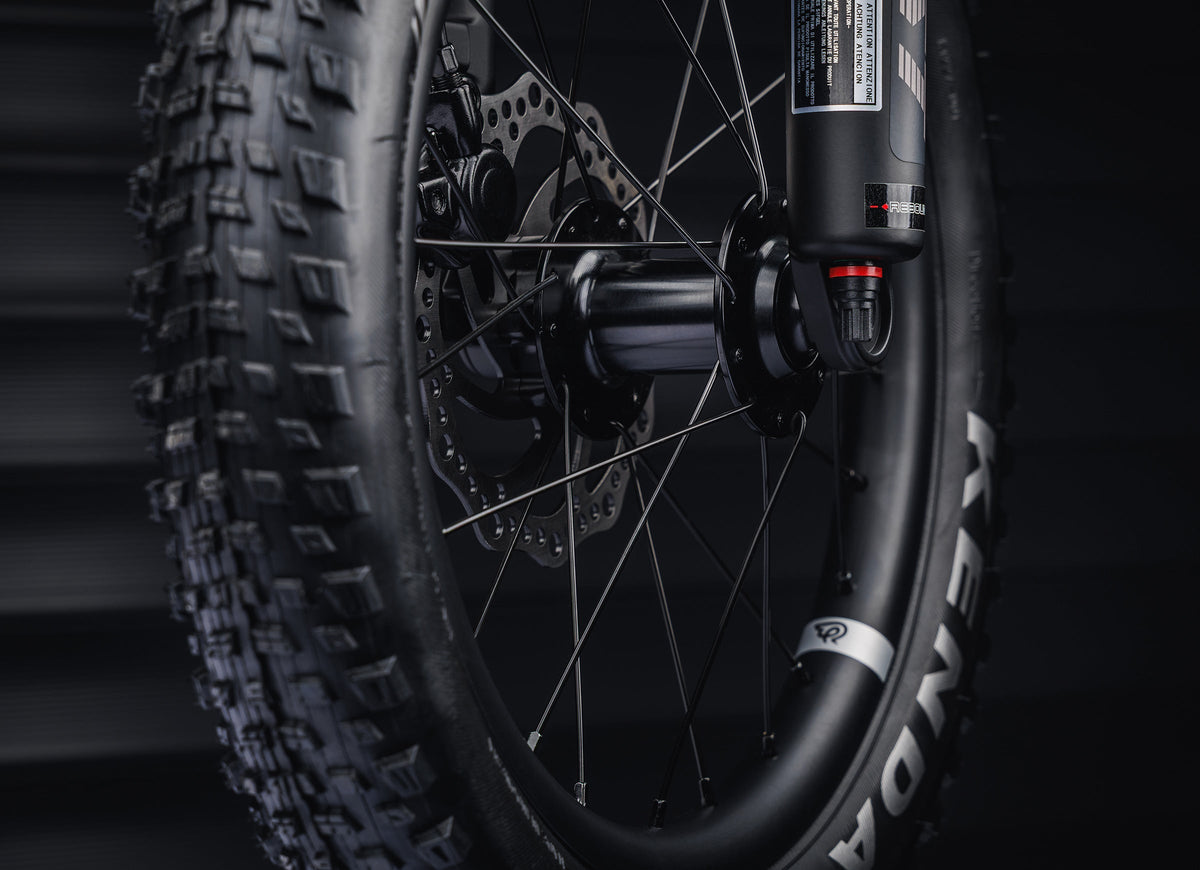

Rims: 16 x 24H, double walled AL6061

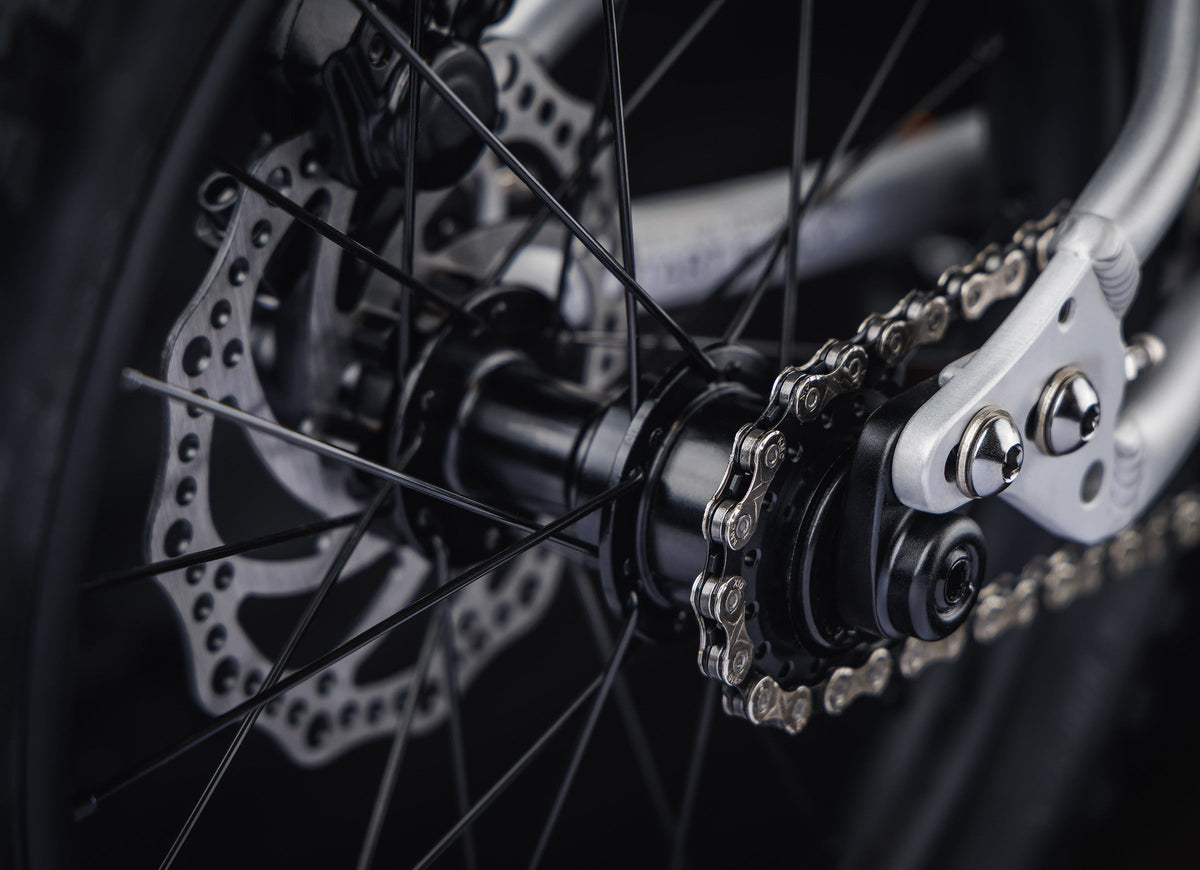

Rear hub: Four-bearing cassette free hub, CNC'd AL6061
Front hub: CNC'd AL6061, cartridge bearing
Axles: AL6061
Chain: KMC X9
Front sprocket: CNC'd AL6061, 26T
Weight: 7kg without pedals
Rear sprocket: CNC'd AL7075, 15T
Brakes: Crux hydraulic disc brake with 140mm rotors

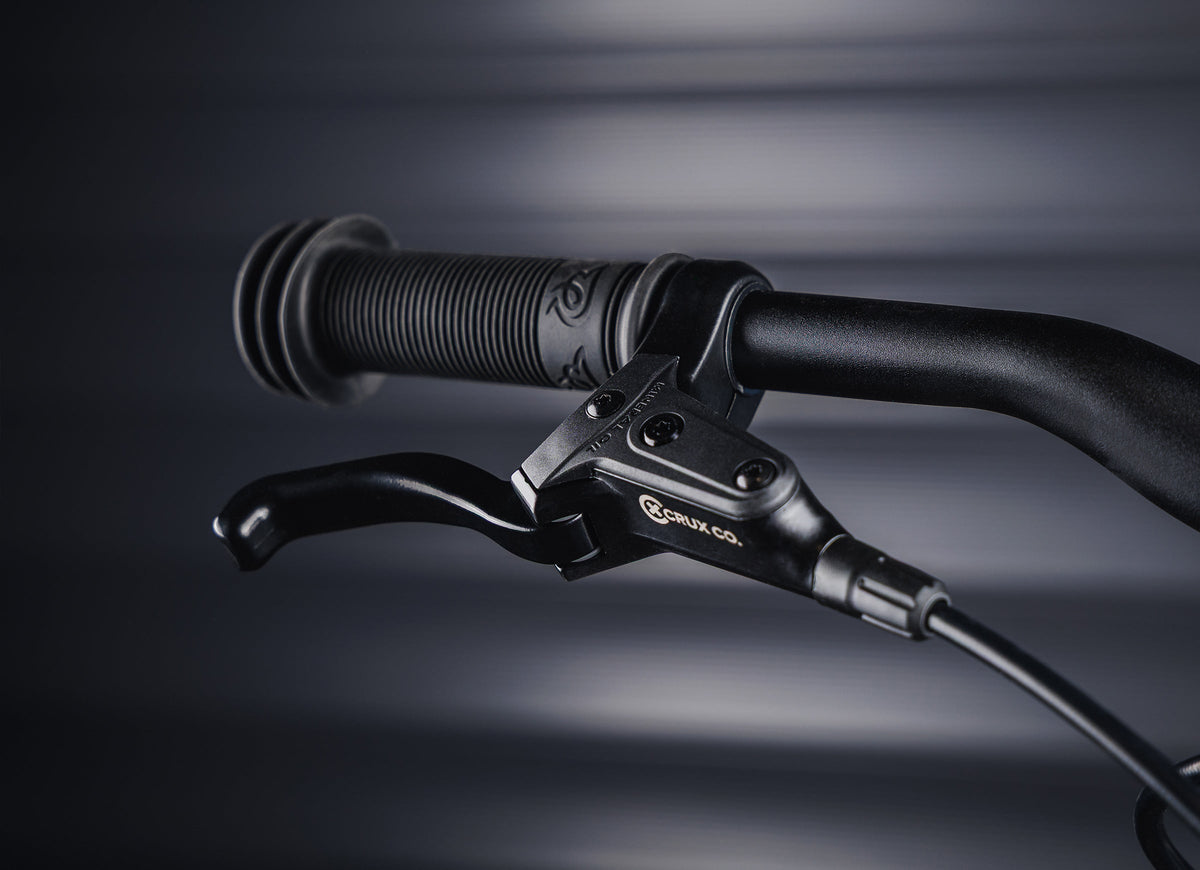

Levers: Crux hydraulic short reach

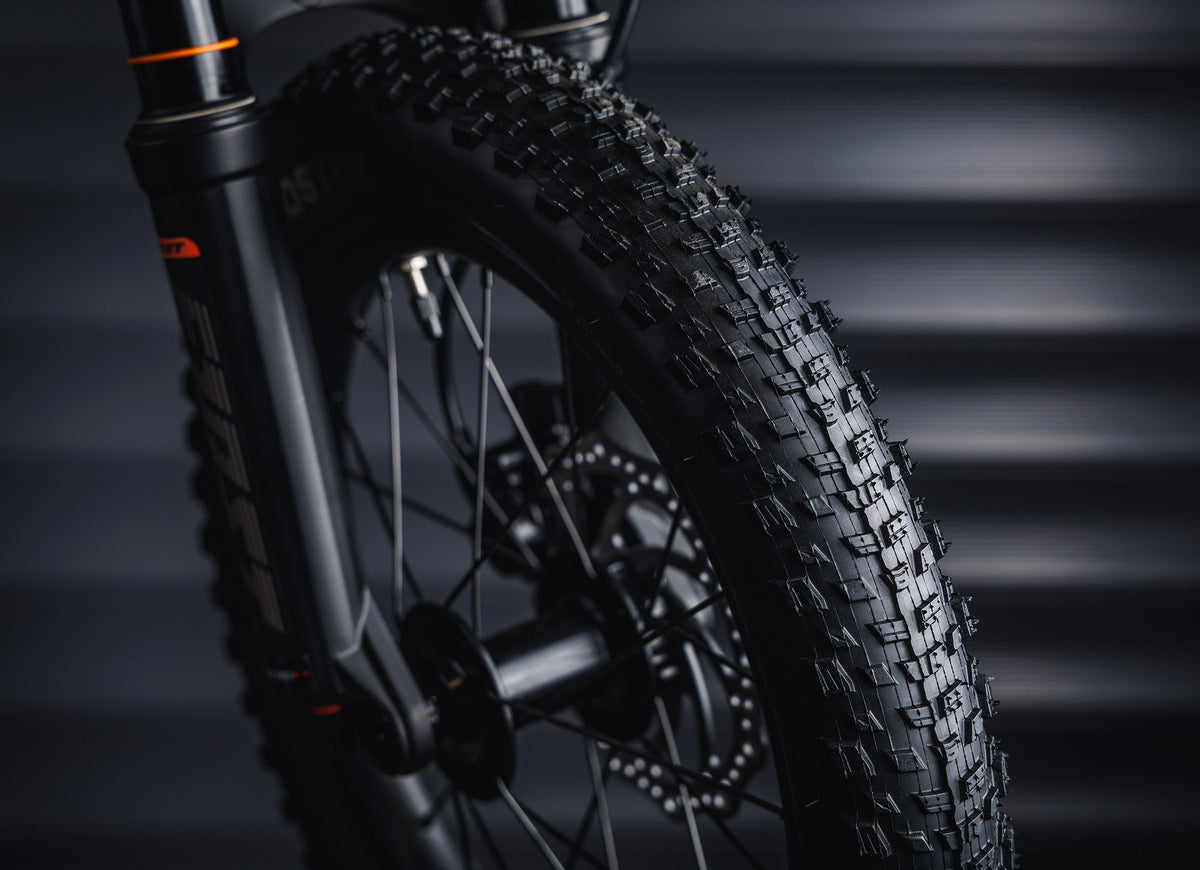

Front tyre: Kenda Booster 16x2.2", 30TPI WB
Rear tyre: Kenda Booster 16x2.2", 30TPI WB
Headset: 1 1/8” cartridge bearing, conventional
Stem: Forged AL6061, 35mm reach
Bars: 500mm double butted AL6061, 22mm rise, 19mm grip area
Grips: ER 19mm soft touch mushroom 100mm
Seat post: AL6061, 25.4mm x 195mm
Saddle: Black wing combo
Seat clamp: ER QR, 28.6mm

Geometry

Wheelbase: 750mm
Head Angle: 66.5°
Seat Tube Length: 210mm
Chainstay Length: 262mm
Seat Tube Angle: 72°
Standover Height: 430mm
Top Tube Length: 413.8mm
Head Tube Length: 90mm
Stack: 396.6mm
Reach: 285mm
Fork Length: 325mm

View the user manual (PDF)
