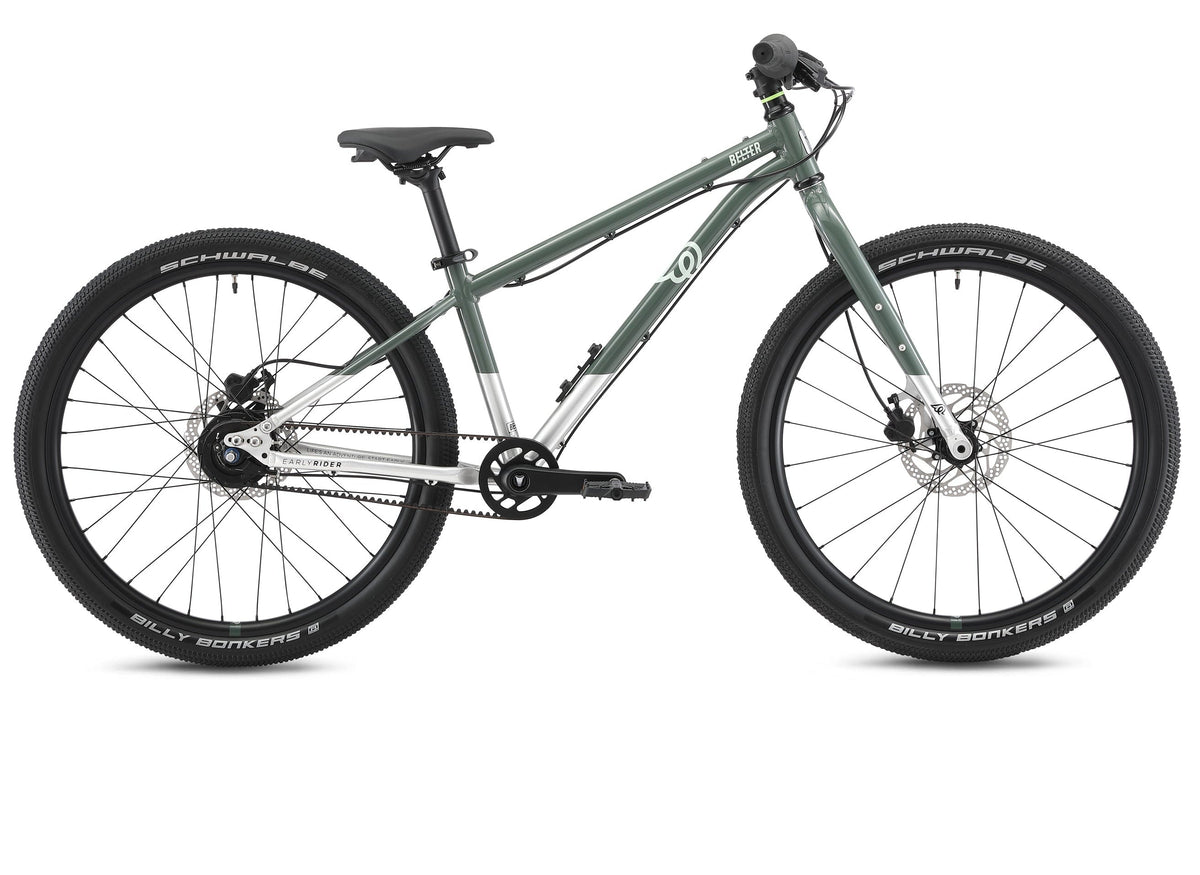

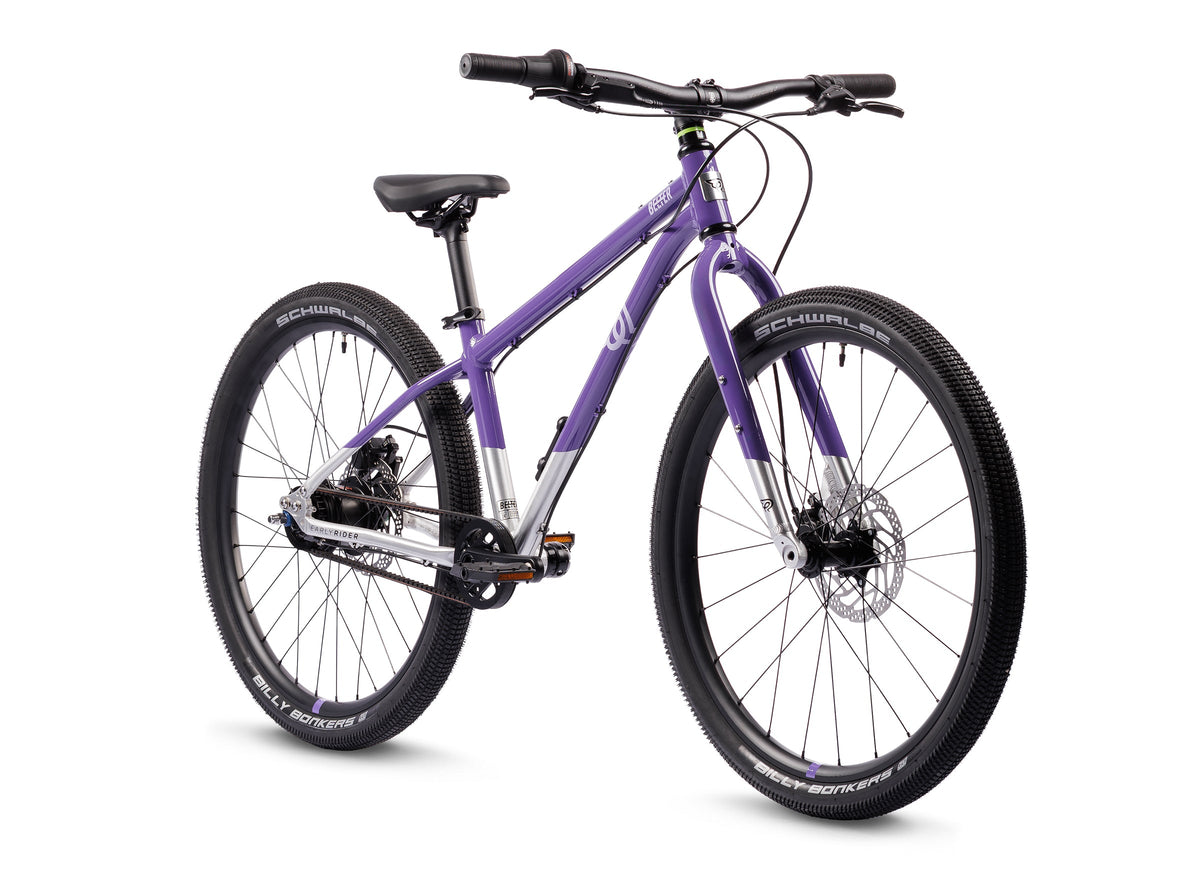

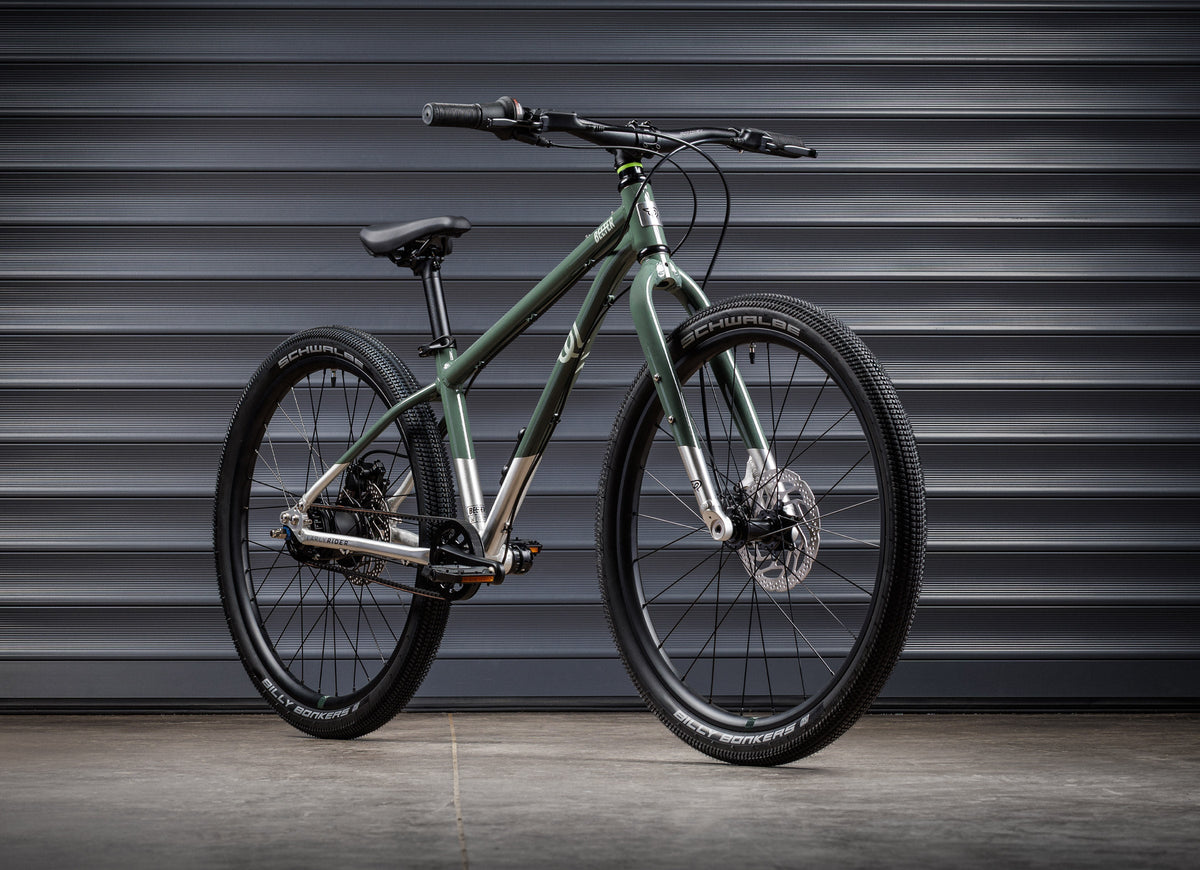

Early Rider Belter 24" Kids Bike (MY27)

The (last) word on the street.

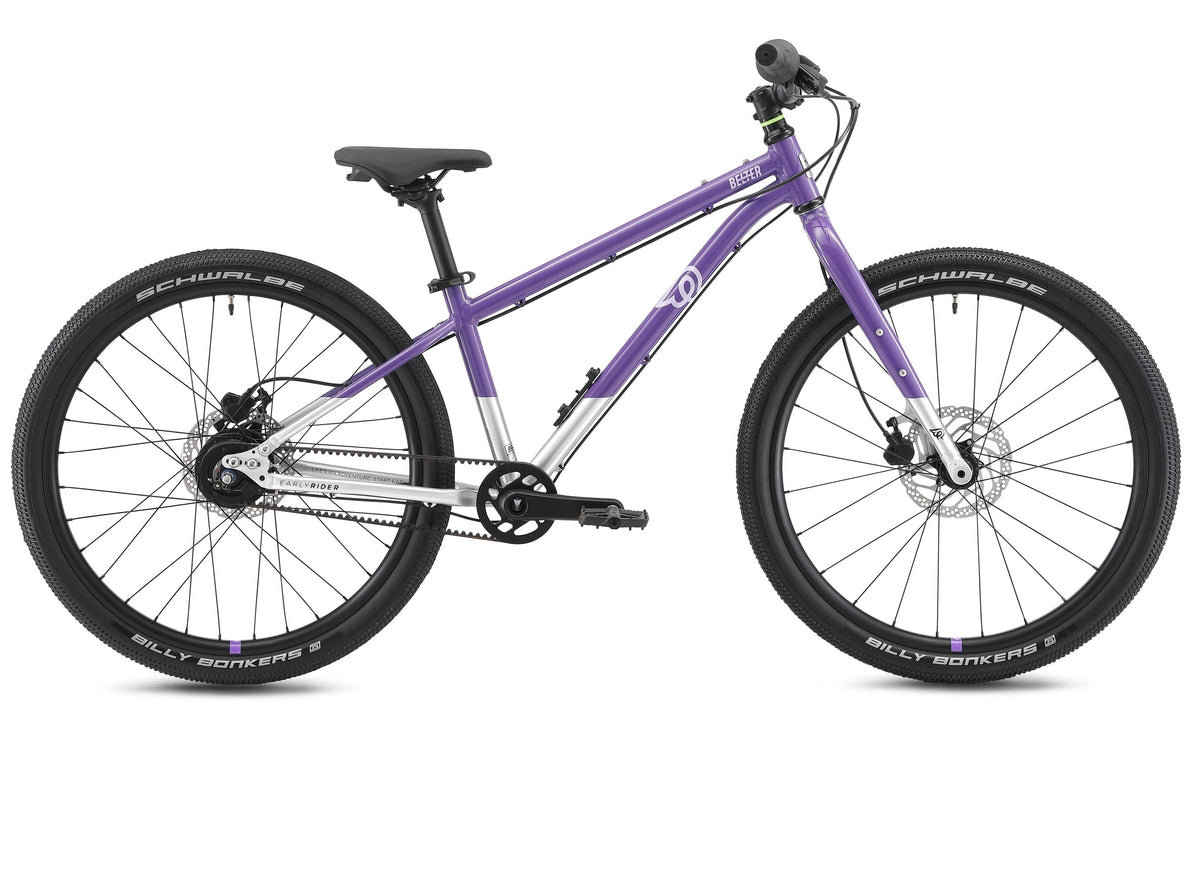

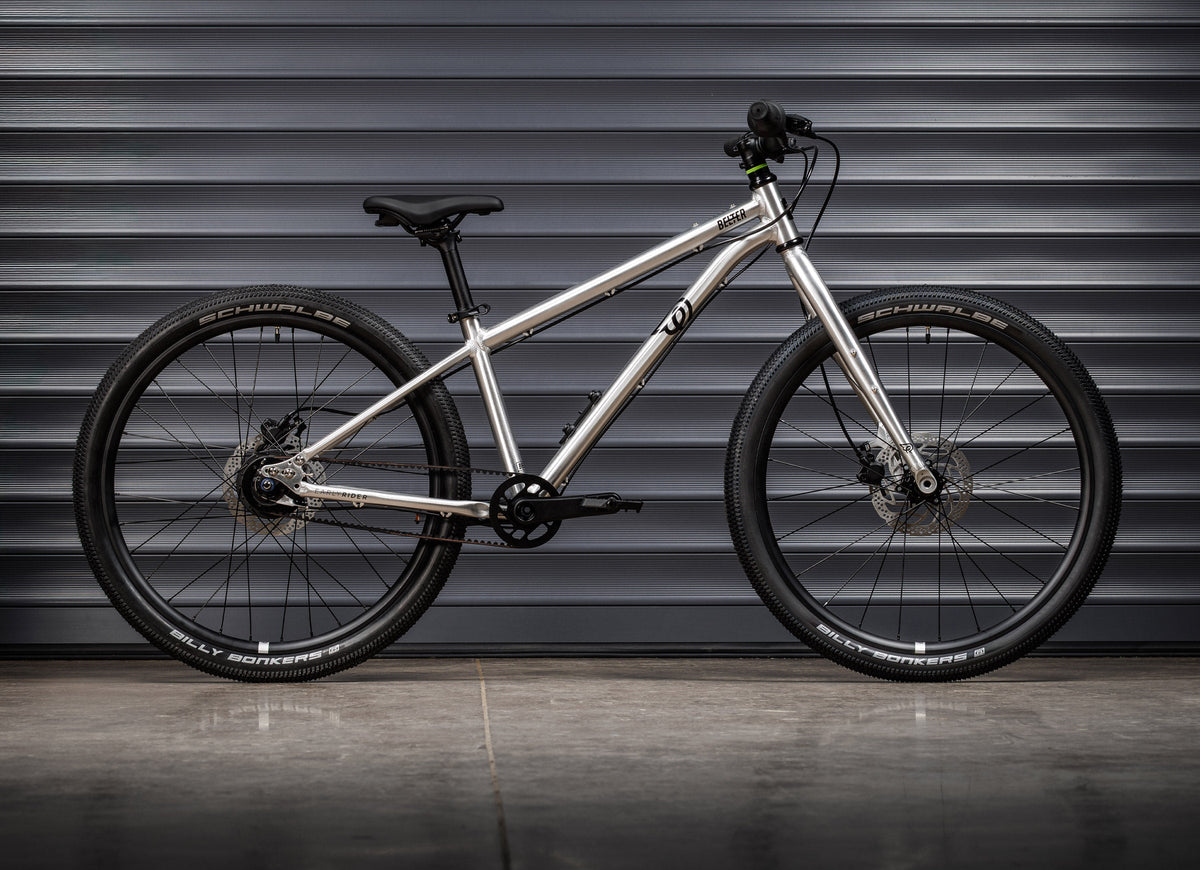

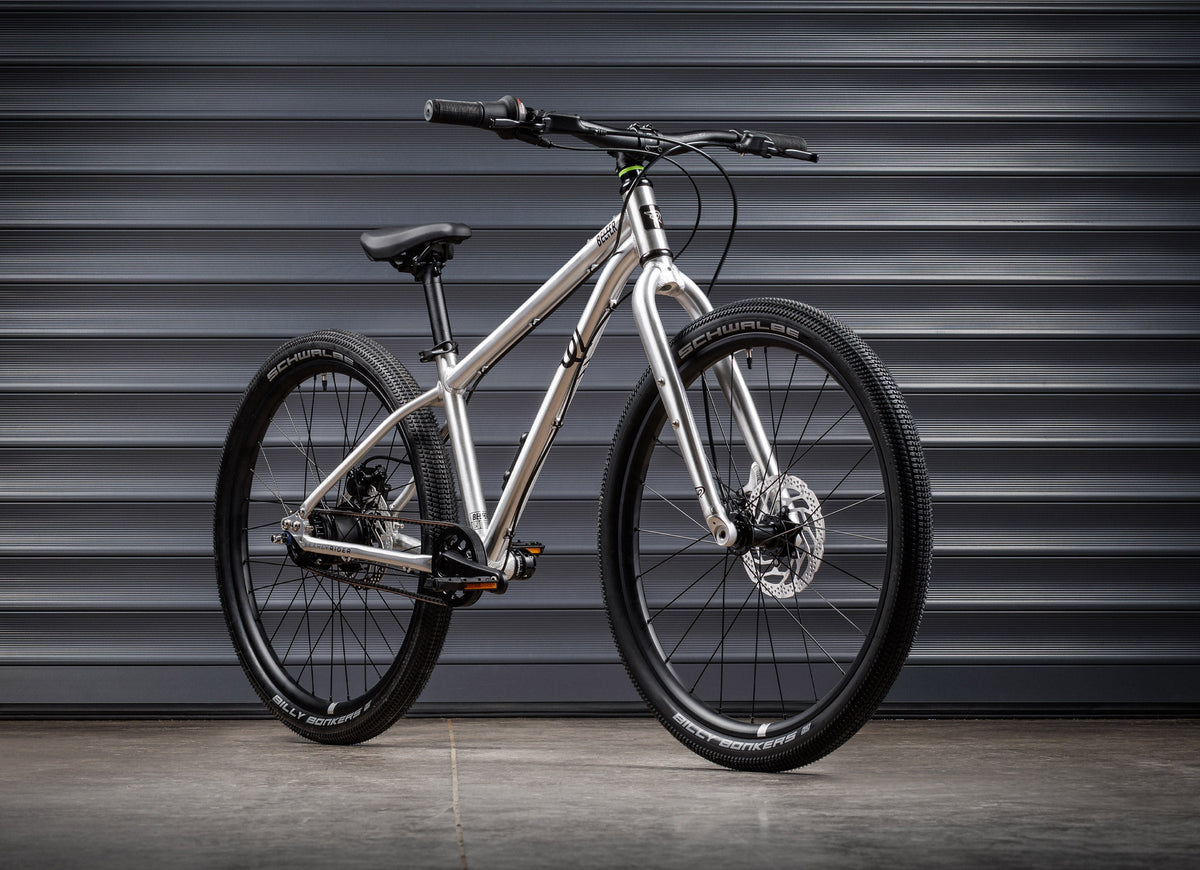

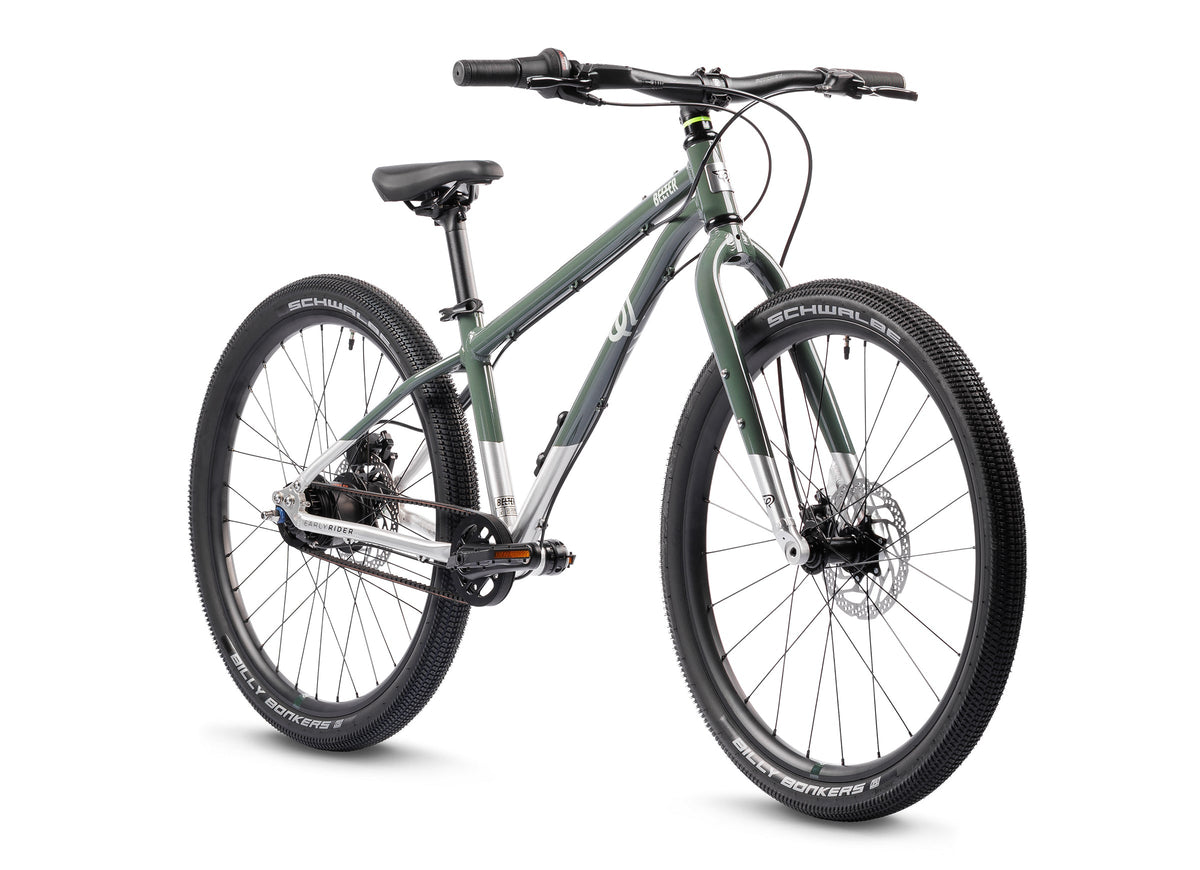

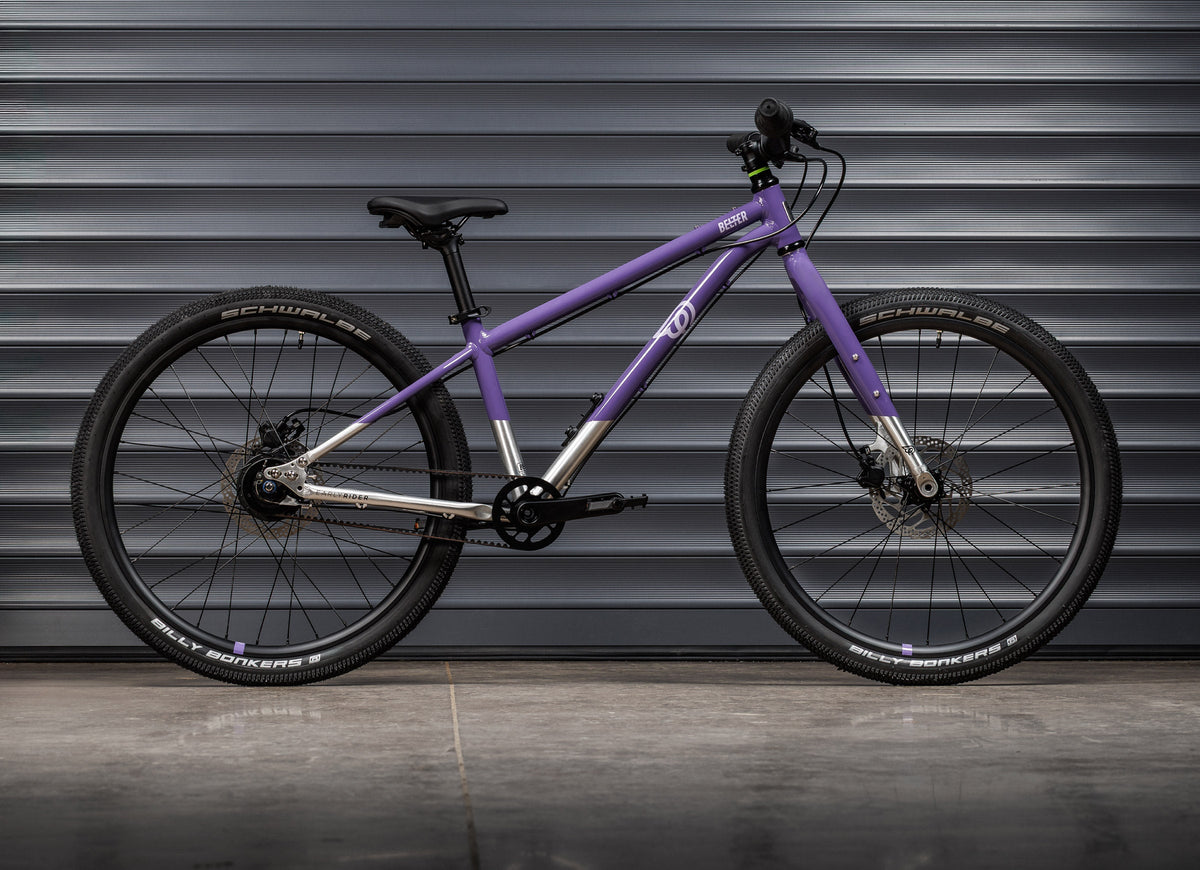

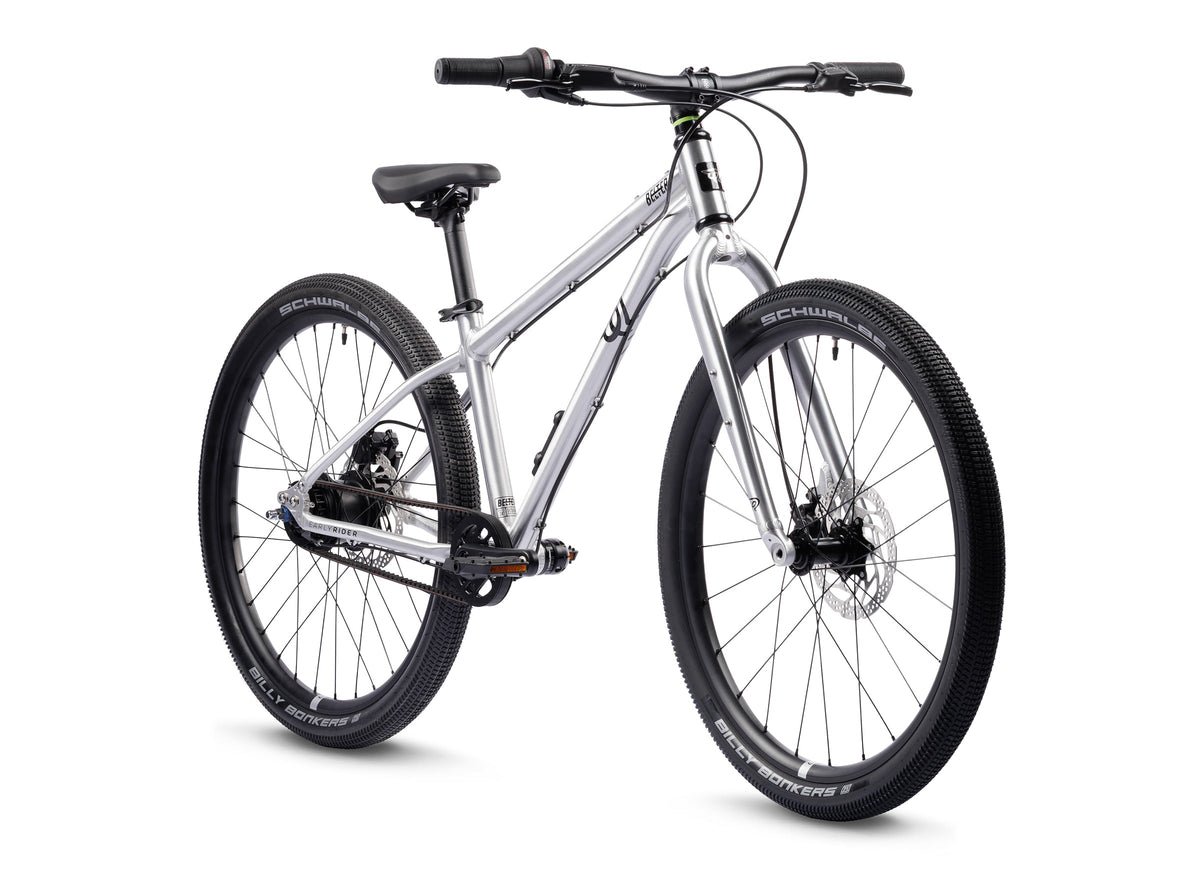

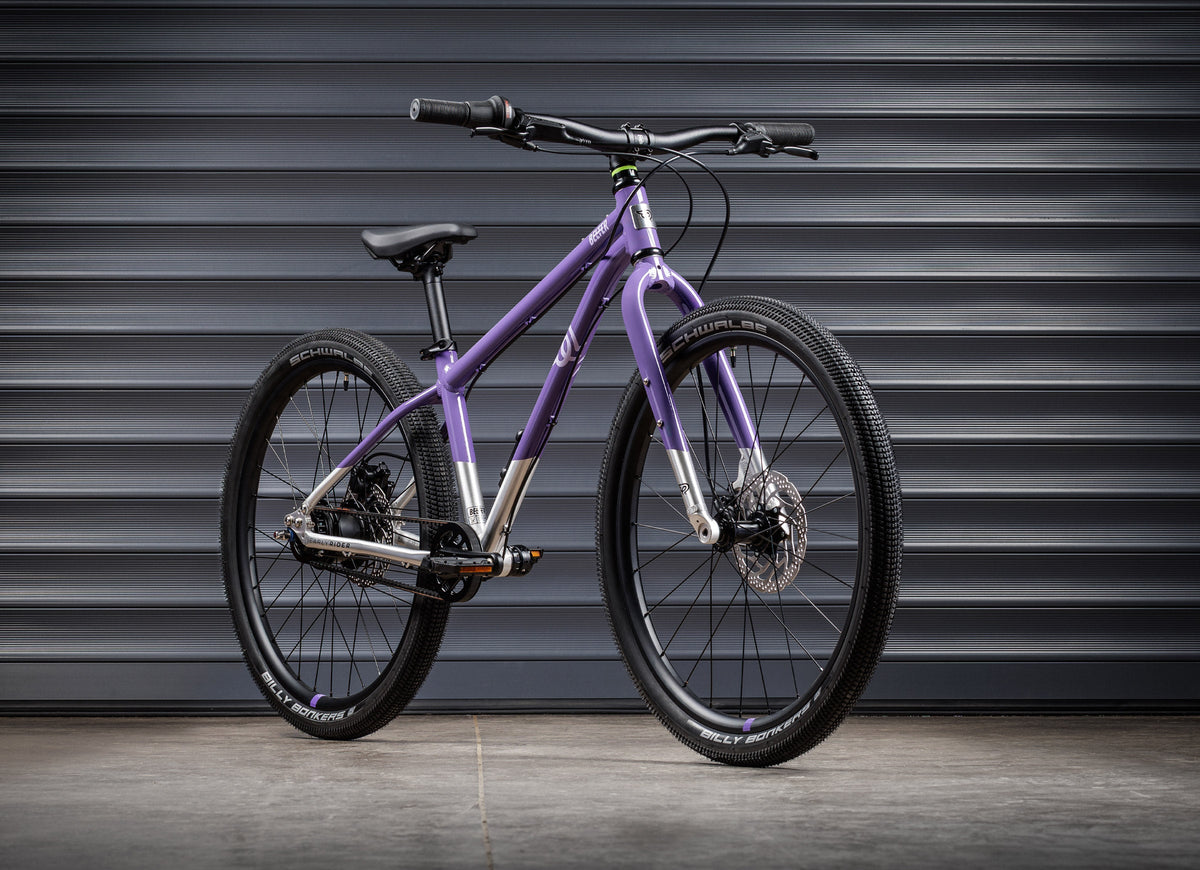

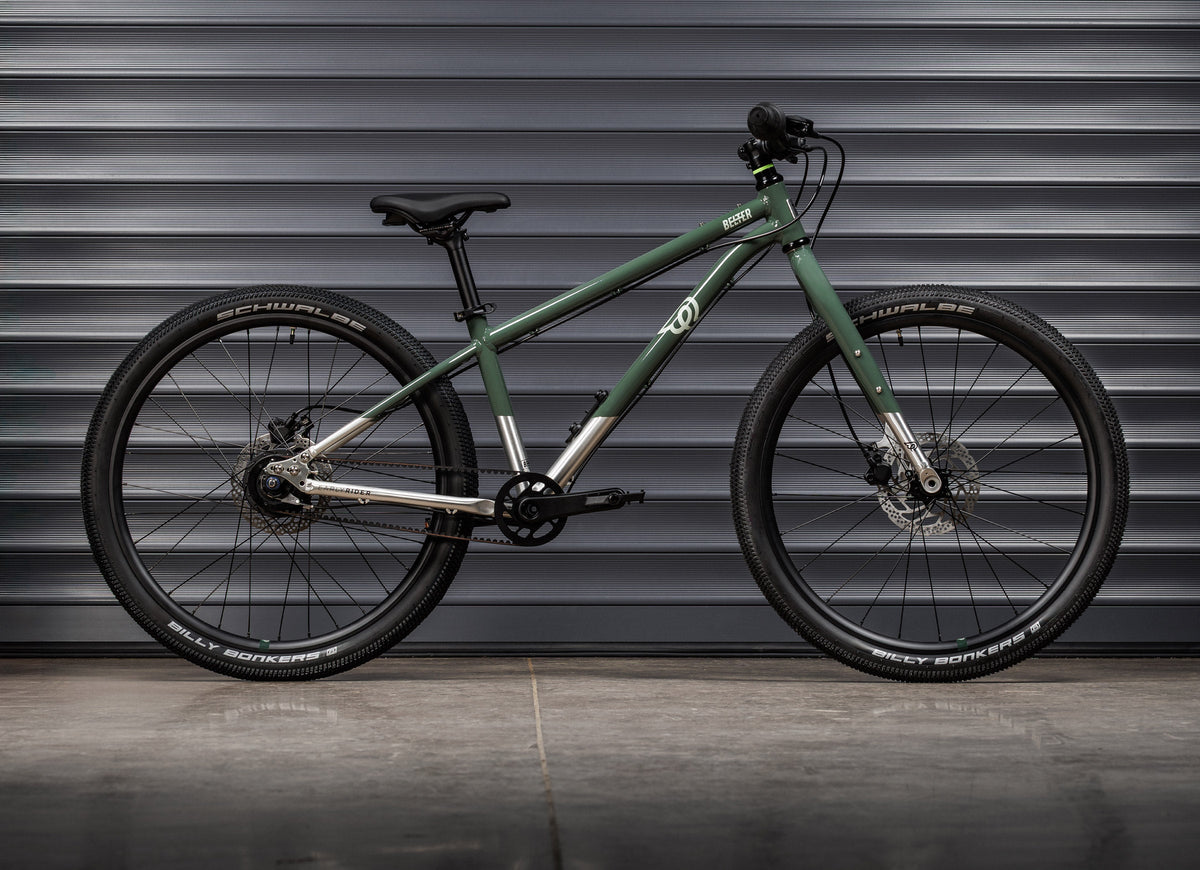

Ready for more challenging city rides, this 24" bike is built with a lightweight aluminium frame and updated geometry for superior stability and handling. Featuring a Shimano Nexus 8-speed internal hub, shifting is smooth and reliable, while the Tektro hydraulic disc brakes provide precise stopping power in any condition. The low-maintenance 12mm belt drivetrain, sealed bearing wheels, and Schwalbe Billy Bonkers 2.0" tires offer durability and comfort. With smaller diameter grips and kid-friendly gearing, this bike is perfect for young riders ready to take on the urban jungle with confidence.

Assembly instructions

Your bike will arrive carefully packaged and boxed with the front and rear wheel detached. Attach both wheels using the bolts supplied and install the gearing mechanism. The handlebar will be ziptied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.

Key features

Inside leg: 64cm

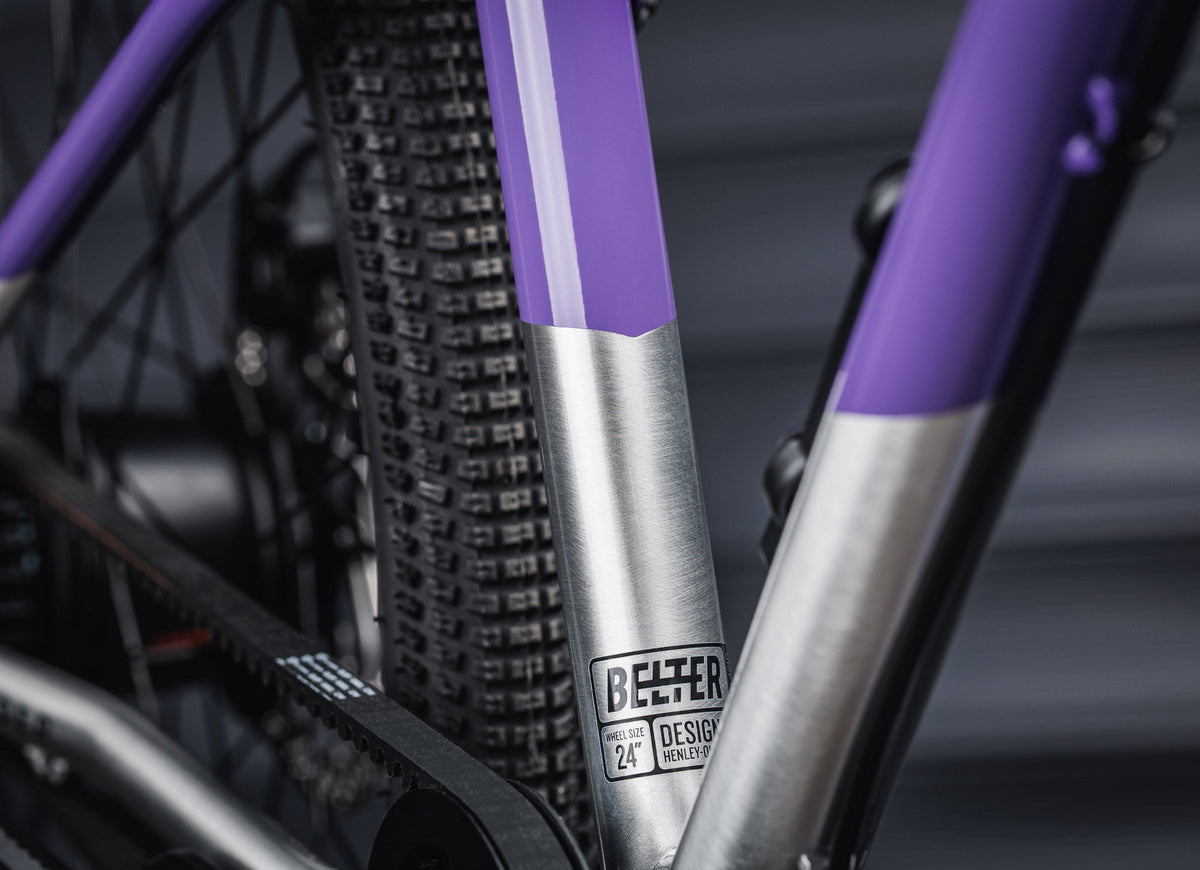

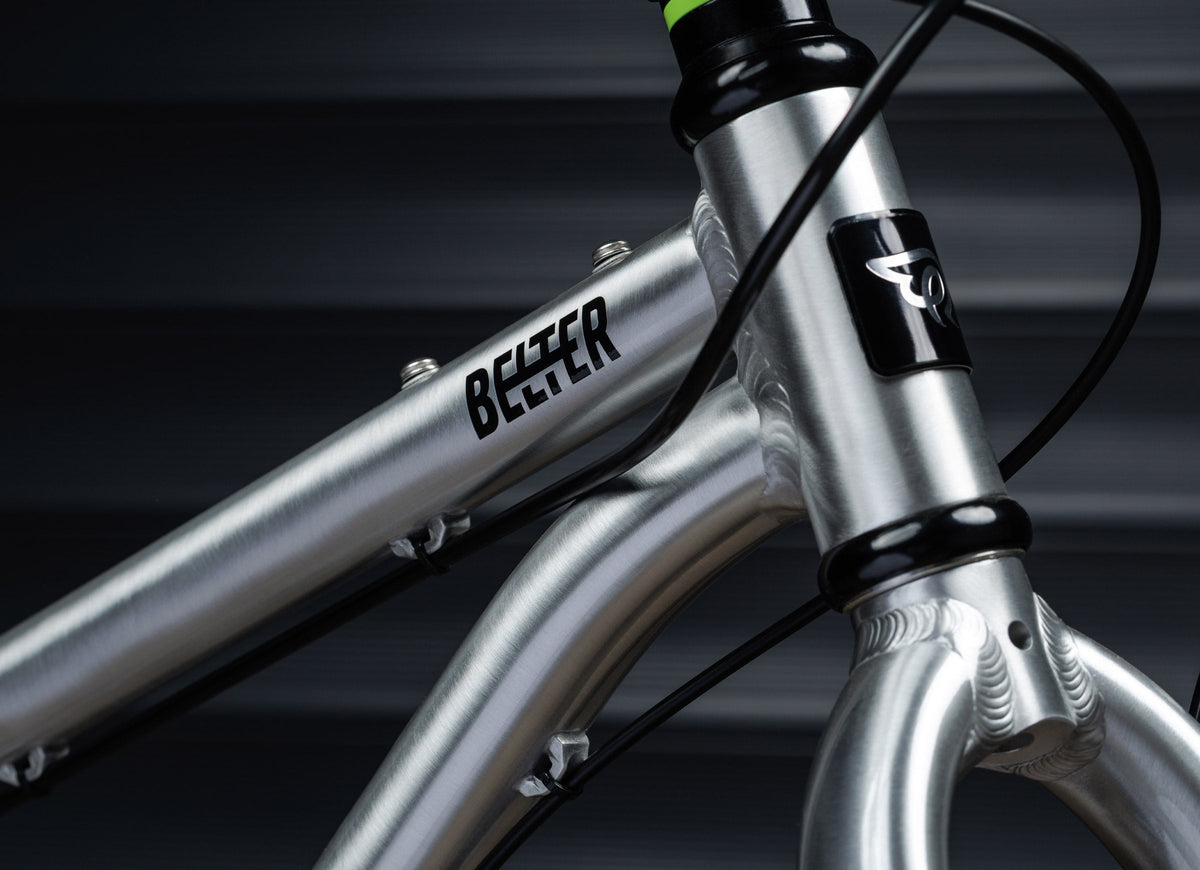

Frame: Hand brushed AL6061, disc frame, forged sliding drop outs
Fork: Hand brushed AL6061, disc, forged bolt thru drop outs

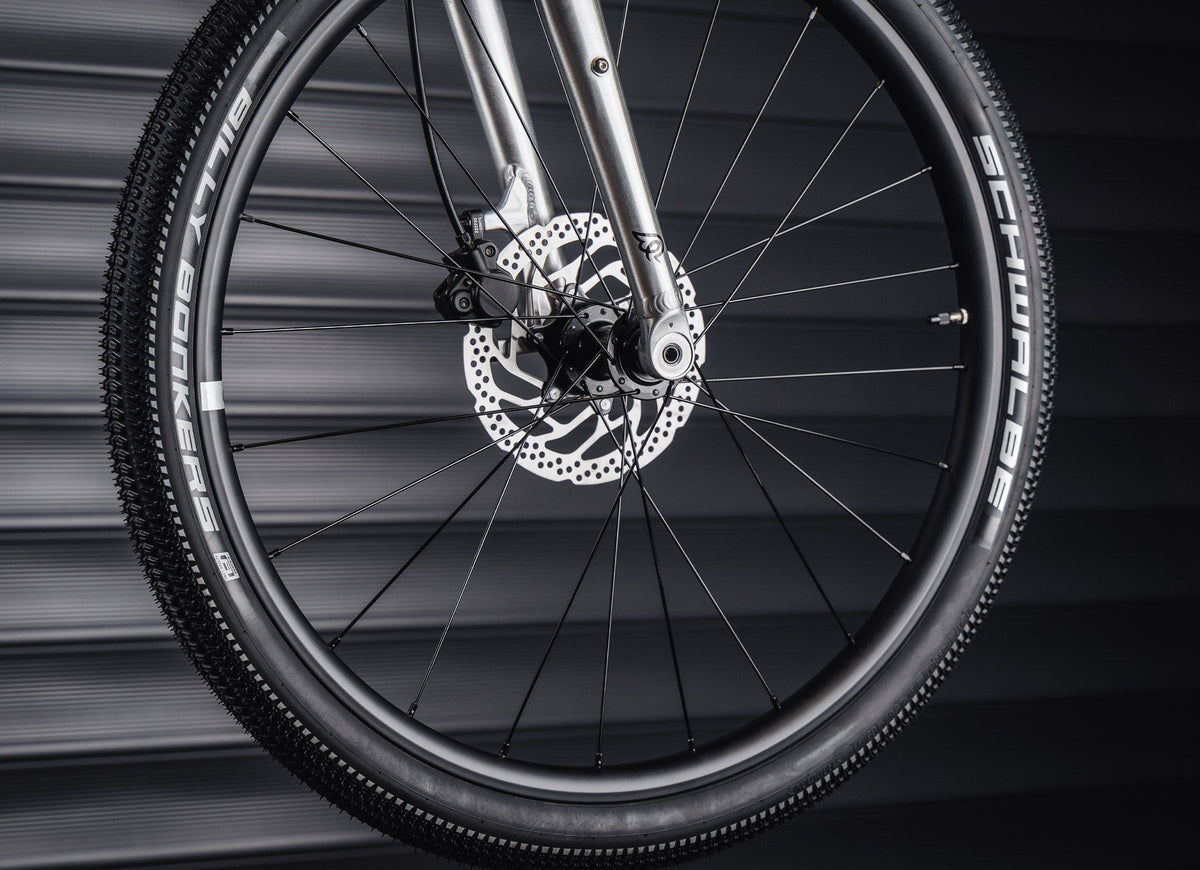

Brakes: Tektro hydraulic Jr, 160mm rotors
Tyres: Schwalbe Billy Bonkers 24 x 2.0", 60TPI WB
Weight: 10.2kg w/o pedals

Specifications

Standover height: 58.5cm

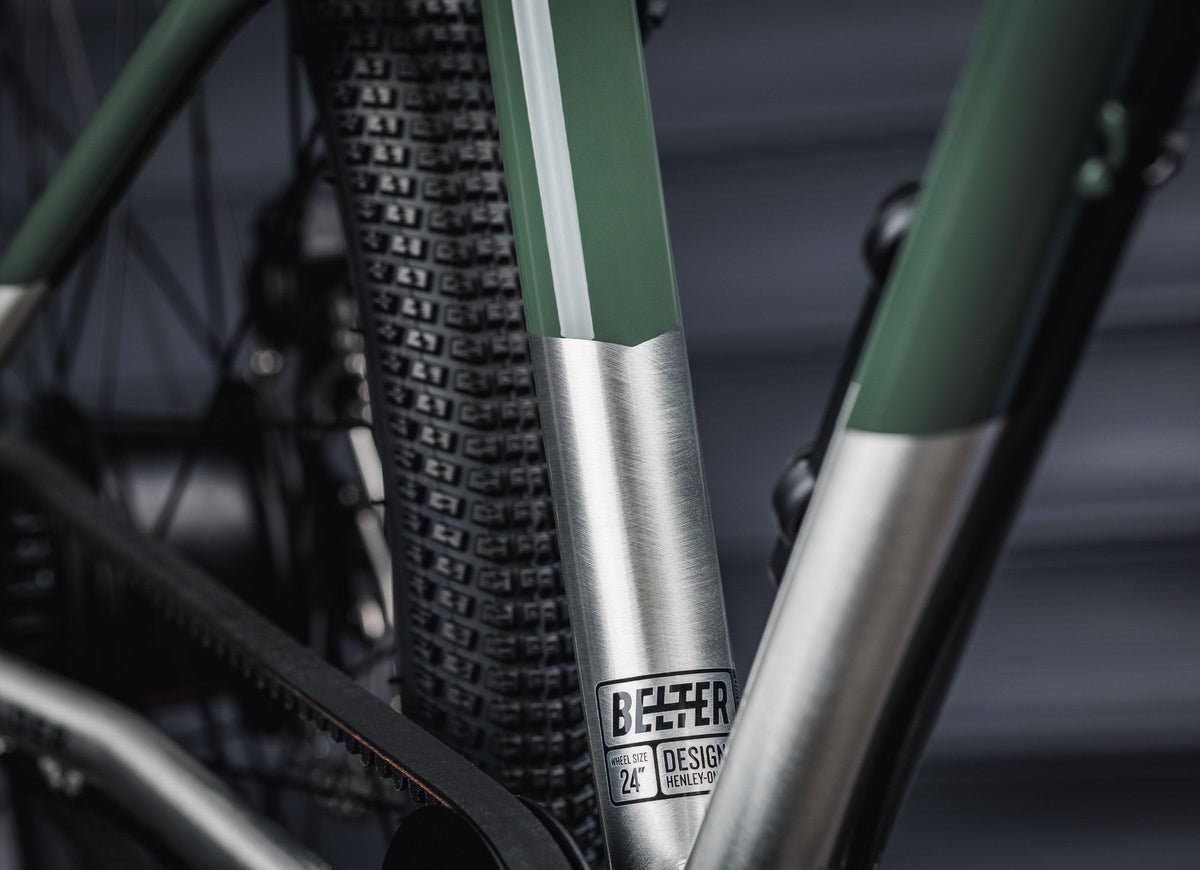

Frame: Hand brushed AL6061, disc frame, forged sliding drop outs
Fork: Hand brushed AL6061, disc, forged bolt thru drop outs
Steerer: AL6061
Cranks: Scrux 130mm forged crankset
Pedals: ER platform pedal, alloy, cartrdige bearing
Bottom bracket: Crux external cup 24mm
Rims: Front 22H, rear 32H double walled AL6061

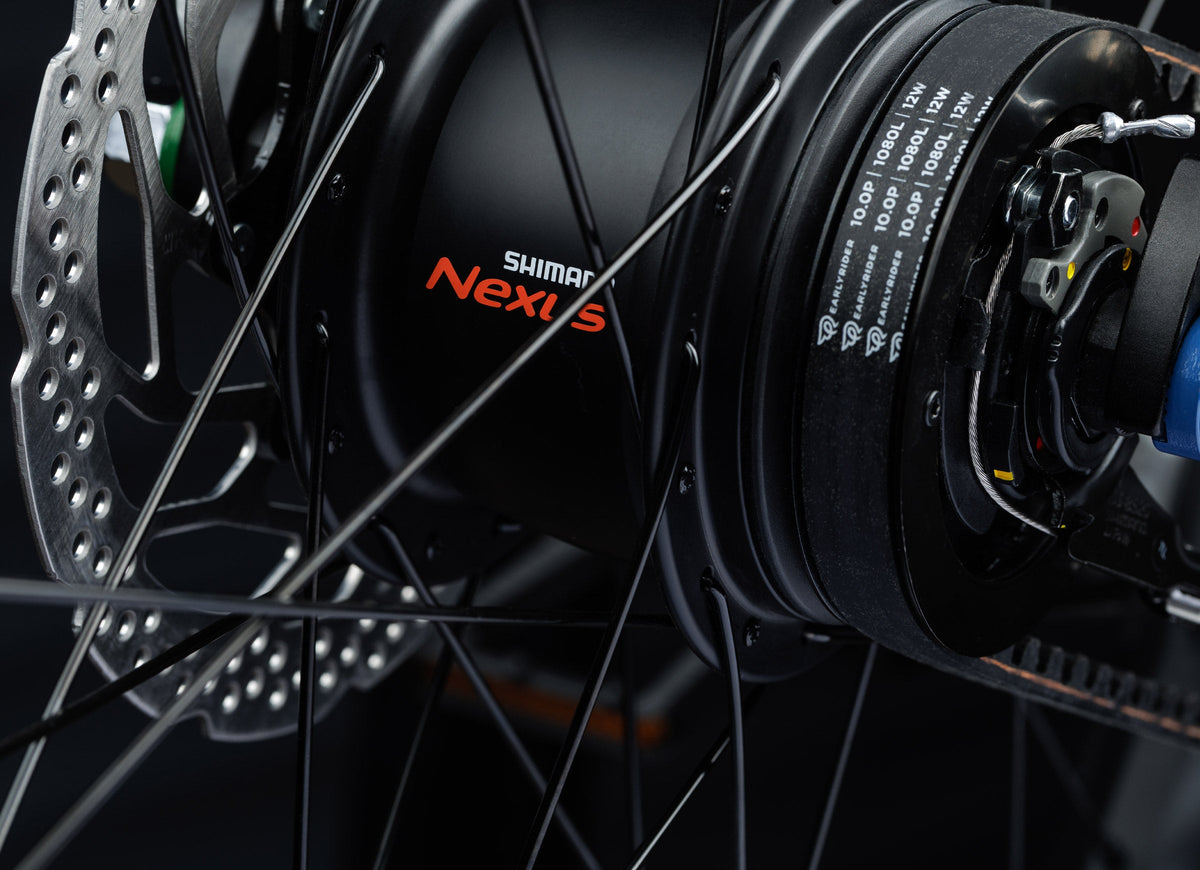

Rear hub: Shimano nexus c6001-8d (8spd)
Front hub: AL6061 12 x 100mm bolt thru 24H
Axles: AL6061

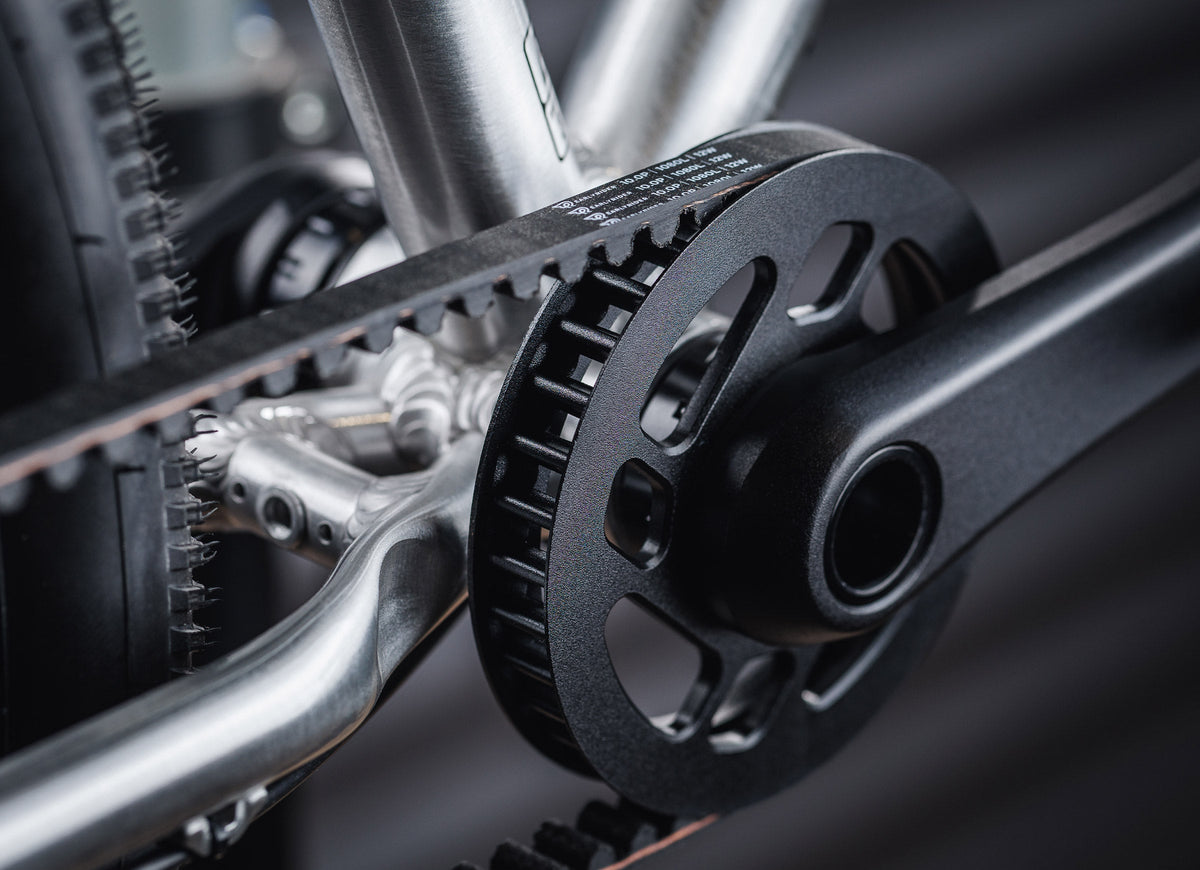

Belt: Early Rider 1080mm x 10.0P x 12mm width
Front sprocket: AL6061 34T dual guard
Weight: 10.2kg w/o pedals
Rear sprocket: AL6061 25T dual guard

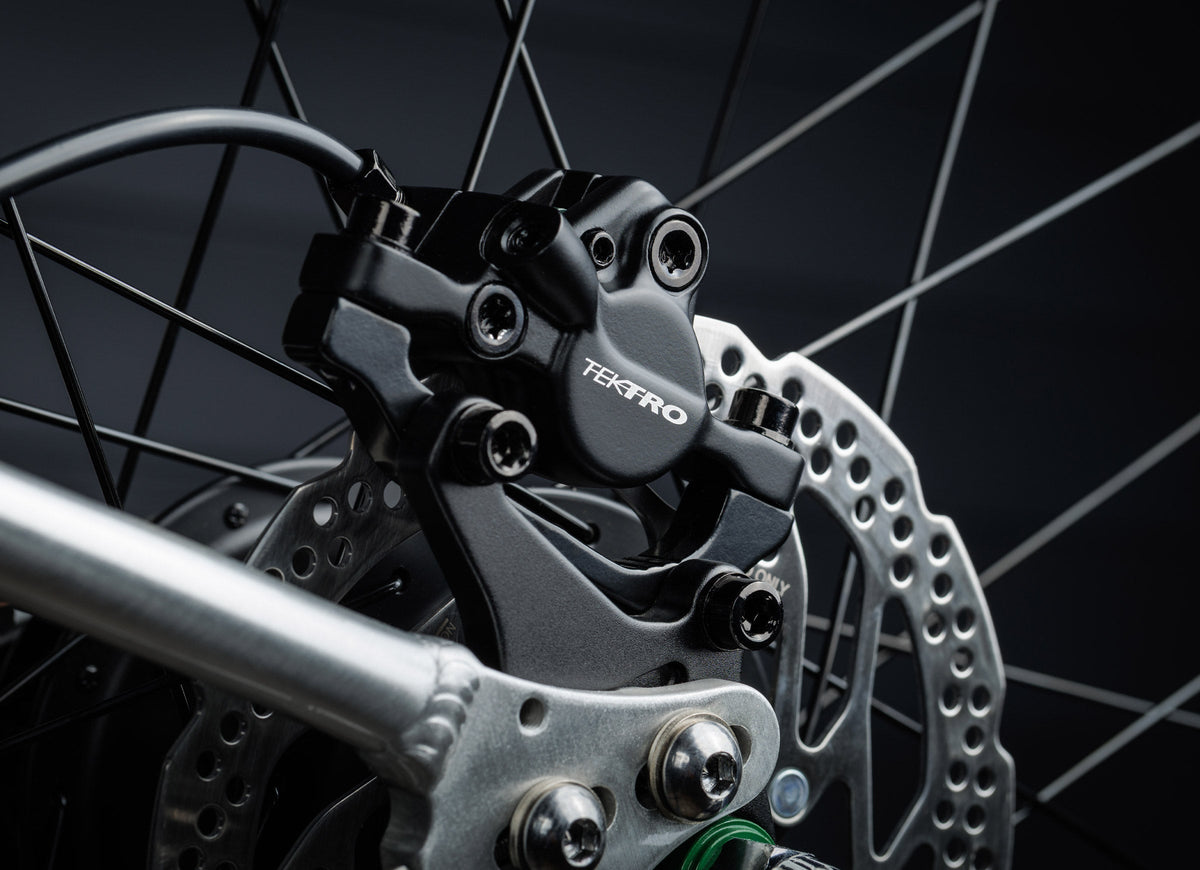

Brakes: Tektro hydraulic Jr, 160mm rotors
Levers: Tektro short reach

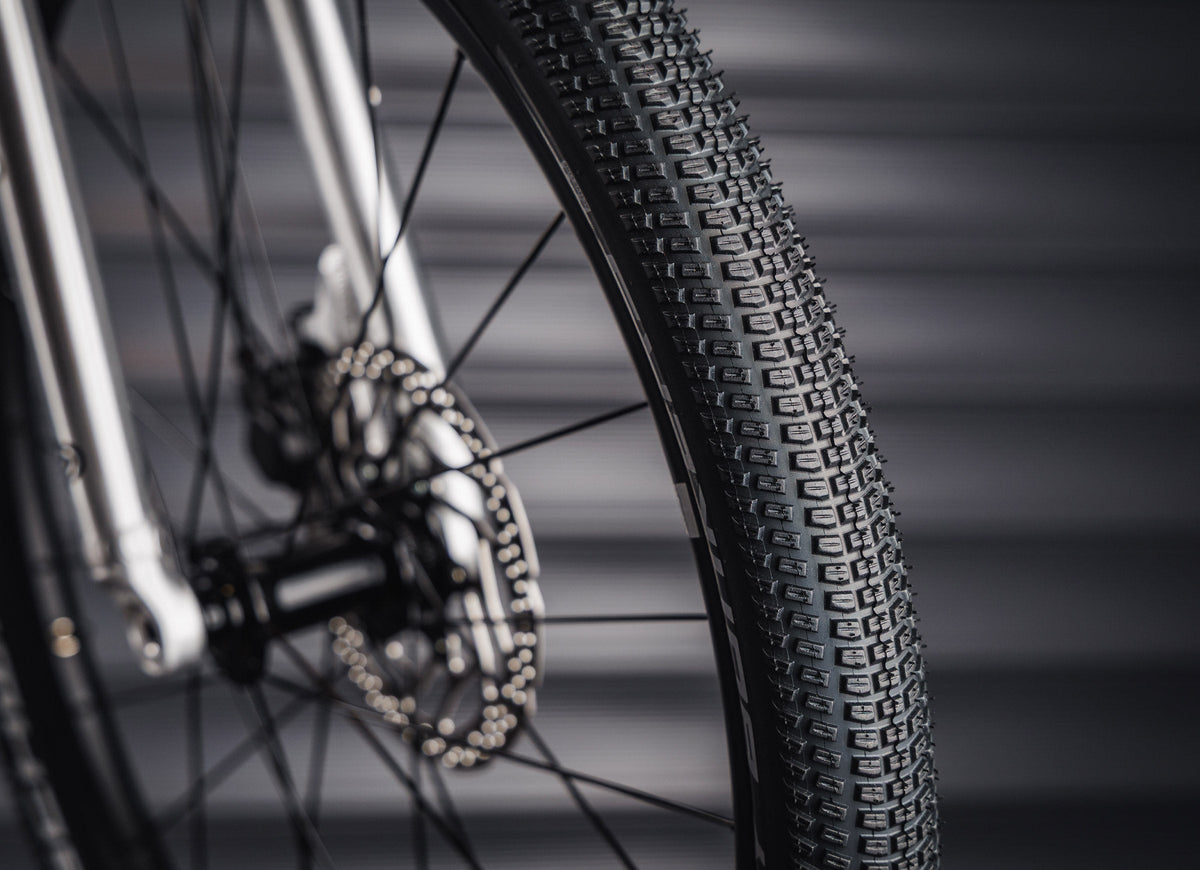

Front tyre: Schwalbe Billy Bonkers 24 x 2.0", 60TPI WB
Rear tyre: Schwalbe Billy Bonkers 24 x 2.0", 60TPI WB
Headset: 1 1/8” cartridge bearing, conventional
Stem: Forged AL6061, 35mm reach

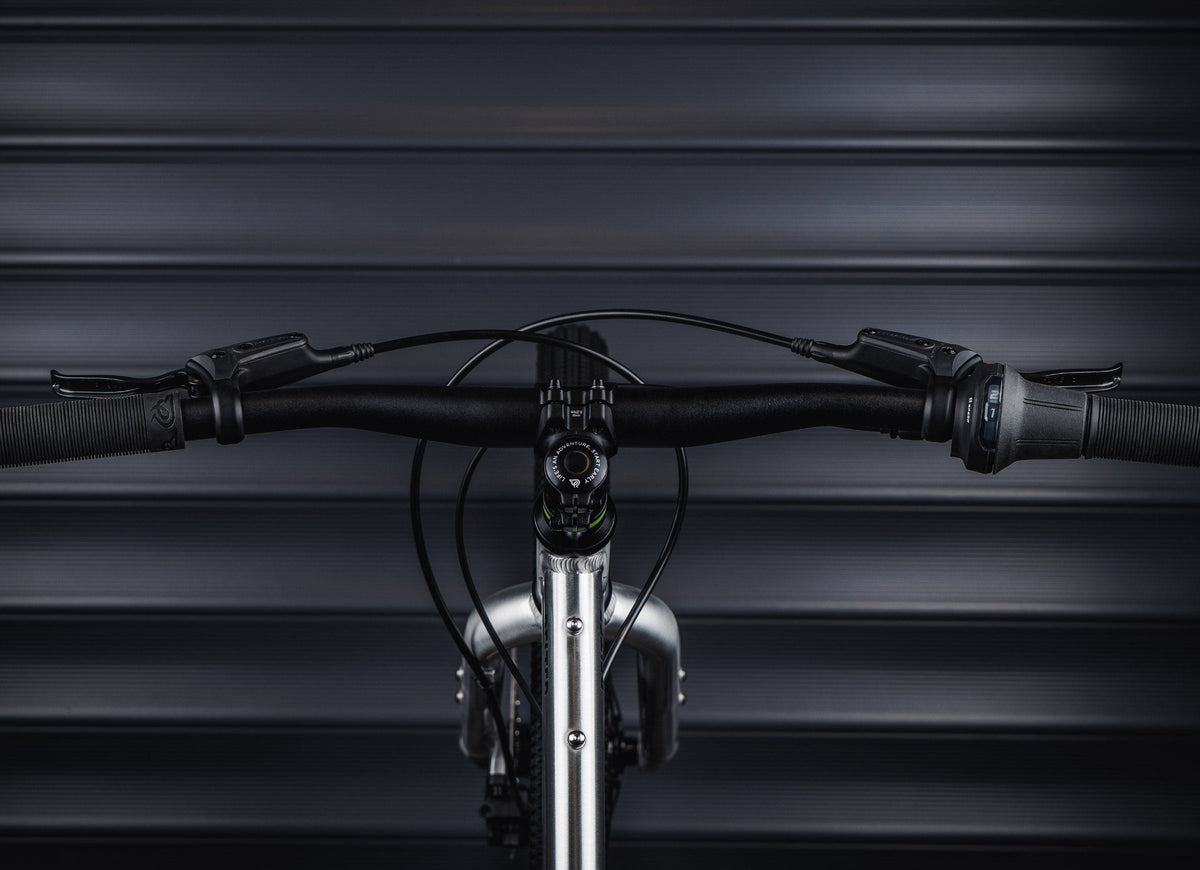

Bars: 640mm double butted AL6061, 30mm rise
Grips: ER wing 120l, 70r
Seat post: 27.2mm, AL6061, 300mm

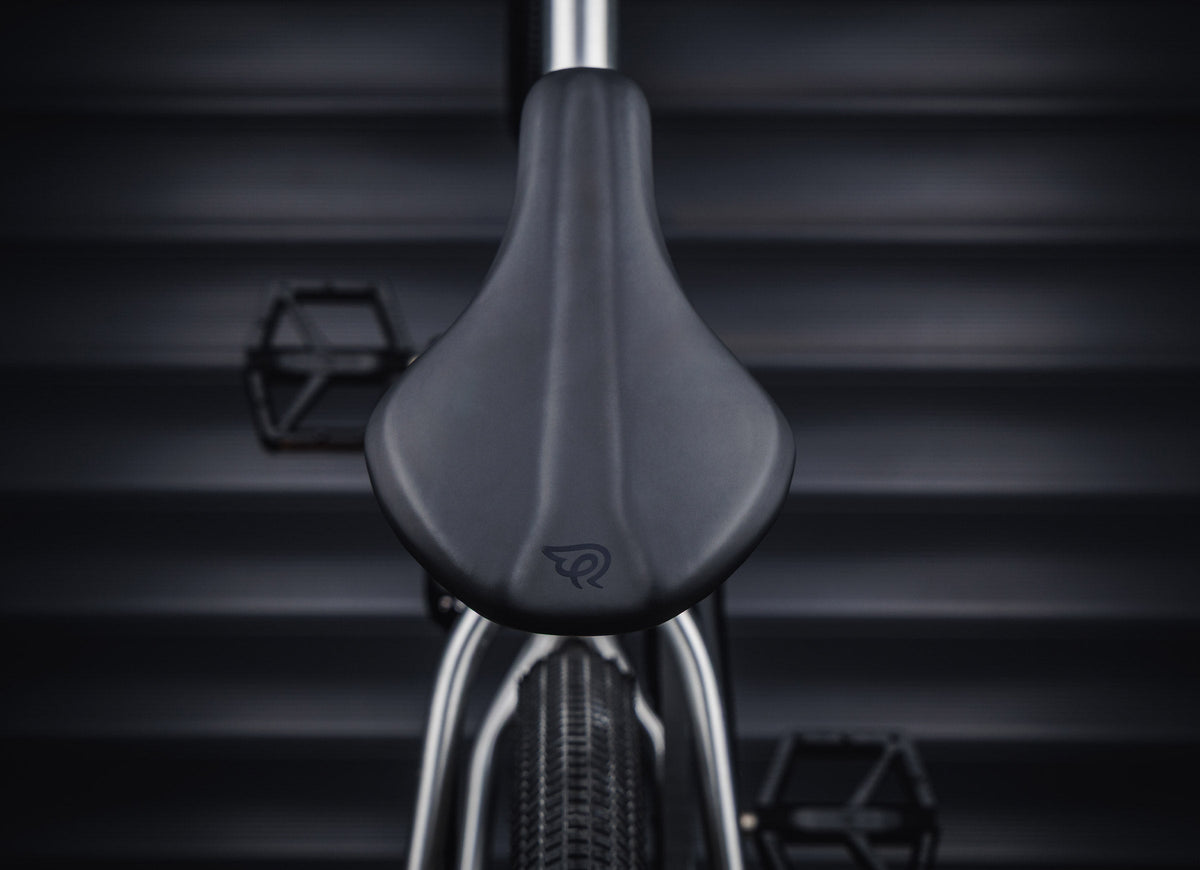

Saddle: ER wing 2
Seat clamp: ER bolt, 31.8mm

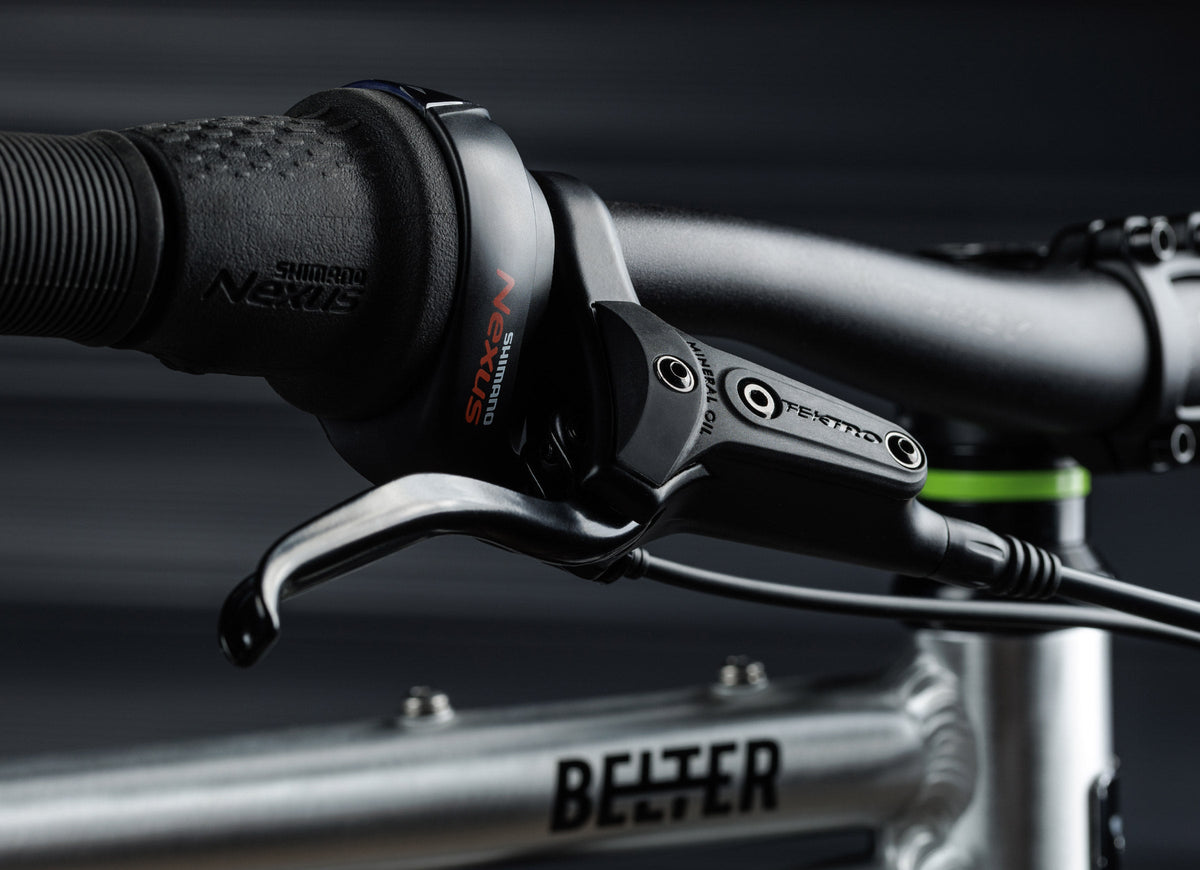

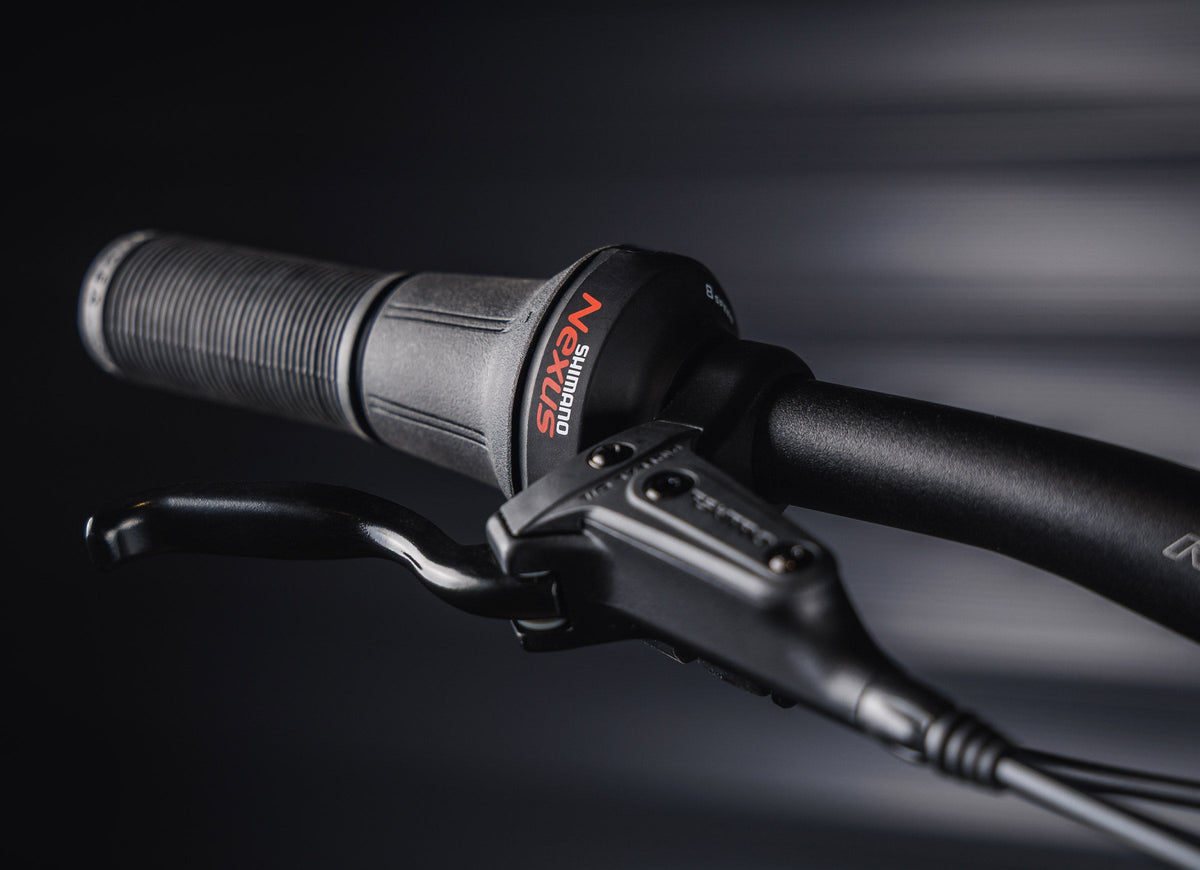

Shifter: Shimano nexus twist, 8spd

Geometry

Wheelbase: 992.2mm
Head Angle: 67°
Seat Tube Length: 320mm
Chainstay Length: 392mm
Seat Tube Angle: 73°
Standover Height: 585mm
Top Tube Length: 513.5mm
Head Tube Length: 92mm
Stack: 497.3mm
Reach: 361.5mm
Fork Length: 410mm

View the user manual (PDF)
