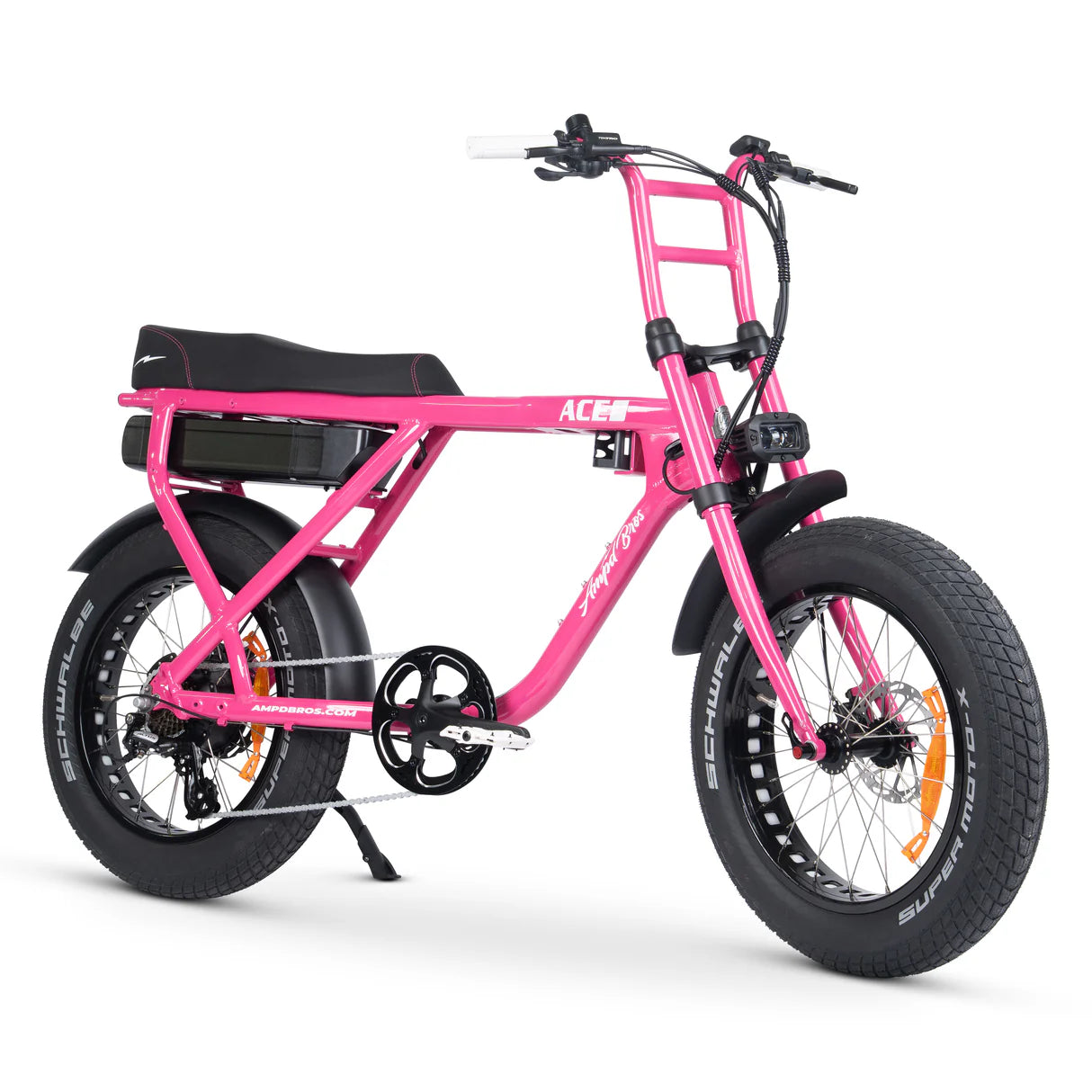

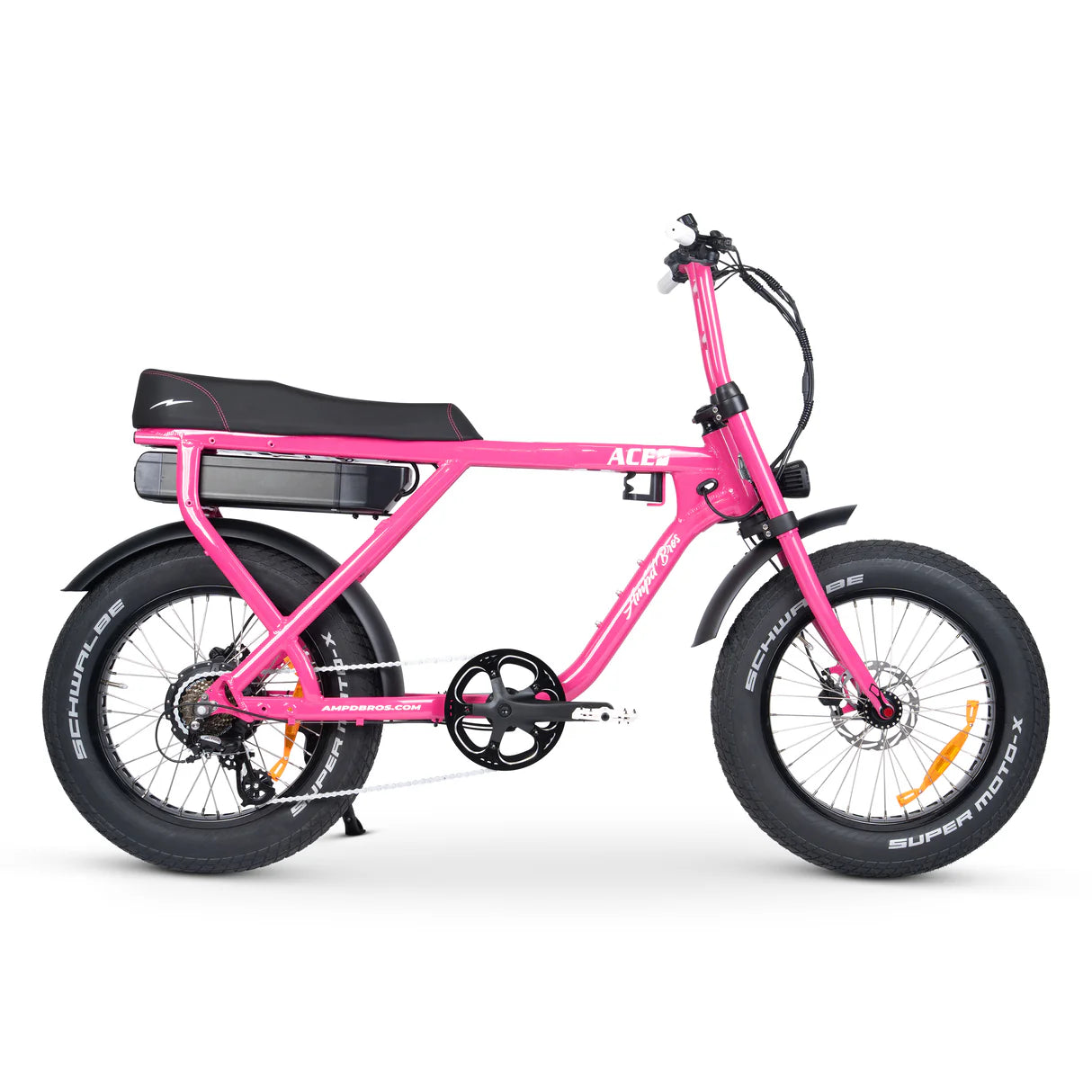

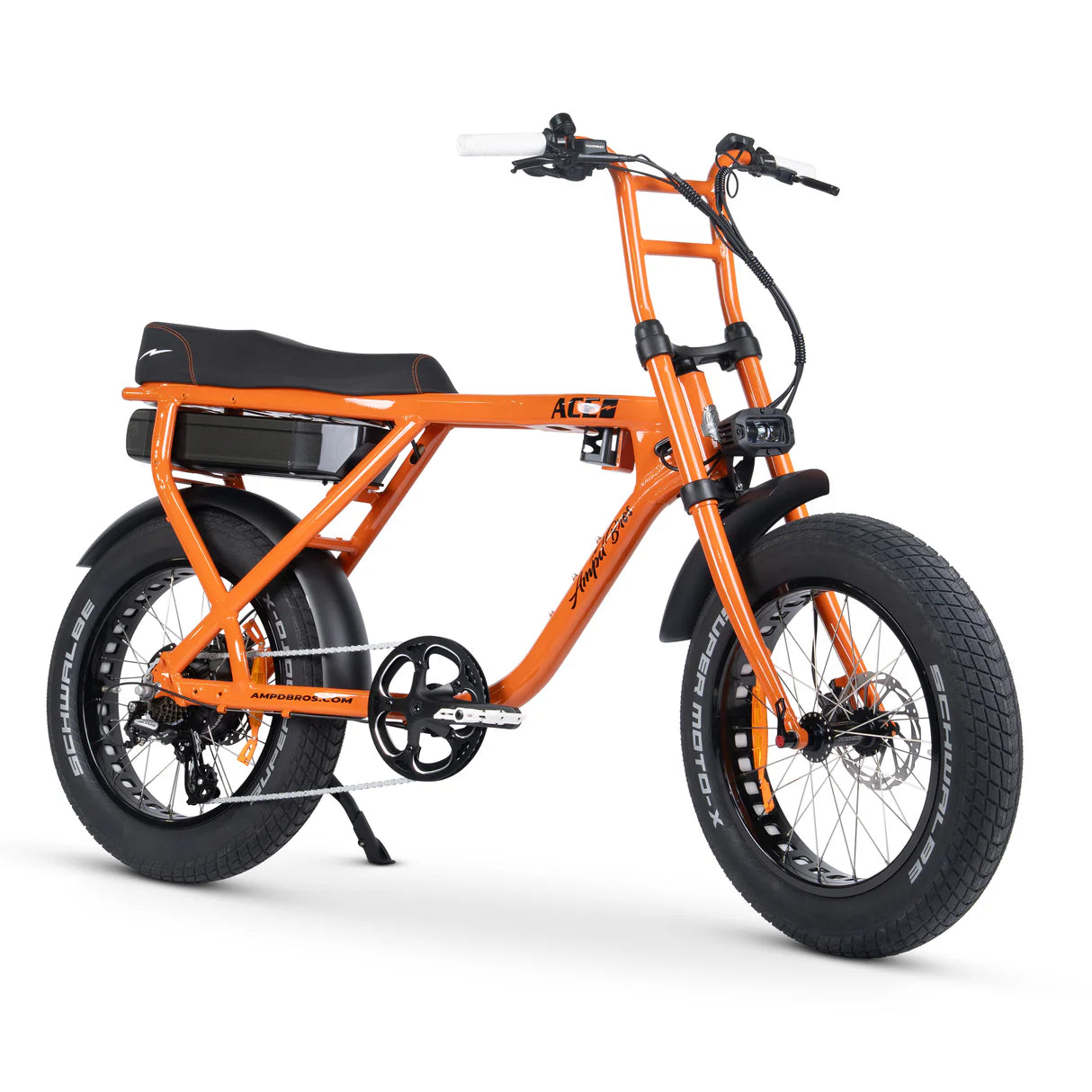

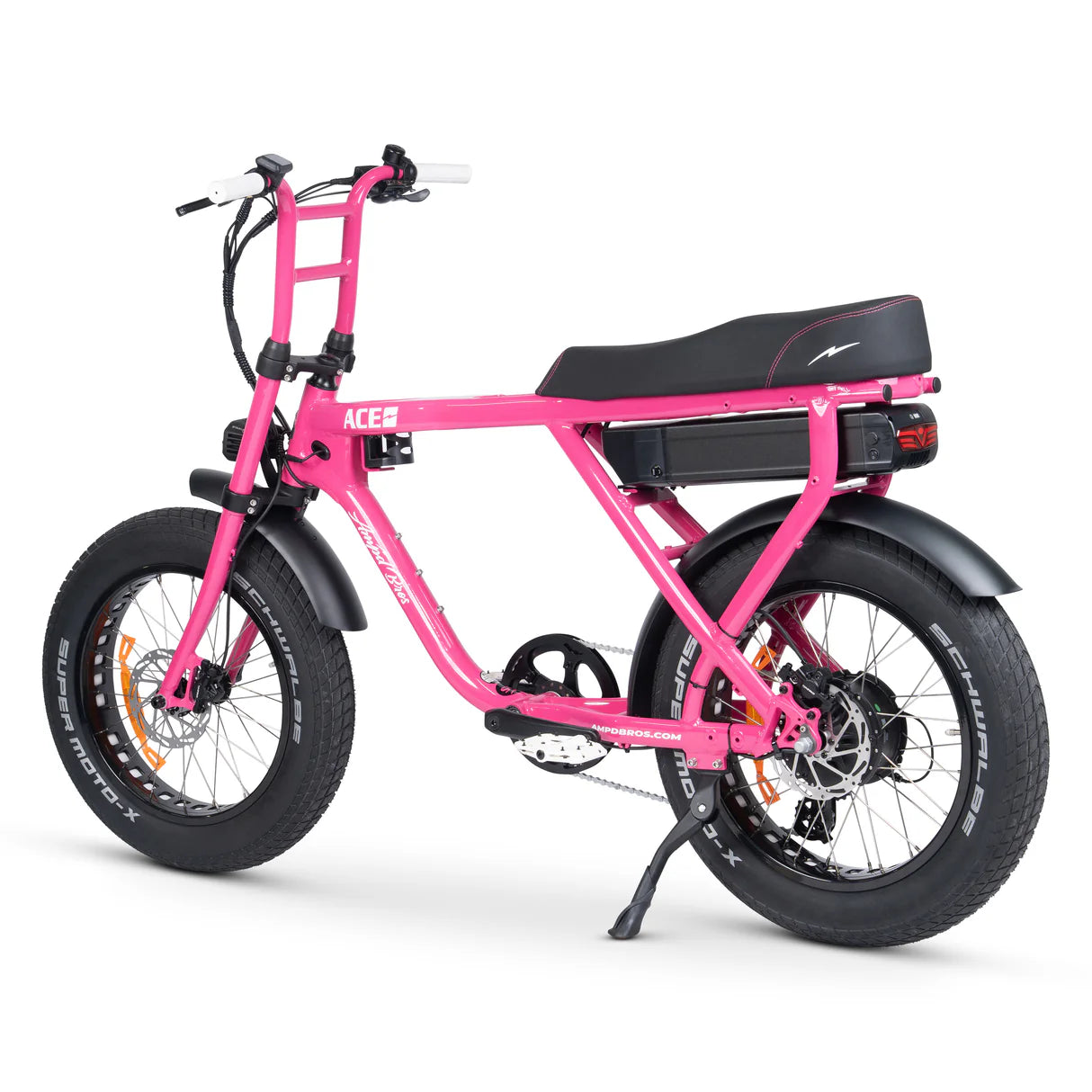

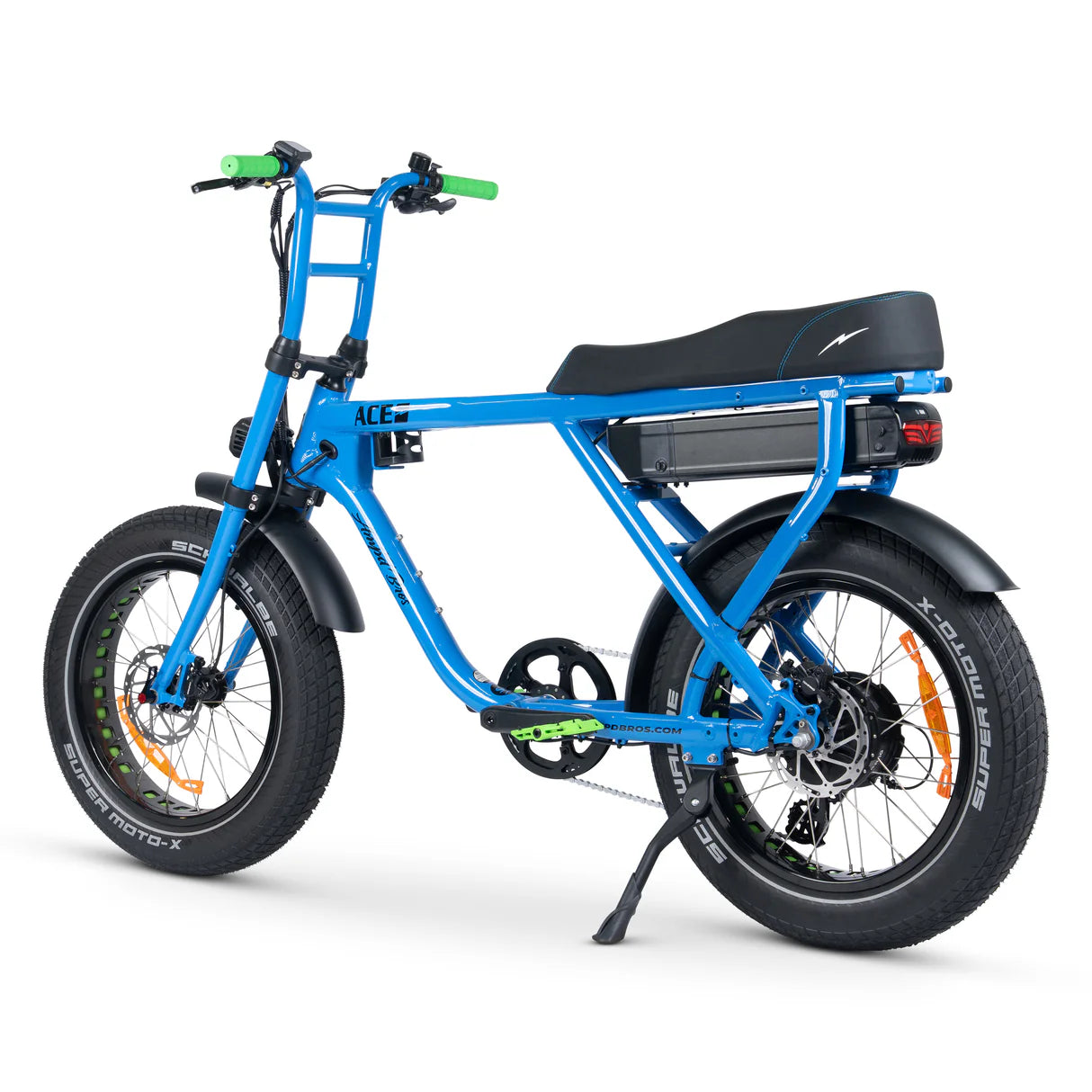

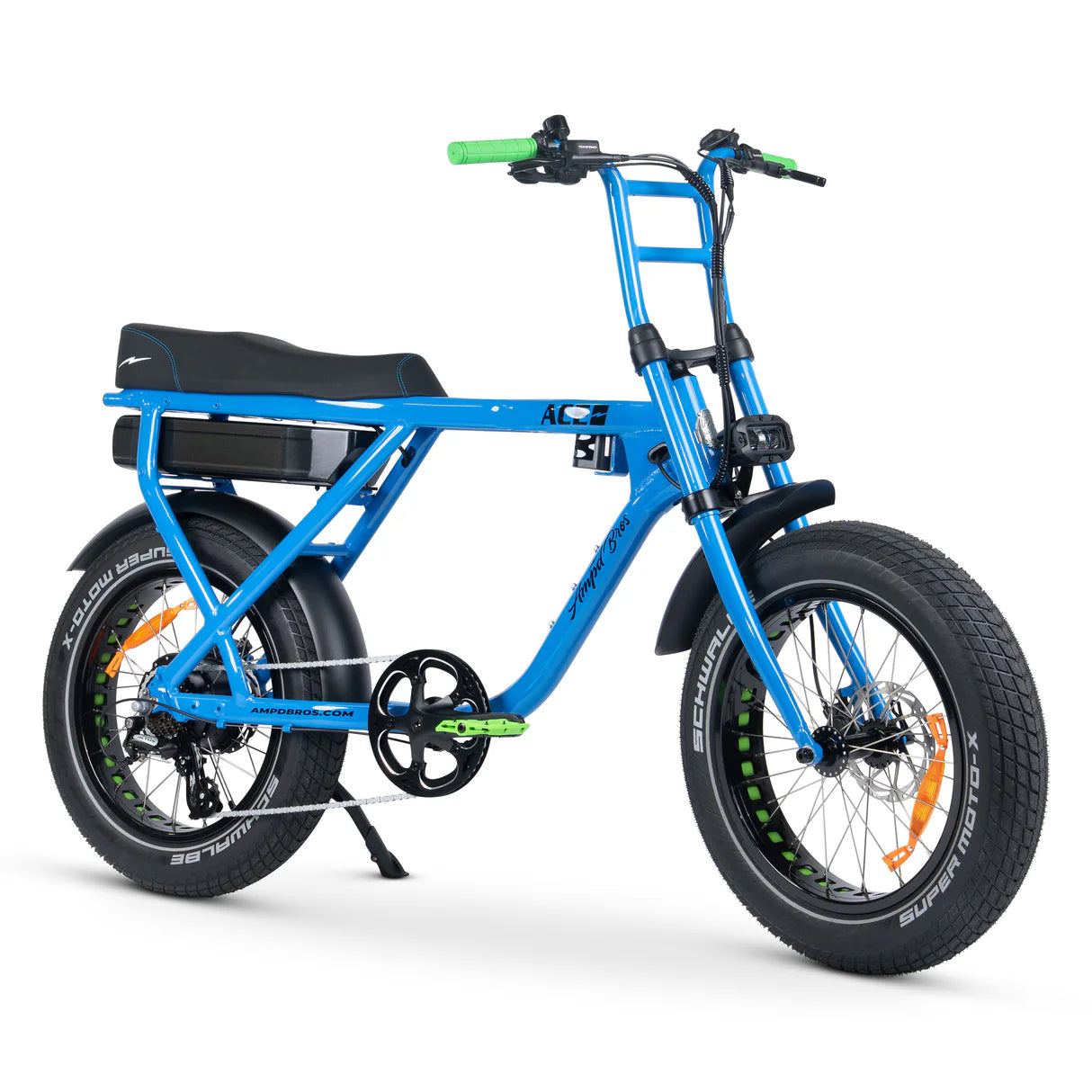

The ACE-X STREET takes the iconic ACE-X platform and injects a bold new attitude for 2025. With striking colour combinations and street-focused styling, this model delivers a head-turning presence while maintaining the rugged performance that riders across Australia continue to love. Designed as the ultimate urban cruiser, it blends power, comfort and unmistakable flair.
Built in collaboration with our in-house team, the ACE-X STREET continues the legacy of Australia's most sought-after fat tyre electric bike. Whether you're carving through city streets or cruising suburban lanes, this model offers a smooth, confident ride with the signature ACE blend of quality and performance.
What's New for the ACE-X STREET?
-

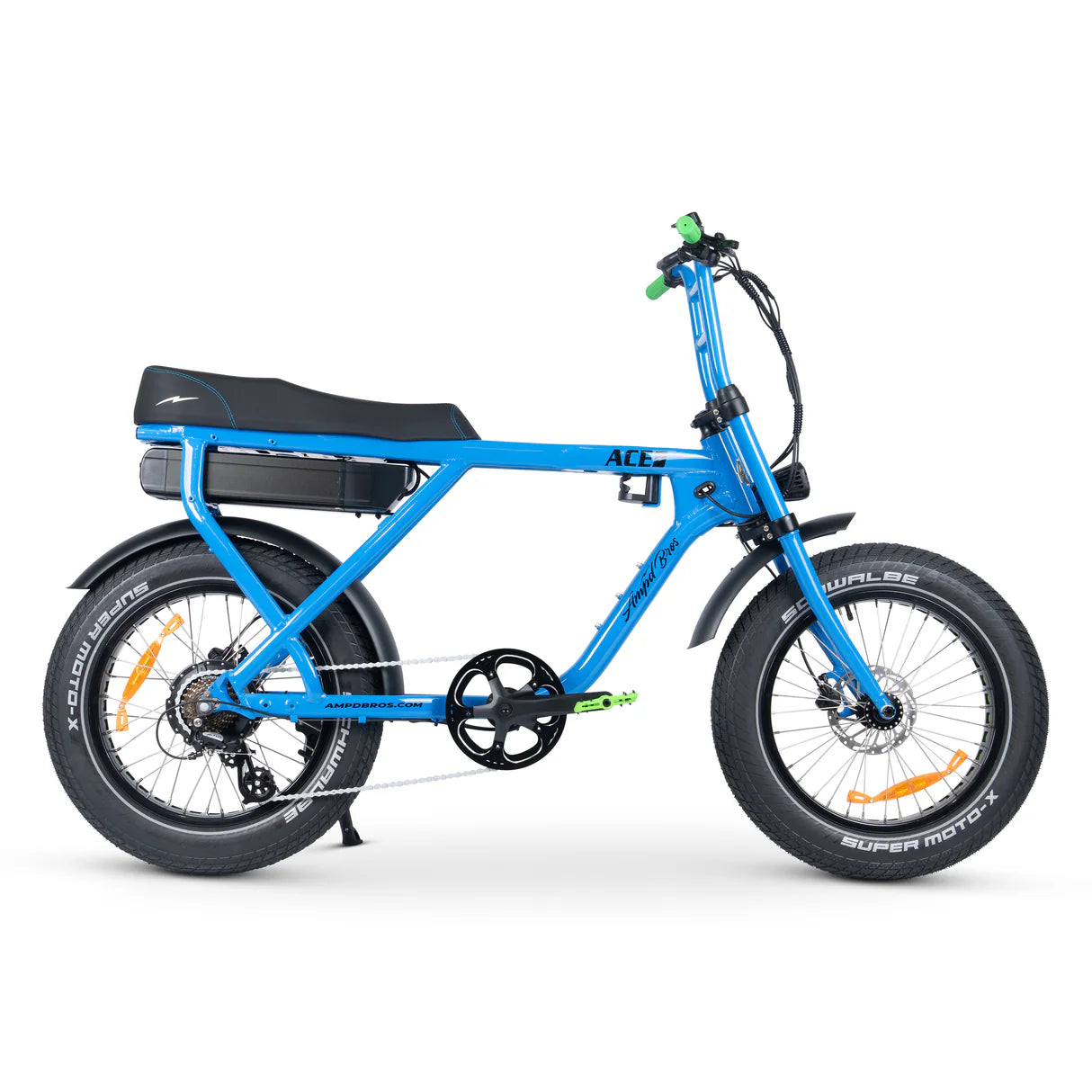

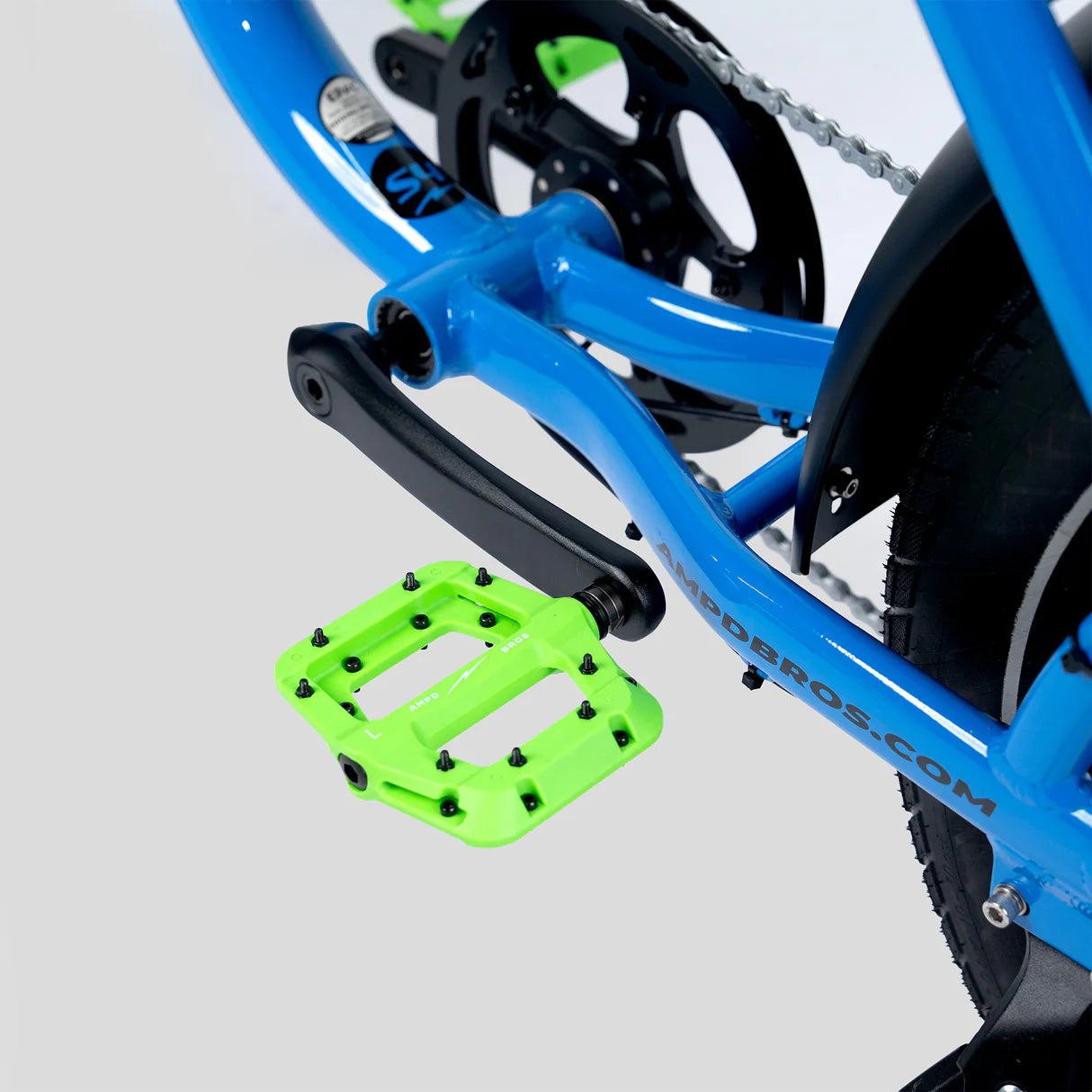

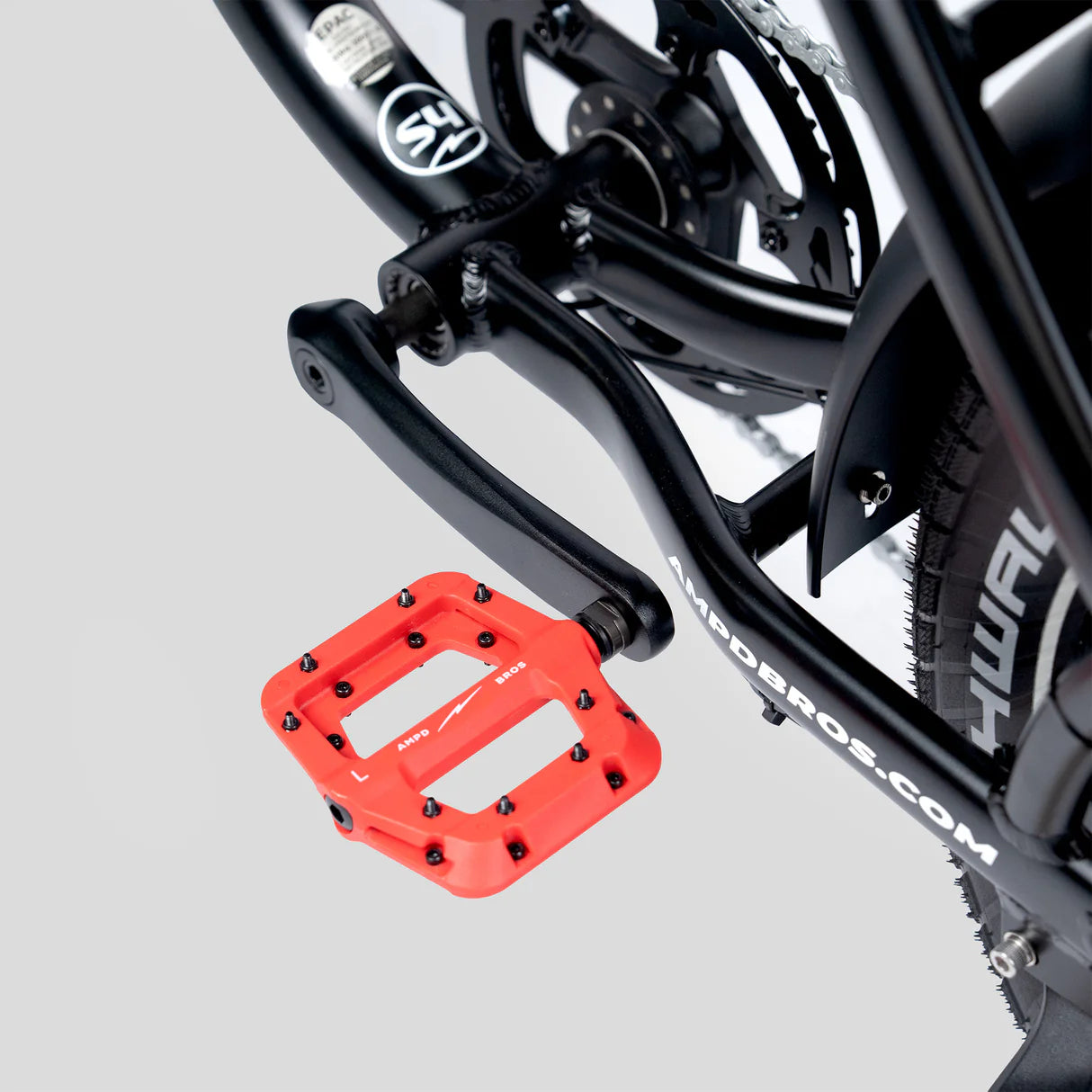

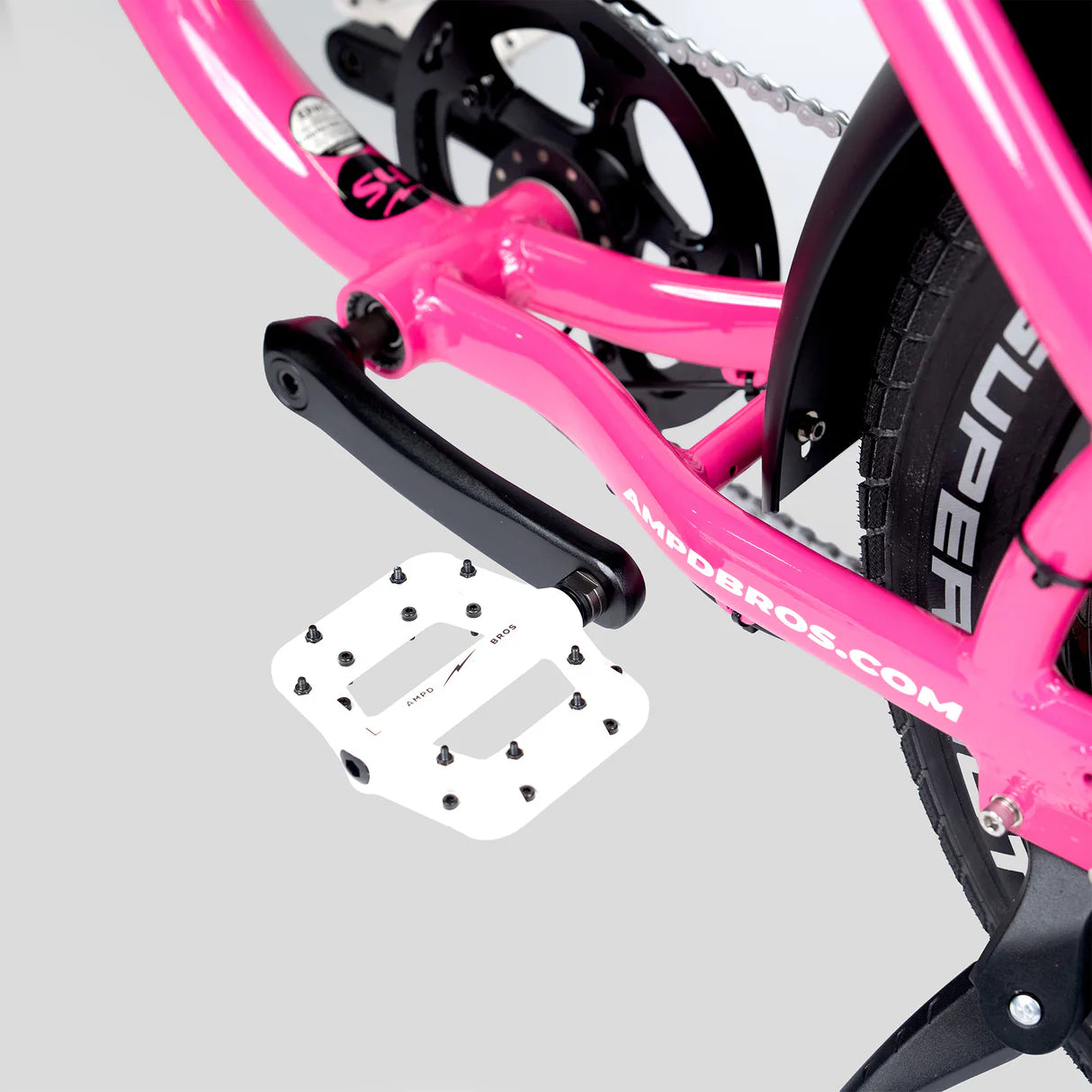

Bold New Colours – Stylish new combinations with uniquely matched pedals, grips, seat and wheels
-
52V 15AH Battery – More power, more range, more riding time
-

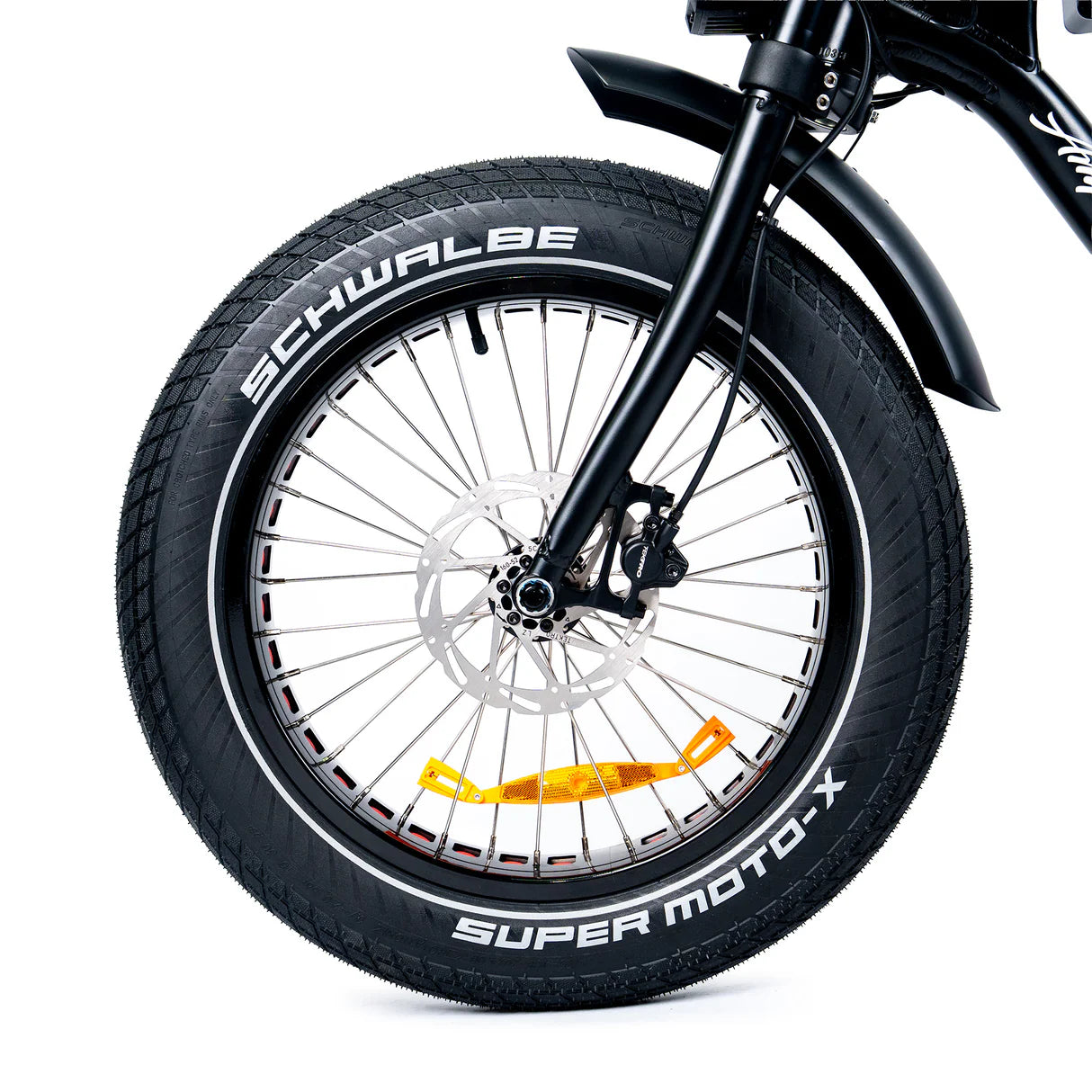

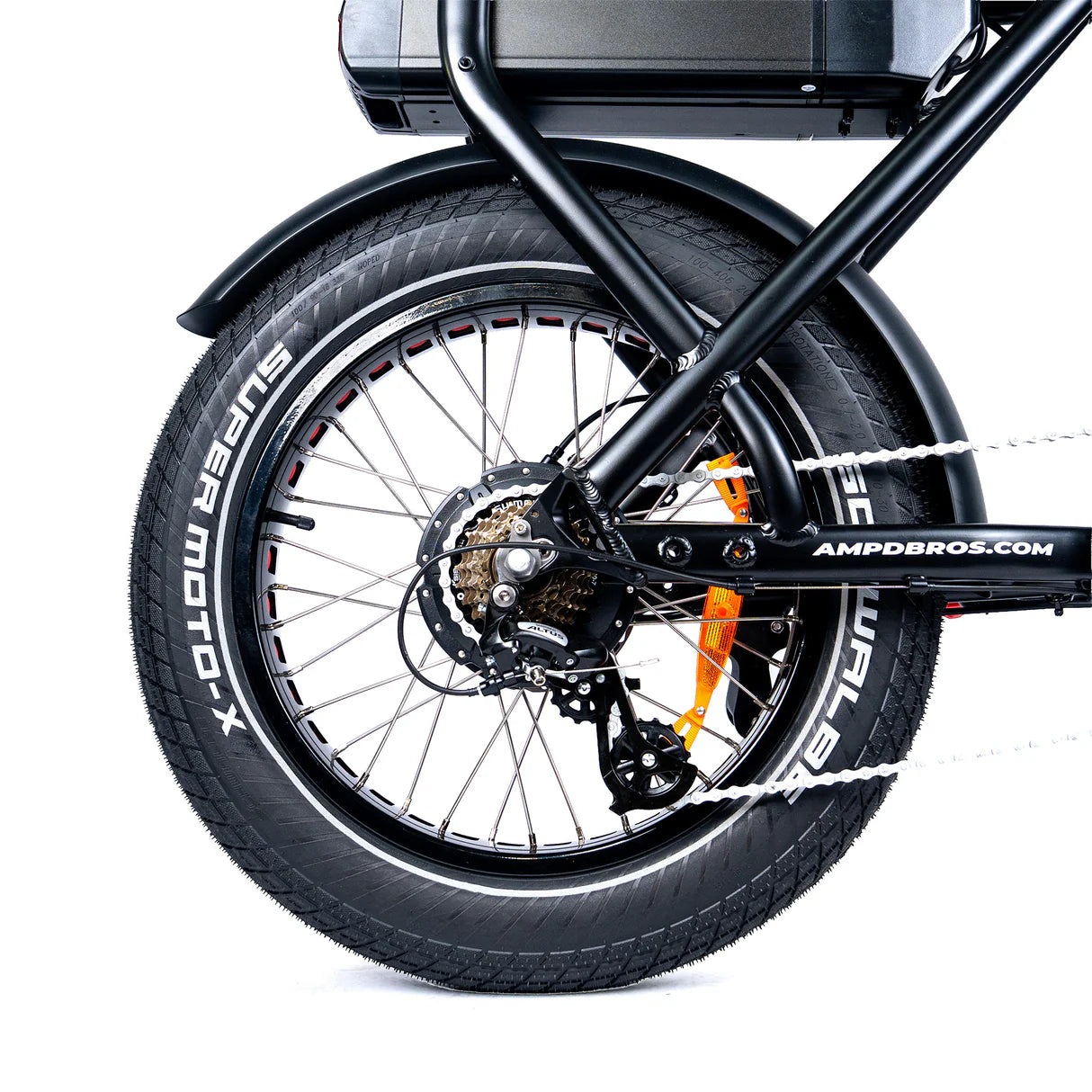

Schwalbe Super Moto X Tyres – Sleek street tyres with excellent grip and comfort
-

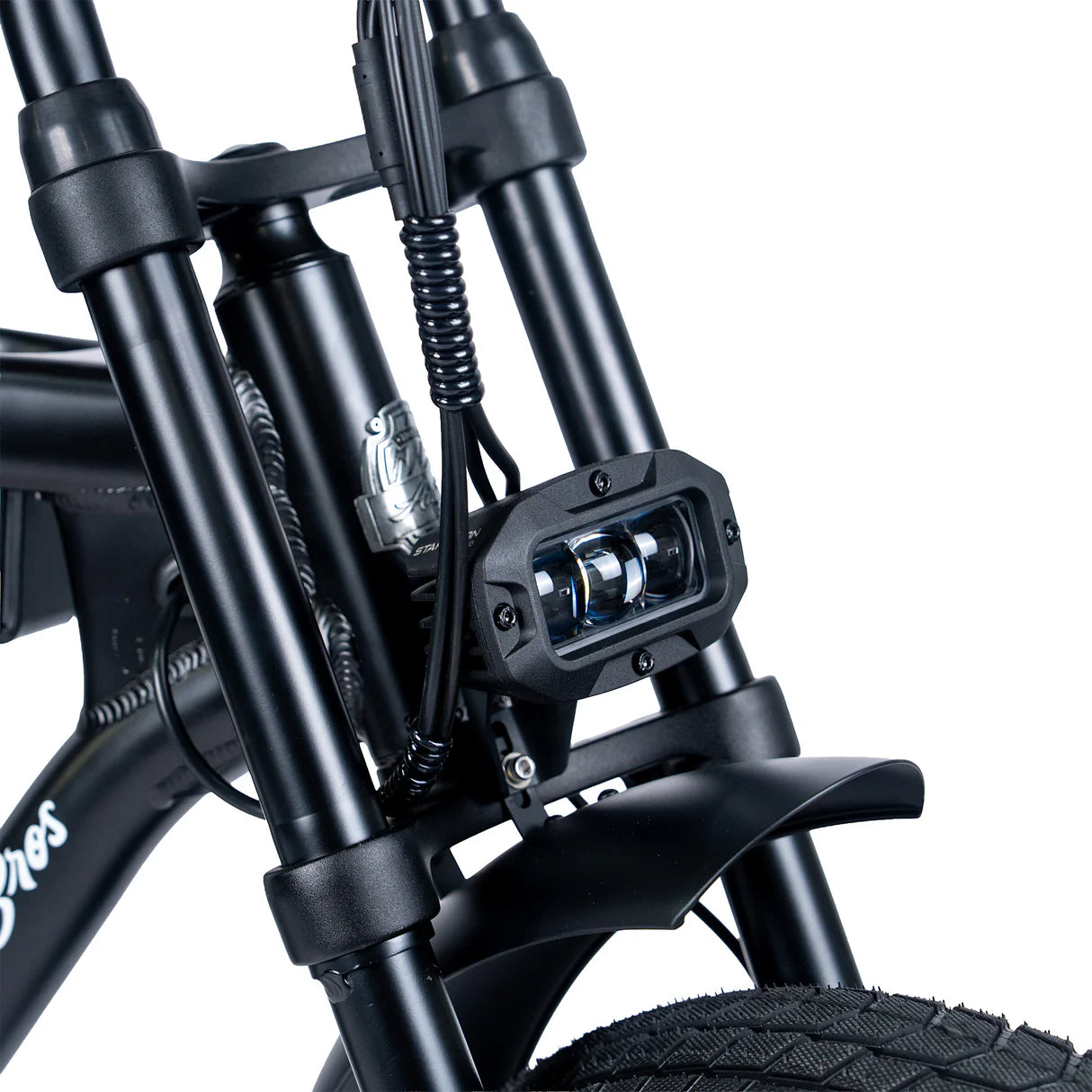

Rugged Aluminium LED Headlight – Increased visibility for confident cruising
-
Micro Intelligent Colour Display – Crisp, modern interface for essential riding data

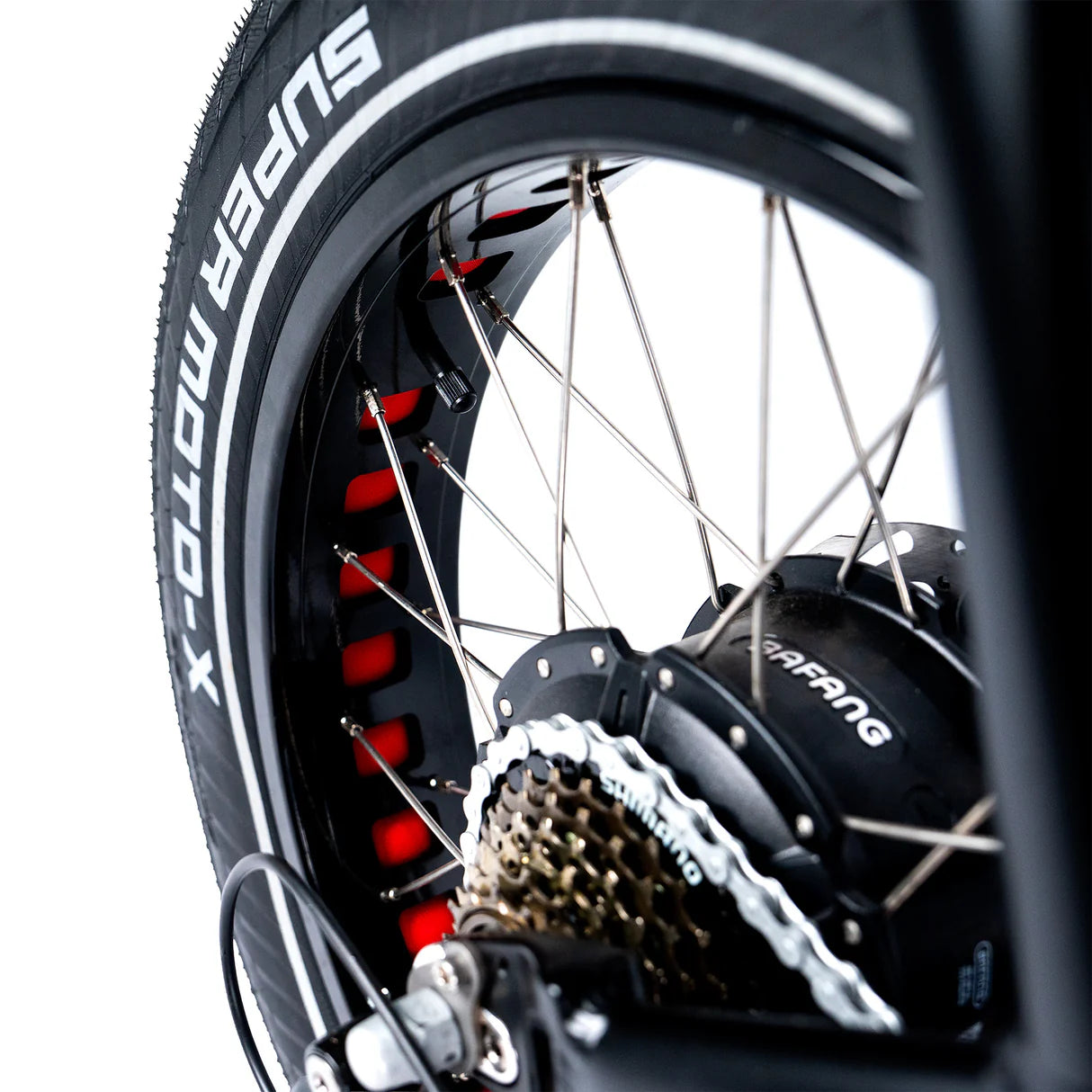

Under the hood, the ACE-X STREET pairs street aesthetics with serious performance. Equipped with a High Torque Bafang Rear Hub Motor, Shimano 7-Speed Derailleur and Tektro Hydraulic Disc Brakes, this bike is ready to tackle any urban challenge. The 20x4” Schwalbe Supermoto tyres offer street-optimised grip and stability, while the Custom Master Control Unit delivers smooth and responsive power.

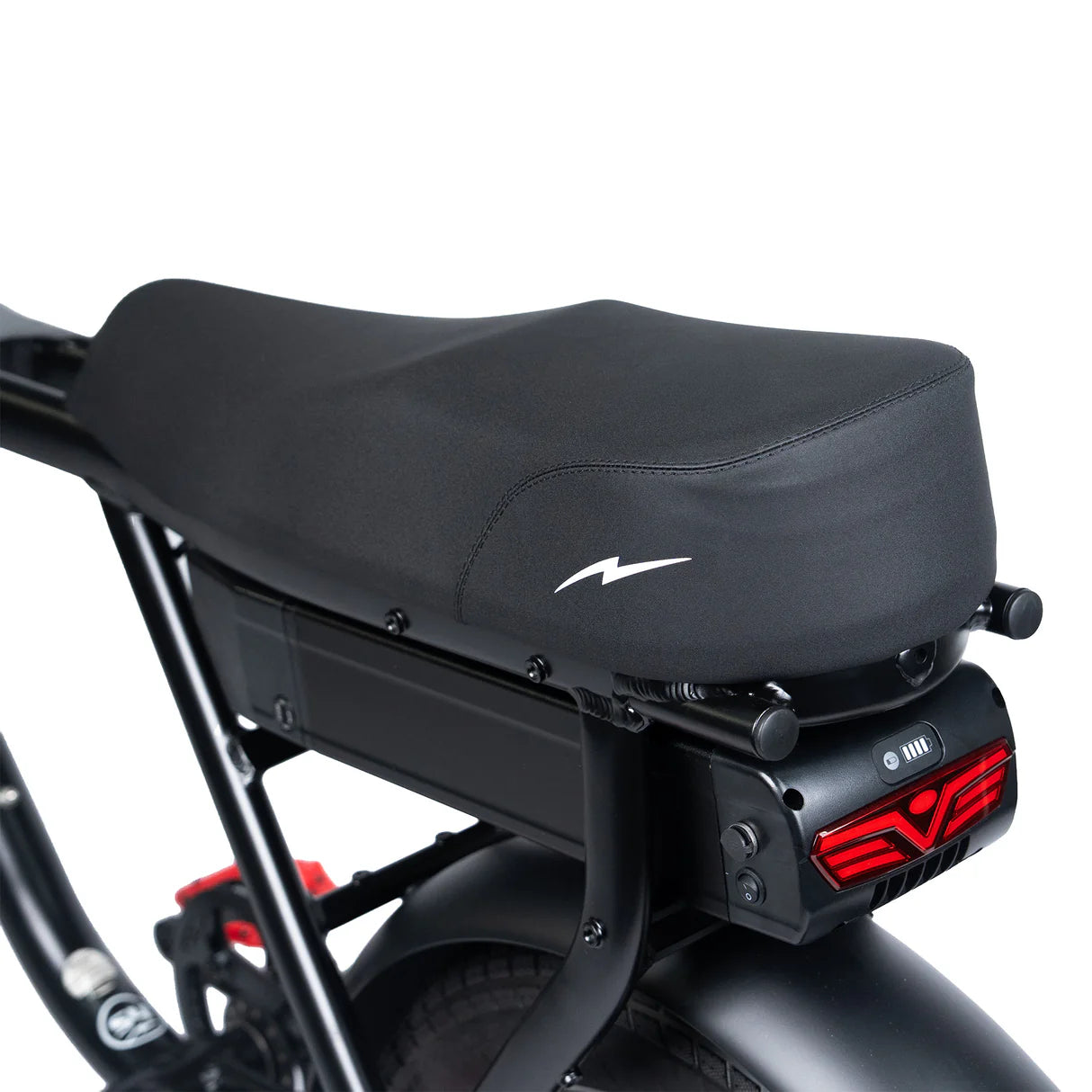

Designed for comfort and convenience, the spacious dual seat accommodates two riders, and the removable Samsung Battery provides up to 60km of range per charge. Add the Off-Road Throttle Kit for an extra layer of fun on your daily rides.
If you want an electric bike that combines power, performance and standout street style, the ACE-X STREET is your ultimate ride.
🚴 Make a statement. Own the street. Ride the ACE-X STREET. ⚡🎨
Explore the Range of Options & Accessories for your new ACE Bike or speak to our Friendly Team for personalised customisation options.
Specifications
ACE SERIES 4
Range
Ace Mini Models 40km+
Ace Standard Models 60km+
Ace Plus/Cargo Models 80km+
Battery
Ace Mini 48V / 480Wh, 10AH
Standard 52V / 780Wh, 15AH
Plus/Cargo 52V / 1,040Wh, 20AH
Samsung Premium 21700 Lithium cells
Battery is removable and can be charged in bike or separately.
Motor Drive
All Models Bafang Rear Hub 250W High Torque Motor
Ace Mini & Standard 65N.m
Ace Plus+ & Cargo 80N.m
All Models Restricted to 25km/h
Controller
Ampd Bro's Custom – Best-in-class power density and modern motor control algorithms.
Ace Mini & Standard Rated to 500W / Peak 750W+
Ace Plus/Cargo Rated to 750W / Peak 1,000W+
Ride Modes
Mode 1 Pedal Assist: Adjustable assist settings from 1-5 (optional 1-3 or 1-9)
Mode 2 Walk Mode: Idles bike up to 6km/h via "-" button
Mode 3 Throttle Mode: When optioned with Off-Road Throttle Kit
Features
Hill Ability Up to 15º / 25% Incline PAS

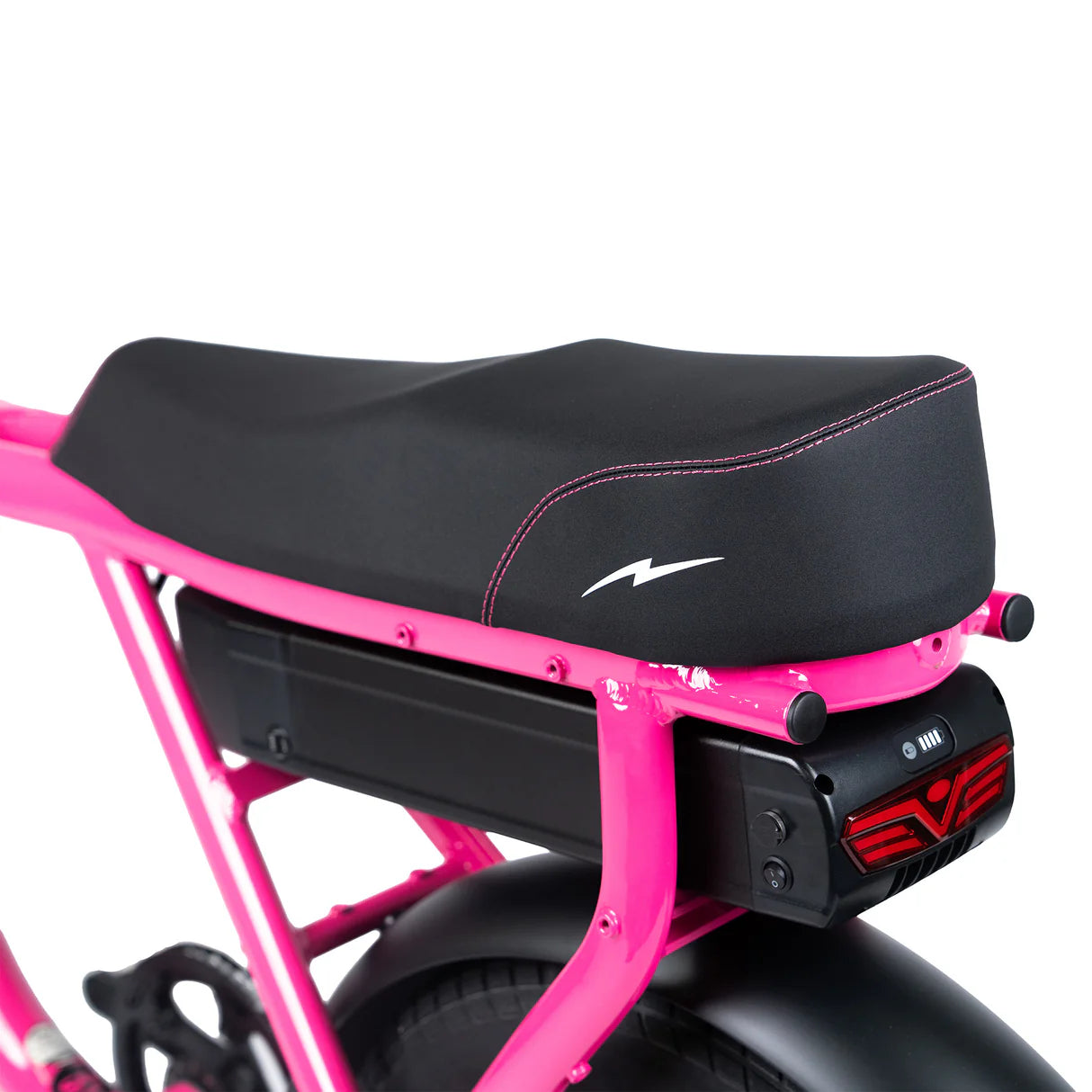

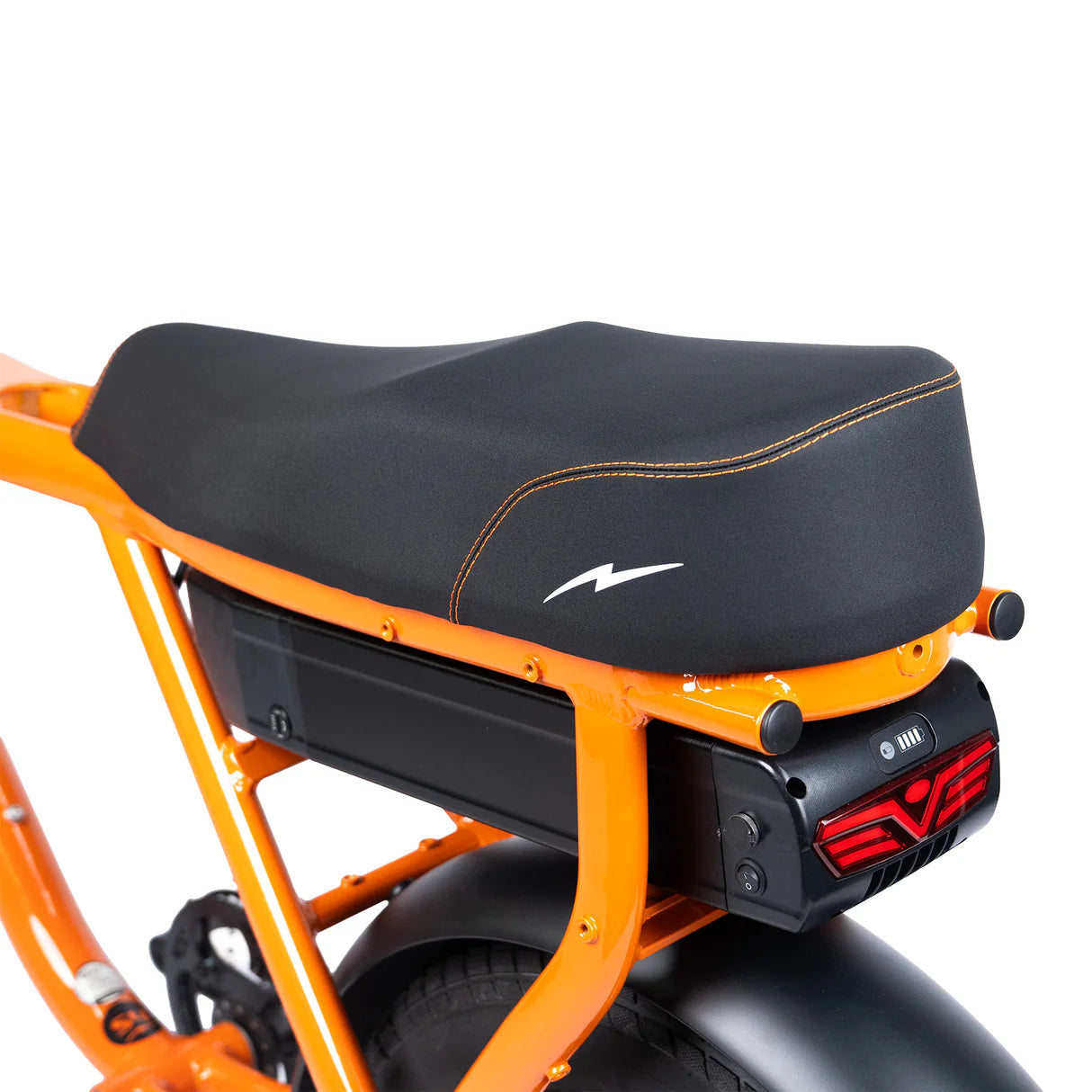

Seat Custom Large Dual Seat
Warranty 2 Years (1 Year on Batteries)
Lights Front LED with DRL
Lights Rear LED Brake Light integrated into battery
Grips Black Velo Wide Comfort
Bell Yes
Brakes
Ace Mini Ampd Bros Hydraulic 160mm Disc
Ace Standard/Plus/Cargo Tektro Hydraulic 180mm Disc
E-Brakes Yes Motor Safety Cut Off
Display
Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc
Drivetrain
Ace Mini Single Fixed Speed
All Other Models Shimano 7 Speed with Rapid Fire Micro Shifter
Derailleur Shimano Altus
Pedals Wellgo Alloy – Black
Chain KMC Z Series High Performance & Rust Resistant
Construction

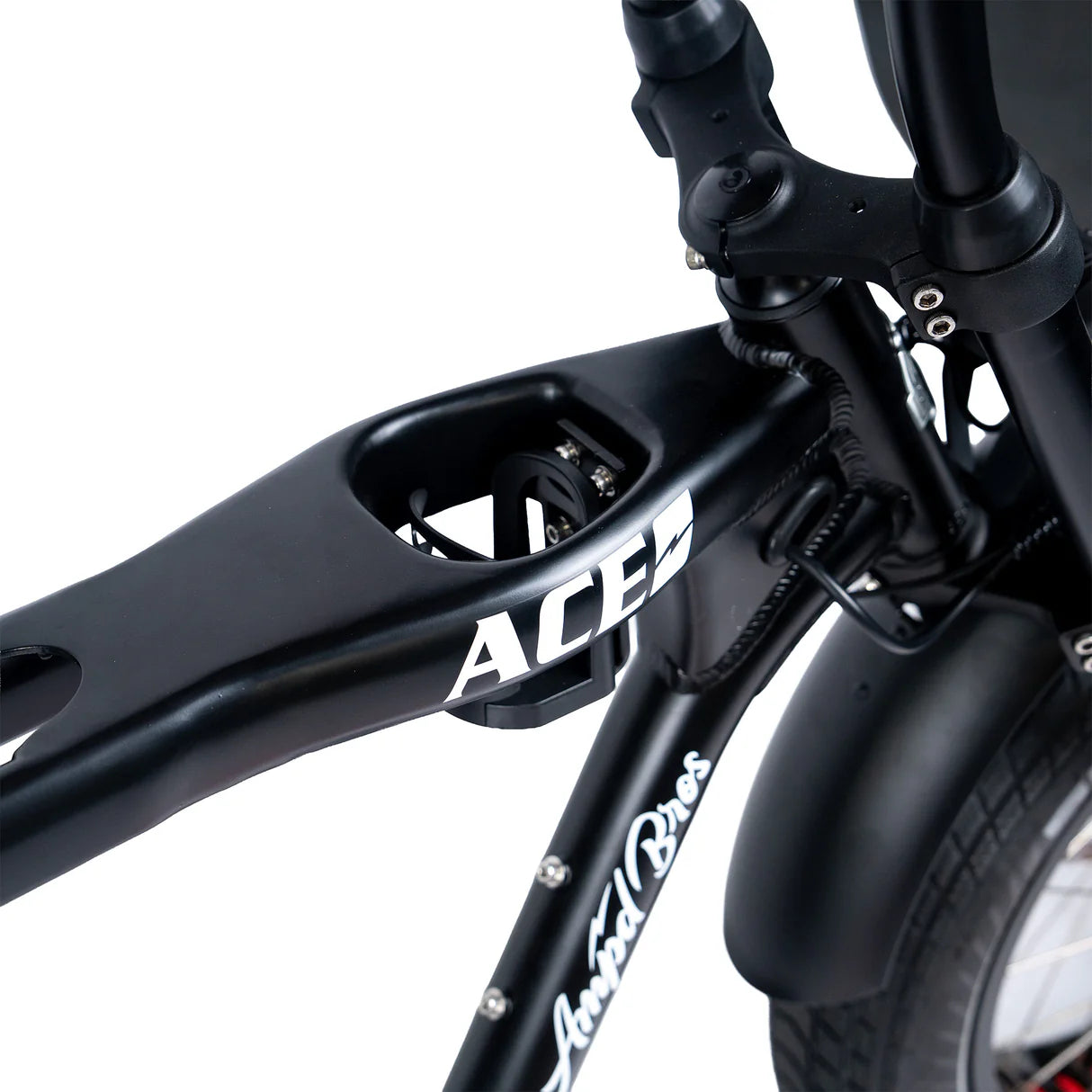

Frame Aluminium – "X" Step Over or "S" Step Through Designs
Handlebars Aluminium Motorcycle Inspired with Adjustable Height
Fenders Matte Black Aluminium
Suspension
Mini & Standard Models No Suspension
Plus+ Models Front Custom Tuned Adjustable Fork
Cargo Models Front Independent Suspension Fork
Wheels & Tyres
Ace Mini 16x4.0" Innova Mud Tyres
20x4.0" Kenda Krusade Fat Mud Tyres
Charging
5-6hrs 10Ah Batteries with Standard 2A Charger
7-8hrs 15Ah Batteries with Standard 2A Charger
9-10hrs 20Ah Batteries with Standard 3A Charger
Optional 5A Fast Charger Available
Dimensions
Overall Length 1,750 mm
Handlebar Height 1,140 - 1,190 mm
Handlebar Width 660 mm
Seat Height 810 mm
Seat Length 600 mm
Ground Clearance 270 mm
Wheel Base 1,160 mm
Rider Height Ideal up to 200cm
Ace Mini Dimensions
Overall Length 1,470 mm
Handlebar Height 1,040 mm
Handlebar Width 660 mm
Seat Height 770 mm
Seat Length 370 mm
Ground Clearance 190 mm
Wheel Base 990 mm
Rider Height Ideal up to 170cm
Weights
10Ah Battery 3.2kg
15Ah Battery 4.34kg
20Ah Battery 5.12kg
Standard ACE + Battery 32.3kg
ACE Plus+ Battery 36kg
ACE Mini + Battery 29kg
ACE Cargo + Battery 40.5kg
Max Loading 180kg
ACE Mini Max Loading 100kg
Inclusions
Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range may vary based on load, motor use, throttle/PAS, terrain, weather and other factors.
